Epson EB-760W Laser Projector 4100 Lumens WXGA
Model: EB-760W

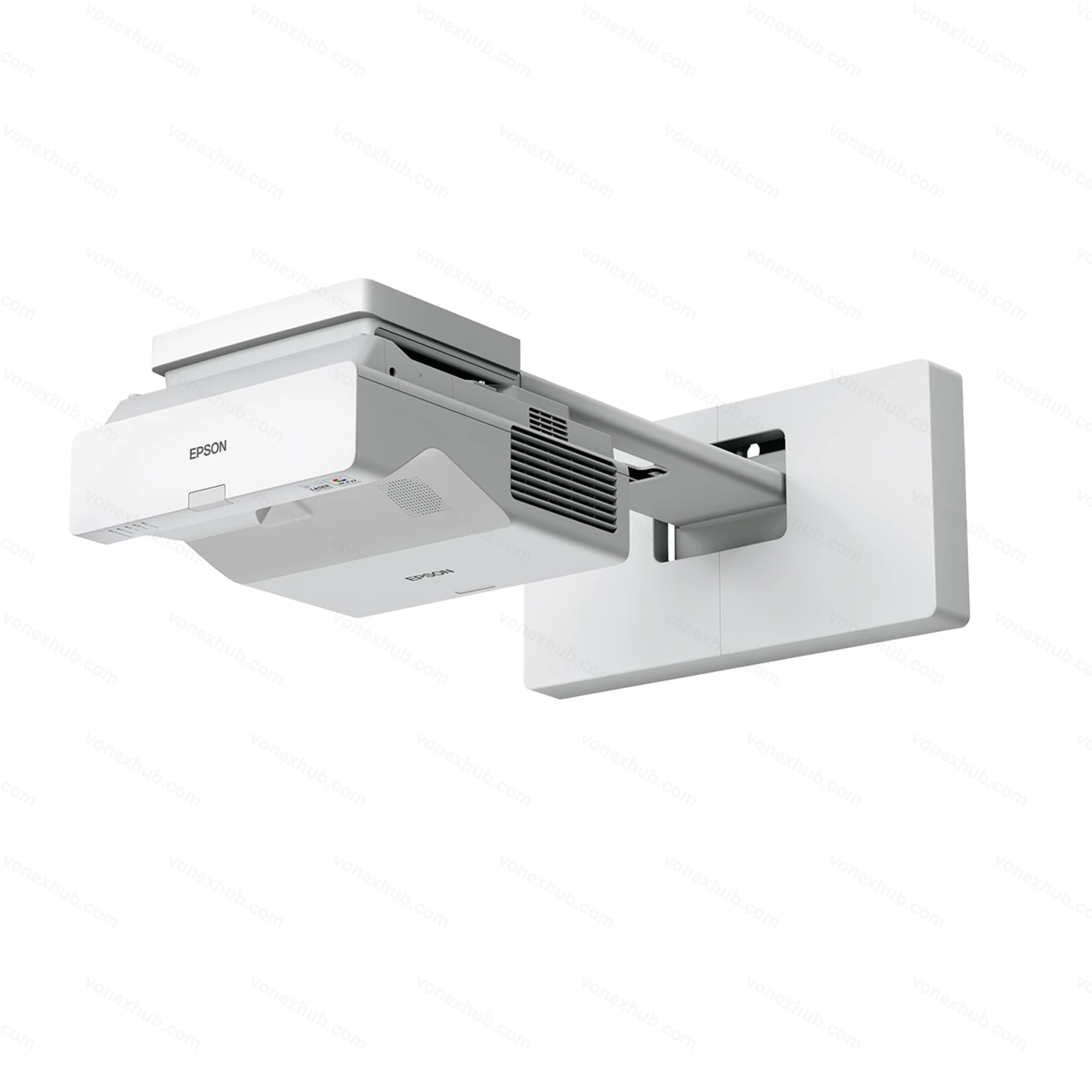

Note: This unit is supplied without the Ultra Short Throw wall mount. The ELPMB62 wall mount is available as an optional add-on, purchased separately.
Warranty: 36 months On-Site Service
View full Epson warranty terms
Quick Specs:
- Brightness: 4,100 lm Colour Light Output / 4,100 lm White Light Output
- Resolution: WXGA (16:10)
- Projection Technology: 3LCD (RGB liquid crystal shutter projection system)
- Contrast Ratio: Over 5,000,000:1
- Light Source: Laser Diode, 20,000 hours (Normal/Quiet) / 30,000 hours (Extended)
- Weight: Approx. 6kg
Epson EB-760W Overview
The Epson EB-760W will change the way you think about classroom displays. Delivering 4,100 lumens of color and white brightness and a high-quality 16:10 WXGA display up to 150″—more than three times larger than a 75″ flat panel—this ultra short throw laser display encourages engagement with large, bright and easy-to-read images from nearly anywhere in the classroom.
Engineered for reliability, the Epson EB-760W has a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace—ever.
It also features wireless connectivity from PCs, Mac® computers, Chromebooks, and Android™ and iOS® devices, as well as convenient split screen functionality, making it easy for teachers and students to wirelessly display up to four screens simultaneously.
With the ability to display on virtually any wall, the feature-rich EB-760W allows teachers to maintain valuable whiteboard space while delivering stunning images that engage and inspire young learners.
Looking for Full HD resolution in the same ultra short throw form factor? See the Epson EB-770F, which offers 1080p resolution in the same compact ultra short throw design as the EB-760W.
Epson EB-760W Key Features
Experience Vivid and Lifelike Images
Using Epson’s very own original designed fixed phosphor unit, coupled with the innovative optimized design, the projector is now more compact yet images remain bright and sharp. Thanks to the new heatsink design, the projector has efficient heat conductivity, resulting in improved heat resistance, all while delivering high-quality vivid images.
Large Screen Size – Easy to See
Creating a large screen environment that can be seen clearly in presentations and classes, project images large enough for everyone in the room to read and maximize productivity. Laser projector with affordable price that looks clear even with the room lights on.
Connect up to 50 Devices
Free downloadable Epson iProjection™ software makes it easy to cast up to 4 devices at a time wirelessly from Chromebooks, iOS® and Android™ devices, Mac® computers and PCs; with moderator feature, teachers never lose control of the displayed content.
Brilliantly Rich, Crystal-Clear Detail
With excellent contrast ratio of over 5,000,000:1, the Epson EB-760W delivers well-defined image to you – whether it is numbers, pictures, graphs or videos. It’s all about seeing the little details in a better light.
Epson EB-760W Specifications
Projection Technology
RGB liquid crystal shutter projection system
Brightness
White Light Output (Normal / Extended): 4,100lm / 2,800lm
Colour Light Output: 4,100lm
Contrast Ratio: Over 5,000,000 : 1

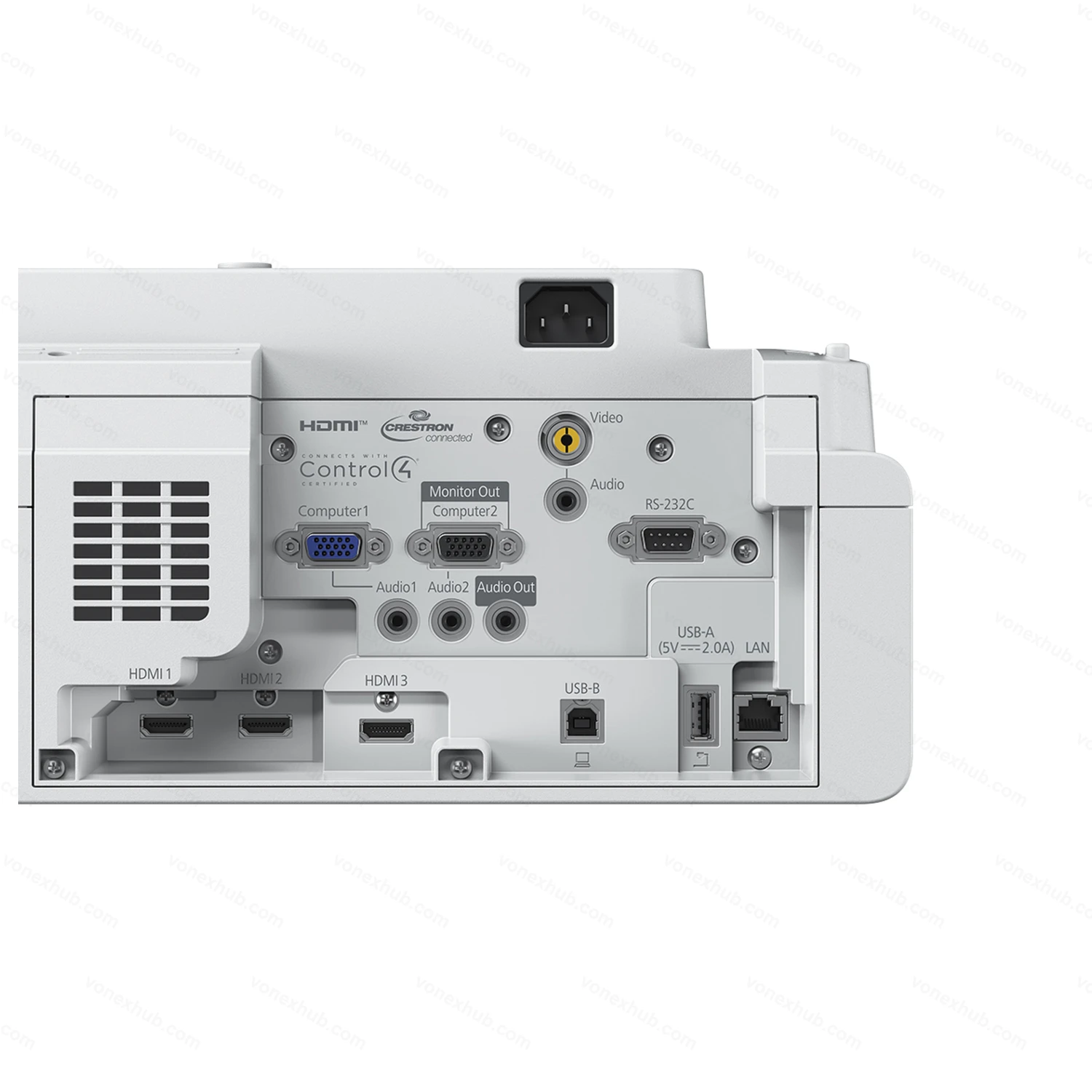

Connectivity
Analog Input: Computer In: 2, Composite: 1
Digital Input: HDMI In: 3 (HDCP 2.3)
Analog Output: Computer Out: 1 (Share with Computer2)
Audio Input: Audio In: 3 (Stereo Mini)
Audio Output: Audio Out: 1 (Stereo Mini)
Mic I/O: Mic In: 1 (Stereo Mini)
Control I/O: RS232C: 1 (D-sub 9pin), Interactive Sync: 1 (Stereo Mini), Finger Touch Unit Control: 1 (Mini DIN 8pin)
USB I/O: Type A: 2 (1 Side: For PC Free, FW Update, Copy OSD Settings; 1 Rear: For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply), Type B: 2 (For FW Update, Copy OSD Settings, USB Display)
Network I/O: Wired LAN: 1 (RJ45), Wireless LAN: 1 (Built-in and Optional)
Geometric Correction
Vertical/Horizontal Keystone: ±3° / ±3°
Quick Corner: Yes (Auto / Manual)
Operating Temperature
0 – 2,286 m (0 – 7,500 ft): 0°C – 40°C (32°F – 104°F); 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 – 35°C (32°F – 95°F); 20%-80% Humidity, No Condensation
Operating Altitude
Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)
Start-Up Period
Less than 10 seconds (Epson Logo)
Quick Start-Up: Less than 5 seconds (Display)
Cool Down Period
Instant Off
Internal Speaker(s)
Sound Output: 16W Mono
Air Filter
Type: Electrostatic Filter
Maintenance Cycle (Normal / Extended): 12,000 hours / 20,000 hours
Fan Noise
Fan Noise (Normal / Eco): 37dB / 27dB
Dimension Excluding Feet
D x W x H: 395 x 356 x 133mm
Noise Reduction: Yes
Super-Resolution: Yes
Detail Enhancement: Yes
Wireless Specification (In-built wireless LAN and Screen Mirroring)
Supported Speed for Each Mode: Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps, IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72.2Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps; Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72.2Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps
Supported Mode: Infrastructure, Access Point (Wi-Fi Direct)
Supported Security Type: Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast; Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Power
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Ultra Short Throw Lens
Weight: Approx. 6kg
Power Consumption (220-240V)
Lamp (Normal / Extended): 263W / 199W
Standby (Network On / Off): 2.0W / 0.5W
Direct Power On / Off
Yes
Specifications of Main Parts
LCD: Size: 0.59″ (C2Fine), Resolution: WXGA
Light Source: Type: Laser Diode, Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs
Projection Lens: Type: No Optical Zoom / Focus (Manual), F-Number: 1.60, Focal Length: 3.7mm, Zoom Ratio: 1 – 1.35 (Digital Zoom), Throw Ratio: 0.27 – 0.37
Screen Size (Projected Distance): Standard: 74.3″ screen 43.3cm
Zoom (Wide):
53″ to 132″ (33.7 – 92.8cm) @ 4:3
58″ to 146″ (33.7 – 92.8cm) @ 16:9
60″ to 150″ (33.7 – 92.8cm) @ 16:10
Zoom (Wide) (With Interactive Function):
52.6″ to 100″ (33.7 – 60.1cm) @ 16:9
57.9″ to 100″ (33.7 – 68.7cm) @ 16:10
59.5″ to 100″ (33.7 – 61.9cm) @ 4:3
