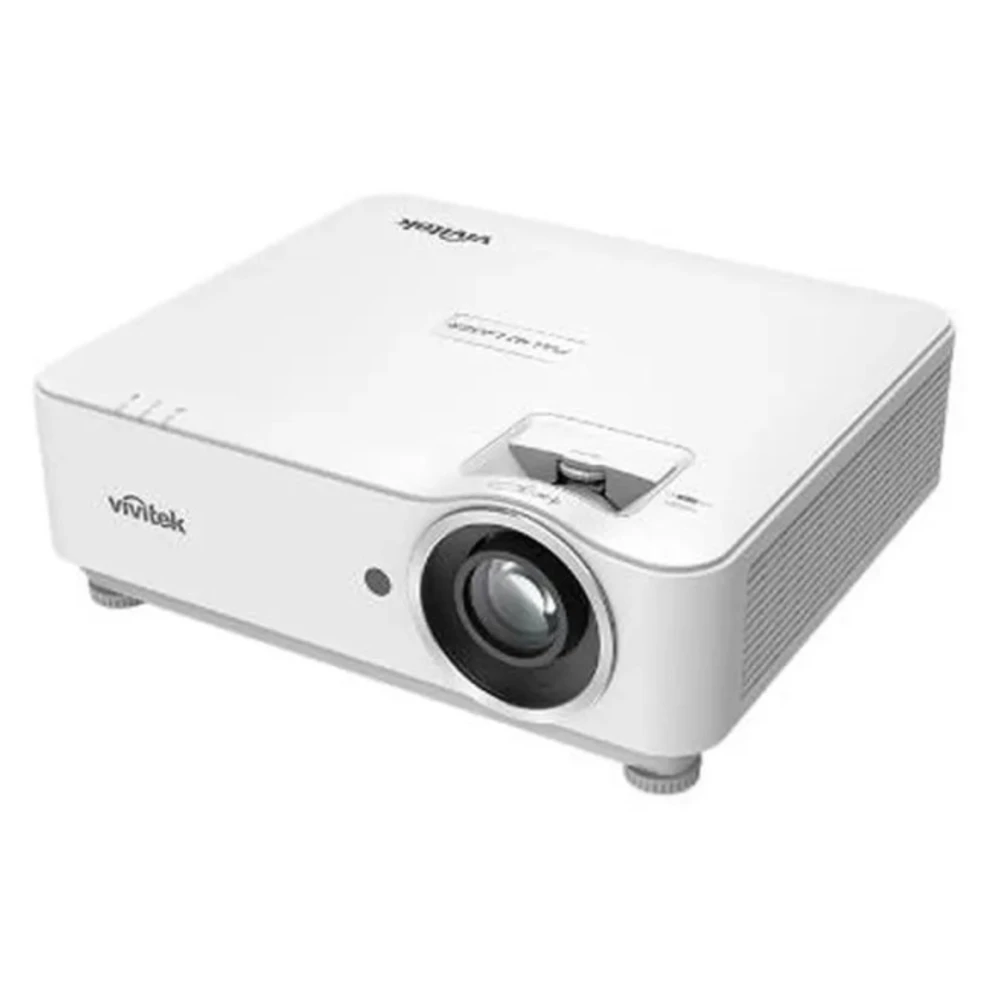

Vivitek DW3651Z Laser DLP Projector 5000 Lumens WXGA
Model: DW3651Z
3 years warranty, laser 3 years or 20,000 hours
Download Datasheet
Quick Specs:
5,000 ANSI Lumens
WXGA, DLP, Laser
Contrast ratio 3,000,000:1
Light source life 20,000 hours (Normal) / 30,000 hours (Eco)
Weight 7 Kg
Compact laser projection for meeting rooms and classrooms
The DW3651Z is a compact, cost-effective laser projector designed for meeting rooms and classrooms that need bright, reliable imaging without the upkeep of a lamp-based system. Integrated DLP® DarkChip3 and BrilliantColor technology together ensure brilliant pictures, with optimal black levels and vivid, colorful images. The solid-state laser phosphor light source is rated for up to 20,000 hours of operation, supporting continuous 24/7 use with minimal maintenance. Vertical and horizontal keystone correction plus 4-corner geometric adjustment give flexible installation in almost any room, and the bundled PJ-Control Tool lets IT staff monitor and manage multiple projectors over the network.
Key Features
- DLP® DarkChip3™ and BrilliantColor™ technology for brilliant pictures with optimal black levels and a contrast ratio of 3,000,000:1
- Up to 5,000 ANSI Lumens of brightness for sharp, bright images in any environment
- WXGA (1,280 x 800) native resolution
- Solid-state laser phosphor light source with a long lifespan of up to 20,000 hours (Normal) / 30,000 hours (Eco mode), supporting 24/7 operation
- Vertical/horizontal keystone correction and 4-corner geometric adjustment for flexible installation
- 1.5x zoom ratio for greater installation convenience and flexibility
- PJ-Control Tool for network-based monitoring and management of multiple projectors
- Built-in 10W speaker with multiple audio-in and audio-out ports
- Kensington® security slot, security bar, and password-protected keypad lock
Specifications
| Projection System |
|
| Native Resolution |
|
| Light Source |
|
| Brightness |
|
| Contrast Ratio |
| 3,000,000:1 (Full On/Off) |
|
| Light Source Life |
| 20,000 hrs (Normal) / 30,000 hrs (Eco) |
|
| Lens Type |
|
| Zoom Ratio |
|
| Lens Throw Ratio |
|
| Image Size (Diagonal) |
|
| Offset (Full Image Height) |
|
| Keystone Correction |
| Vertical / Horizontal, ±30° |
|
| Four Corner Adjustment |
|
| I/O Connection Ports |
| HDMI v1.4 (x2), VGA-In D-Sub (x1), VGA-Out (x1), RS-232 In (x1), USB Type-A Power Only 5V/1.5A (x1), USB mini-B Service (x1), RJ45 (10/100Mbps) (x1), Audio-In Mini-Jack (x1), Audio-Out Mini-Jack (x1) |
|
| Speaker |
|
| Power |
| Supply: AC 100-240V, 50/60Hz. Consumption: 340W (Normal) / 270W (Eco) ±5%. Standby: <0.5W (Eco) / <2W (On by LAN) |
|
| Noise Level |
| 35dB (Normal) / 33dB (Eco) ±5% |
|
| Dimensions (W x D x H) |
| 395 x 340 x 135mm (15.5″ x 13.4″ x 5.3″) (without adjustable foot) |
|
| Weight |
|
| Security |
| Kensington® Security Slot, Security Bar, Password-Protected Keypad Lock |
|
