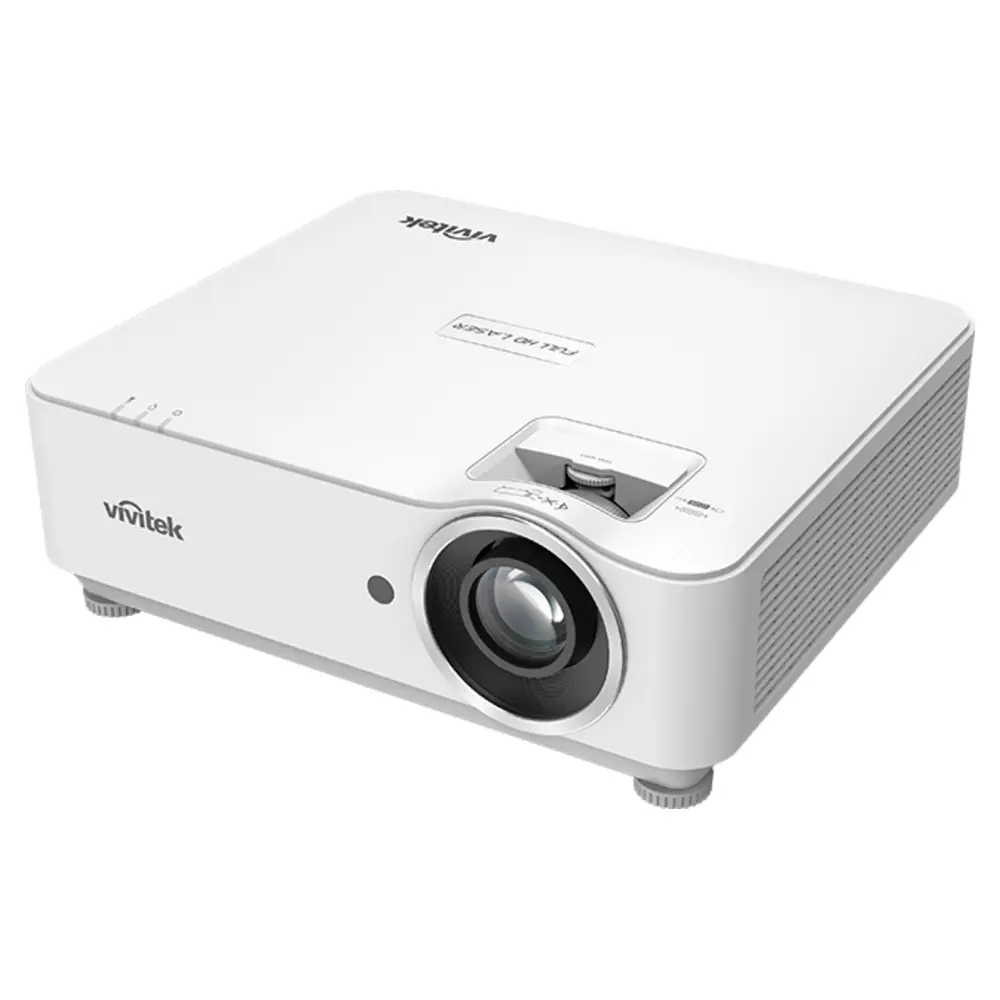

Vivitek DU3661Z Laser DLP Projector 5000 Lumens WUXGA
Model: DU3661Z
3 years warranty, laser 3 years or 20,000 hours
Download Datasheet
Quick Specs:
5,000 ANSI Lumens
WUXGA (1920 x 1200), DLP, Laser
Contrast ratio 3,000,000:1
Light source life 20,000 hours (Normal) / 30,000 hours (Eco)
Weight 7 Kg
Compact laser projector for meeting rooms
Weighing only 7kg, the DU3661Z is a compact laser projector offering up to 5,000 lumens of brightness, designed for meeting room installation without unnecessary bulk. It comes equipped with up to three HDMI ports and HDBaseT connectivity, along with a wide 1.5x zoom ratio and vertical lens shift for easy installation convenience and flexibility.
Key Features
- Up to 5,000 ANSI Lumens of brightness with a 3,000,000:1 contrast ratio for vivid, high-impact images
- 1.5X big zoom optical lens with a throw ratio of 1.39–2.09:1 and horizontal/vertical lens shift for flexible installation distances
- PJ-Control software for managing and controlling multiple Vivitek projectors over a network
- Built-in HDBaseT™ interface for long-distance signal transmission with reduced cabling requirements
- 360° free installation with vertical/horizontal keystone and 4-corner geometric adjustment
- Laser light source rated for 30,000 hours in Eco Mode, supporting continuous 24/7 operation
- IP5X-rated sealed optical engine for protection against dust ingress
- Three HDMI inputs (one with MHL), plus HDBaseT and LAN connectivity
Specifications
| Projection System |
|
| Native Resolution |
|
| Light Source |
|
| Brightness |
|
| Brightness Uniformity |
|
| Contrast Ratio |
| 3,000,000:1 (Full On/Off) |
|
| Light Source Life |
|
| Zoom Ratio |
|
| Lens Throw Ratio |
|
| Offset (Full Image Width) |
|
| Keystone Correction |
| Automatic Horizontal / Vertical |
|
| Four Corner Adjustment |
|

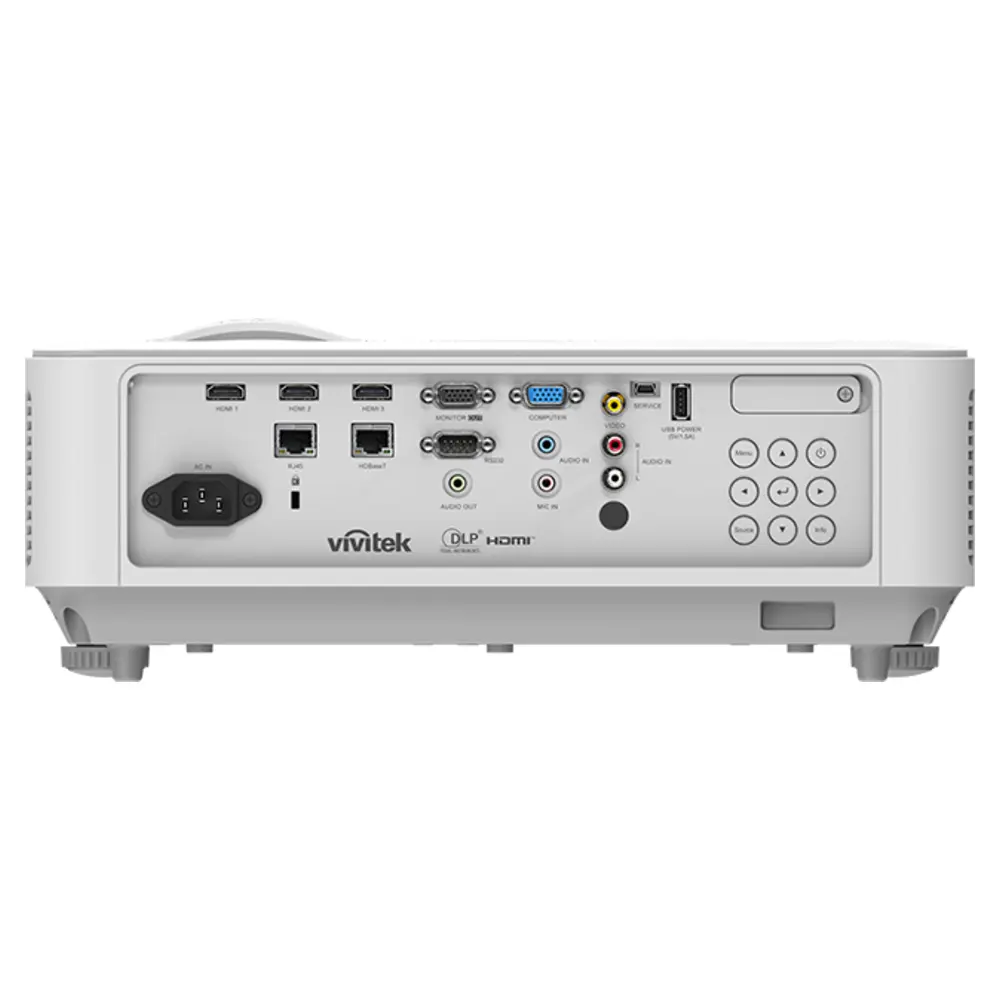

| I/O Connection Ports |
| HDMI 1.4a (x3, one with MHL), VGA-In D-Sub (x1), VGA-Out D-Sub (x1), HDBaseT (x1), LAN (x1), RS-232 In (x1), USB Type A (x1), USB mini-B Service (x1), Audio-In RCA (x1), Audio-In Mini-Jack (x1), MIC-In (x1), Audio-Out Mini-Jack (x1) |
|
| Speaker |
|
| Power |
| Supply: AC 110-240V, 50/60Hz. Consumption: 340W (Normal) / 270W (Eco). Standby: <0.5W (Network Off) / <2.0W (Network On) |
|
| Noise Level |
| 35dB (Normal) / 33dB (Eco) |
|
| Dimensions (W x D x H) |
|
| Weight |
|
| 3D Display |
|
| 24/7 Operation |
|
| Dust Proof |
|
| Operation Orientation |
|
| Operating Environment |
| Temp. 5~40°C / Humidity 10~85% |
|
