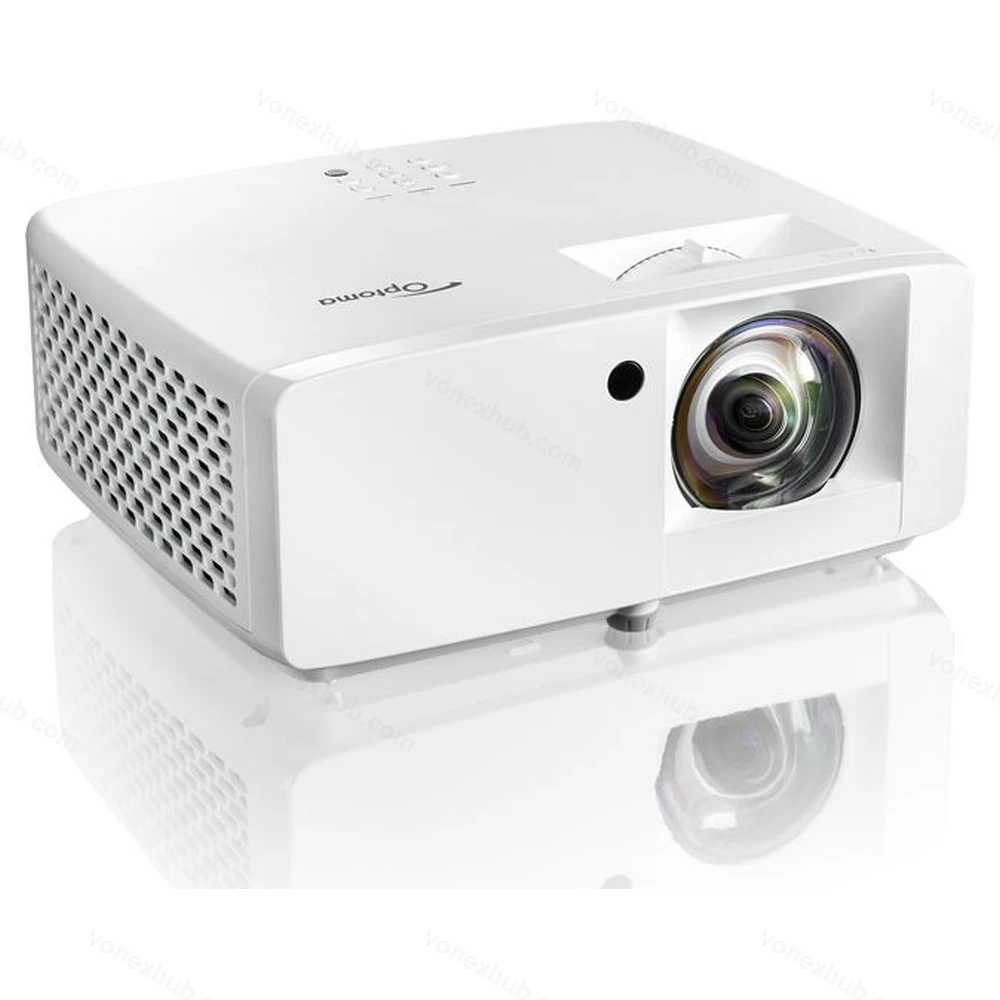

Optoma AZW360ST Laser Short Throw DLP Projector 3800 Lumens WXGA
Model: AZW360ST
Warranty: 3 years
Download the Optoma AZW360ST Datasheet (PDF)
Quick Specs:
- Brightness: 3,800 lumens
- Resolution: WXGA (1280 x 800)
- Contrast Ratio: 300,000:1
- Light Source: DuraCore Laser (30,000 hrs)
- Weight: 3 kg (net)
The Optoma AZW360ST is Optoma’s most compact, hassle-free WXGA DuraCore laser projector to date, with a footprint up to 34% smaller than comparable Optoma models. Built for maintenance-free continuous operation, the Optoma AZW360ST is designed to install in virtually any orientation thanks to its small, lightweight chassis, making it a strong fit for classrooms, meeting rooms, and boardrooms that need a short throw solution without a bulky installation. Buyers who need higher brightness in a similarly compact chassis can also check the standard-throw Optoma AZW500.

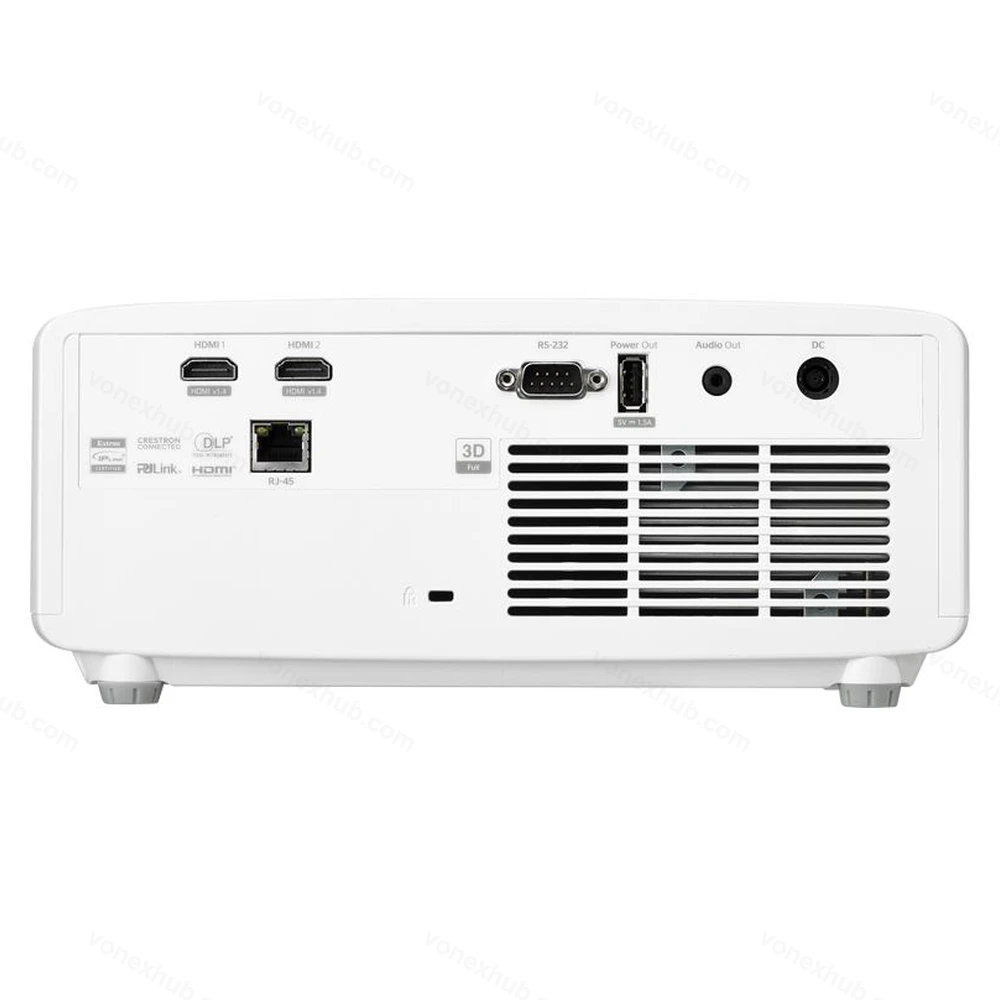

With 3,800 lumens of brightness, native WXGA (1280 x 800) resolution, and a 300,000:1 contrast ratio (2,000,000:1 dynamic), the Optoma AZW360ST keeps text and graphics sharp and legible even with some ambient light in the room. Connectivity covers dual HDMI 1.4b inputs, RS232 and RJ45 for control-system integration, a USB-A power output for streaming dongles, and a built-in 15W speaker so a separate sound system usually isn’t required.
Installation on the Optoma AZW360ST is short throw by design, with a 0.521:1 throw ratio that can project a 100-inch image from just over a metre away, minimising shadows during presentations. The projector supports 360-degree operation and portrait orientation with auto vertical keystone correction, covering ceiling-mount, tabletop, and digital-signage setups without extra hardware. The chassis is also IP6X certified, independently tested for dust resistance in demanding 24/7 environments.
The Optoma AZW360ST’s DuraCore laser light source is rated for 30,000 hours of maintenance-free operation, mercury-free and lamp-free, cutting running costs and eliminating scheduled replacements compared to lamp-based projectors. Optoma states the Optoma AZW360ST consumes up to 47% less power than a comparable lamp-based projector, and the design incorporates post-consumer recycled material along with packaging that’s been reduced by 47% in size for more efficient shipping.
Key Features
Bright WXGA DuraCore Laser Projector
The Optoma AZW360ST pairs 3,800 lumens of brightness with an IP6X-certified optical engine, combining high brightness with sealed construction suitable for demanding environments.
Small Form Factor & Short Throw Lens
A 0.521:1 throw ratio and 360-degree, portrait-capable projection let the Optoma AZW360ST project a 100-inch image from just over a metre away, minimising shadows during presentations.
DuraCore Laser Technology
A 30,000-hour maintenance-free laser light source eliminates the need for lamp replacements and reduces operational downtime on the Optoma AZW360ST.
Built with the Environment in Mind
The Optoma AZW360ST incorporates post-consumer recycled material and uses up to 47% less power than a comparable lamp-based projector at similar capacity.
Mercury-Free Eco-Friendly Design
The laser light source is mercury-free and lamp-free, with higher power conversion efficiency than traditional lamp-based projectors.
Maintenance-Free & Economical
Durable operation for up to 30,000 hours in ECO mode, with 24/7 operation support, eliminates recurring lamp replacement costs on the Optoma AZW360ST.
Optimised Packaging
Package size for the Optoma AZW360ST has been reduced by 47%, allowing more units to be carried per shipping container and cutting per-unit carbon footprint.
Amazing Colour Performance
The Optoma AZW360ST offers reliable colour performance suitable for a range of content and environments, with multiple display modes for graphics and video.
360° & Portrait Projection
Images can be projected over a 360-degree range along the projector’s horizontal axis, and rotated 90 degrees for portrait-orientation digital signage.
Full 3D Capability
The Optoma AZW360ST displays true 3D content from graphics cards, broadcast sources, and 3D media servers.
HDMI CEC Link Device Control
HDMI CEC compatibility lets the Optoma AZW360ST control other CEC-compatible devices’ power state, enabling synchronised power on/off across connected equipment.
Quick Start-Up & Shutdown
Quick start-up and shutdown with minimal cool-down time, plus a pause-projection feature that fully shuts off the light source during breaks in a presentation.
Low Noise Operation
Less than 30 dB in ECO mode keeps the Optoma AZW360ST quiet enough for office and classroom environments.
Optoma AZW360ST Specifications
| Display/Image | |
|---|---|
| Display Technology | DLP™ |
| Resolution | WXGA (1280 x 800) |
| Brightness | 3,800 lumens |
| Contrast Ratio | 300,000:1 |
| Contrast Ratio (dynamic) | 2,000,000:1 |
| Native Aspect Ratio | 16:10 |
| Aspect Ratio (compatible) | 4:3, 16:9, 16:10 |
| Keystone Correction (horizontal) | ±15° |
| Keystone Correction (vertical) | ±15° (auto) |
| Displayable Colours | 1,073.4 million |
| Uniformity | 80% |
| Screen Size | 0.76m ~ 7.62m (30″ ~ 300″ diagonal) |
| Lamp Info | |
| Light Source Type | Laser |
| Laser Life | 30,000 hours |
| Optical | |
| Throw Ratio | 0.521:1 |
| Projection Distance | 0.4m ~ 3.2m |
| Focal Length | 7.51 |
| Native Offset | 115% |
| Connectivity | |
| Inputs | 2x HDMI 1.4b (3D support) |
| Outputs | 1x Audio 3.5mm, 1x USB-A Power (5V/1.5A) |
| Control | 1x RS232, 1x RJ45 |
| General | |
| Noise Level (min) | 27 dB |
| Noise Level (ECO) | <30 dB |
| PC Compatibility | FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| 3D Compatibility | DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D (720p50/60) |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock, Password protected interface |
| IP Rating | IP6X |
| OSD Languages | 25 languages |
| Operating Conditions | 0°C ~ 40°C, max humidity 80%, max altitude 2,500m |
| Speaker Count | 1 |
| Watts Per Speaker | 15W |
| 24/7 Operation | Yes |
| 360° Operation | Yes |
| Power | |
| Power Supply | External 180W adapter, AC 100~240V 50/60Hz to DC 19V |
| Power Consumption (standby) | <0.5W |
| Power Consumption (min) | 89W |
| Power Consumption (max) | 140W |
| Weight and Dimensions | |
| Dimensions (W x D x H) | 274 x 216 x 114 mm |
| Gross Weight | 4.2 kg |
| Net Weight | 3 kg |
