Optoma AZW500 Laser DLP Projector 5200 Lumens WXGA
Model: AZW500
Warranty: 3 years
Download the Optoma AZW500 Datasheet (PDF)
Quick Specs:
- Brightness: 5,200 lumens
- Resolution: WXGA (1280 x 800)
- Contrast Ratio: 300,000:1
- Light Source: DuraCore Laser (30,000 hrs)
- Weight: 2.9 kg (net)
The Optoma AZW500 is one of Optoma’s most compact and hassle-free WXGA DuraCore laser projectors to date, up to 34% smaller than previous Optoma models in the same class. Designed for maintenance-free continuous operation, the Optoma AZW500 delivers powerful image performance with flexible installation features and extensive connectivity in a sleek, compact form factor suited to classroom and meeting room installations.

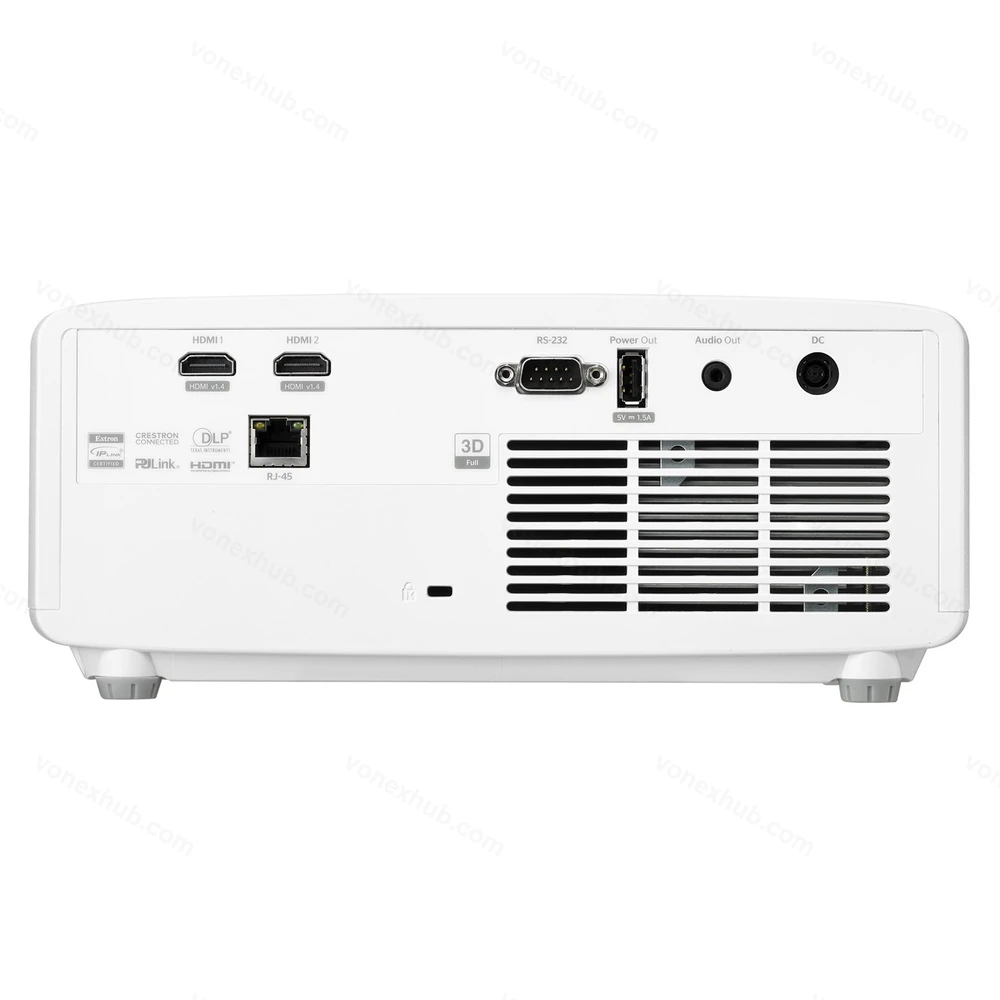

With 5,200 lumens of brightness, native WXGA (1280 x 800) resolution, and a 300,000:1 contrast ratio (3,000,000:1 dynamic), the Optoma AZW500 keeps presentations sharp and legible even in rooms with ambient light. Connectivity covers dual HDMI 1.4a inputs, RS232 and RJ45 for control-system integration, a USB-A power output for streaming dongles, and a built-in 15W speaker so a separate sound system isn’t needed in most rooms.
Installation on the Optoma AZW500 is flexible thanks to a 1.3x manual zoom lens, a 1.187:1–1.544:1 throw ratio, and support for 360-degree and portrait orientation projection with four-corner keystone correction, covering ceiling-mount, rear-shoot, and tabletop setups without extra hardware. The chassis is also IP6X certified, independently tested to IEC standard 60529 for dust resistance in demanding 24/7 environments.
The Optoma AZW500’s DuraCore laser light source is rated for 30,000 hours of maintenance-free operation without mercury, cutting running costs and eliminating scheduled lamp changes compared to lamp-based alternatives. An external power supply improves reliability and portability, and the chassis is built with up to 50% post-consumer recycled plastics, with packaging using up to 97% recyclable materials.
Key Features
Bright WXGA DuraCore Laser Projector
The Optoma AZW500 pairs 5,200 lumens of brightness with an IP6X-certified optical engine, designed for maintenance-free continuous operation with flexible installation and extensive connectivity.
Compact for Easy Installation
A 1.3x manual zoom lens gives multiple placement options, and the Optoma AZW500 supports 360-degree projection, portrait orientation, and four-corner keystone correction for versatile mounting scenarios.
Reduced Power Consumption for Long Lifespan
DuraCore laser technology delivers a 30,000-hour maintenance-free laser light source without mercury, reducing carbon footprint and operational costs compared to lamp-based alternatives.
External Power Supply
A separate power adapter offers enhanced reliability, portability, and energy efficiency compared to an integrated power solution.
Amazing Colour Performance
The Optoma AZW500 provides reliable colour rendering with sRGB accuracy and vibrant presentation modes suited to graphics and video content across various environments.
Mercury-Free Eco-Friendly Design
The chassis is made with up to 50% post-consumer recycled (PCR) plastics, and packaging contains up to 97% recyclable materials. The compact design also allows more units to be carried per shipping container for more efficient logistics.
Dual HDMI Inputs
Two HDMI inputs let you connect multiple devices — set-top boxes, laptops, Blu-ray players, streaming devices — without constantly unplugging cables, plus HDMI CEC compatibility for synchronised power control.
IP6X Dust Resistance
The Optoma AZW500 is independently tested and certified to IEC standard 60529, giving it industry-leading durability for challenging 24/7 environments.
Full 3D Capability
The Optoma AZW500 supports true 3D content from graphics cards, broadcasting, and media servers.
Quick Start/Shutdown
Quick start-up and shutdown gets the Optoma AZW500 to full brightness fast, with minimal cool-down time and a pause-projection feature for interruptions.
Low Noise Operation
Less than 30 dB in ECO mode keeps the Optoma AZW500 quiet enough for office and classroom environments.
Integrated Speaker
A built-in 15W speaker eliminates the need for external audio equipment in most rooms.
Optoma Management Suite Integration
The Optoma AZW500 works with Optoma’s remote monitoring and control platform, enabling real-time performance diagnostics, alert broadcasting, scheduling, and reduced energy consumption across a fleet of projectors.
Optoma AZW500 Specifications
| Display/Image | |
|---|---|
| Display Technology | DLP™ |
| Resolution | WXGA (1280 x 800) |
| Brightness | 5,200 lumens |
| Contrast Ratio | 300,000:1 |
| Contrast Ratio (dynamic) | 3,000,000:1 |
| Native Aspect Ratio | 16:10 |
| Aspect Ratio (compatible) | 4:3, 16:9, 16:10 |
| Keystone Correction (horizontal) | 30° |
| Keystone Correction (vertical) | 30° |
| Displayable Colours | 1,073.4 million |
| Uniformity | 75% |
| Lamp Info | |
| Light Source Type | Laser |
| Laser Life | 30,000 hours |
| Optical | |
| Throw Ratio | 1.187:1 ~ 1.544:1 |
| Projection Distance | 1.2m ~ 7.7m |
| Zoom | 1.3x Manual |
| Focal Length | 16.90mm ~ 21.61mm |
| Native Offset | 116% (±5%) |
| Connectivity | |
| Inputs | 2x HDMI 1.4a (3D support) |
| Outputs | 1x Audio 3.5mm, 1x USB-A Power (1.5A) |
| Control | 1x RS232, 1x RJ45 |
| General | |
| Noise Level (min) | 29 dB |
| Noise Level (max) | 31 dB |
| PC Compatibility | FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| 3D Compatibility | DLP 3D; PC frame sequential 120Hz 3D, Blu-ray compatible |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock, Password protected interface |
| IP Rating | IP6X |
| OSD Languages | 25 languages, including English, French, German, Spanish, Japanese, Simplified & Traditional Chinese |
| Operating Conditions | 0°C ~ 40°C, max humidity 80%, max altitude 2,500m |
| Remote Control | Card style |
| Speaker Count | 1 |
| Watts Per Speaker | 15W |
| 24/7 Operation | Yes |
| 360° Operation | Yes |
| Power | |
| Power Supply | External, 100V ~ 240V, 50-60Hz |
| Power Consumption (standby) | <0.5W |
| Power Consumption (min) | 160W |
| Power Consumption (max) | 258.75W |
| Weight and Dimensions | |
| Dimensions (W x D x H) | 274 x 216 x 114 mm |
| Gross Weight | 4.5 kg |
| Net Weight | 2.9 kg |
