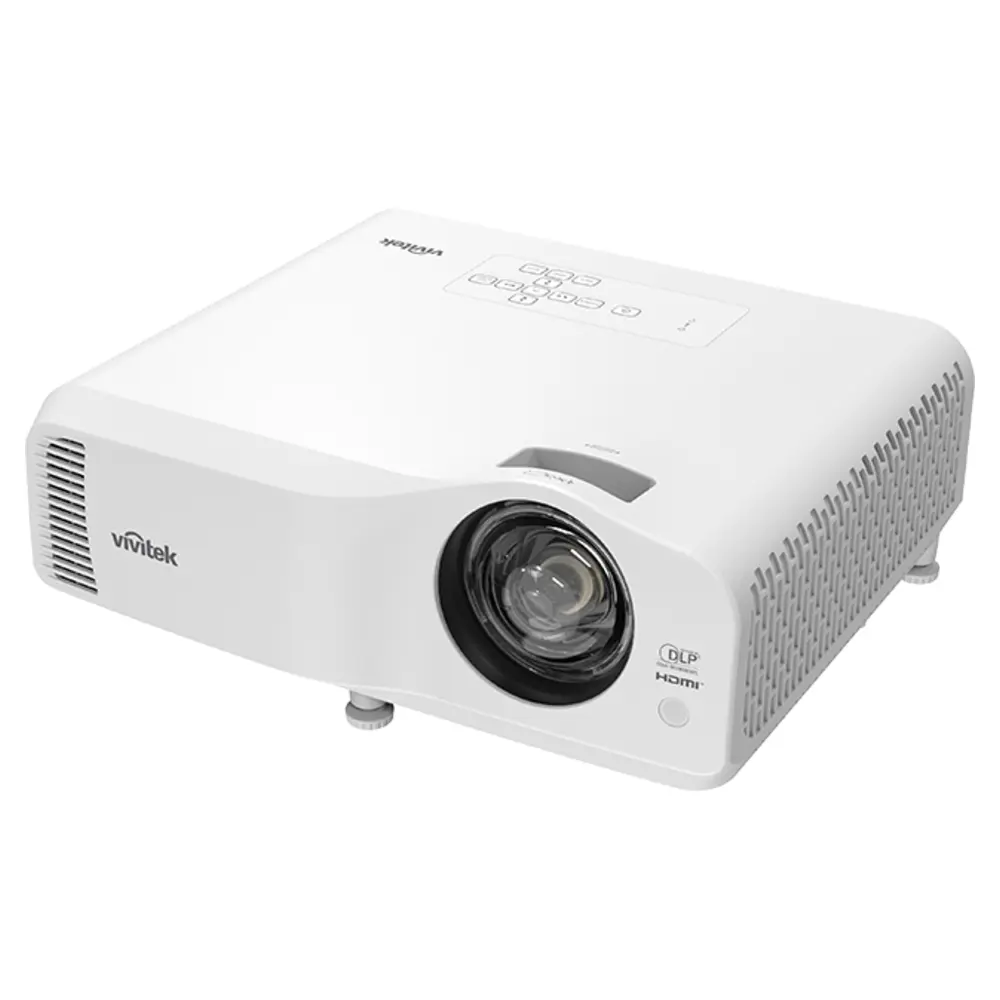

Vivitek DH2360Z-ST Short Throw Laser Projector

Vivitek DH2360Z-ST Short Throw Laser DLP Projector 3600 Lumens 1080p

Name: Vivitek DH2360Z-ST Short Throw Laser DLP Projector 3600 Lumens 1080p - VonexHub Singapore
Brand: Vivitek
SKU: DH2360Z-ST
Price: 1699.00 SGD
Availability: InStock

$1,699.00

Vivitek DH2360Z-ST is a cost-effective, laser-powered short throw projector weighing just 4.5kg, delivering 3,600 ANSI lumens and a 3,000,000:1 contrast ratio with a 0.48:1 throw ratio for large images from a short distance. Built on DLP® DarkChip3™ and BrilliantColor™ technology, it supports HDR10 and 4K UHD input signals via dual HDMI 2.0 ports, with a laser light source rated for 20,000 hours of operation in Normal mode.

SKU: DH2360Z-ST Categories: Education & Business, Short Throw Tags: 1080p, Laser, Short Throw Brand: Vivitek

Vivitek DH2360Z-ST Short Throw Laser DLP Projector 3600 Lumens 1080p
Model: DH2360Z-ST

3 years warranty, laser 3 years or 20,000 hours

Download Datasheet

Quick Specs:

3,600 ANSI Lumens
1080p (1920 x 1080), DLP
Contrast ratio 3,000,000:1 (Full On/Off)
Laser light source, 20,000 hrs (Normal)
Throw ratio 0.48:1 short throw, 4 corner adjustment
Weight 4.5 Kg

Cost-Effective Short Throw Laser Projector

The Vivitek DH2360Z-ST is a cost-effective, laser-powered short throw projector weighing just 4.5kg, built for classrooms and meeting rooms that need bright, reliable images without the ongoing maintenance costs of a lamp-based unit. It delivers 3,600 ANSI lumens of brightness and a 3,000,000:1 contrast ratio, integrating DLP® DarkChip3™ and BrilliantColor™ technology to produce sharp, vivid, high-contrast images even in rooms with ambient light. Its 0.48:1 short-throw fixed lens can project a large, clear image up to 150 inches from a short distance, making the most of tight spaces where the projector cannot be mounted far from the screen. The laser light source is rated for 20,000 hours of operation in Normal mode, and Vivitek states a long service life of up to 30,000 hours for the light source overall, greatly reducing energy consumption and maintenance costs compared to traditional lamp projectors. The entire optical system, from the laser light source through to the lens, is fully sealed and rated IP5X against dust ingress, helping the projector maintain consistent brightness and reliable performance over time with much less need for servicing. Vertical and horizontal keystone correction plus 4-corner geometric adjustment give installers virtually unlimited mounting flexibility, even where the projector cannot be perfectly centred on the screen. With dual HDMI 2.0 inputs supporting HDR10 metadata and 4K UHD signal pass-through, plus D-Sub, RS-232, USB, and a built-in 10W speaker, the DH2360Z-ST fits comfortably into classrooms and meeting rooms that need a compact, short-throw laser solution.

Key Features

DLP® DarkChip3™ & BrilliantColor™ Technology

The DH2360Z-ST supports DLP® DarkChip3™ and BrilliantColor™ technologies to ensure brilliant pictures, with optimal black levels and vivid, colorful images for a contrast ratio of 3,000,000:1, delivering high contrast, accurate, and vibrant colors.

Bright Images in Any Environment

Packed with up to 3,600 lumens of brightness and a high 3,000,000:1 contrast ratio, the DH2360Z-ST provides sharp and bright images in any environment with ambient light.

High Standard Anti-Dust Protection

The optical system, from the laser light source to the lens, is completely sealed and rated IP5X for protection against dust ingress, ensuring consistent brightness over time with reliable performance and much reduced need for maintenance.

HDR and HDMI 2.0 Support

The HDR-compatible DH2360Z-ST is capable of receiving and displaying HDR metadata, providing a brilliant visual experience with more detail and texture over long-distance projection. With an HDMI 2.0 interface, this projector also supports 4K signals.

Large Image From a Short Distance

With its short-throw design and 0.48:1 throw ratio, the DH2360Z-ST can project up to a 150-inch large and clear image from a short distance, saving valuable space in classrooms and meeting rooms.

Flexible Installation

The DH2360Z-ST supports vertical / horizontal keystone correction and 4-corner geometric adjustment, allowing for virtually unlimited mounting flexibility.

Long Lifespan

The DH2360Z-ST uses a laser light source for a long lifespan, rated for up to 20,000 hours in Normal mode and up to 30,000 hours overall, greatly reducing energy consumption and maintenance costs.

Specifications

DH2360Z-ST

Projection System

1-Chip DLP™ 0.65 inch

Native Resolution

1080p (1920 x 1080)

Light Source

Laser

Brightness

3,600 lm

Brightness Uniformity

80%

Contrast Ratio

3,000,000:1 (Full On/Off)

Light Source Life

20,000 hrs (Normal)

Lens Type

Fixed

Lens Throw Ratio

0.48 : 1

Offset (Full Image Width)

107%

Keystone Correction

Yes (H/V), Auto V Keystone

Four Corner Adjustment

Yes

I/O Connection Ports

HDMI 2.0 (x2), D-Sub In (x1), RS-232 In (x1), USB Type A (Power Only 5V/1.5A) (x1), USB mini-B (Service) (x1), Audio-In Mini-Jack (x1), Audio-Out Mini-Jack (x1)

Speaker

10W x1

Power

Supply: AC 100-240V, 50/60Hz. Consumption: 195W (Normal) / 155W (Eco). Standby: <0.5W

Noise Level

35dB (Normal) / 33dB (Eco)

Dimensions (W x D x H)

353 x 290 x 144mm

Weight

4.5 Kg

Operating Environment

Temp. 5~40°C / Humidity 10~85%

Brand	Vivitek
Lumens	3,600 Lumens
Resolution	1080p (1920 x 1080)
Throw Ratio	0.48:1
Projection Technology	DLP
Contrast Ratio	3,000,000:1
Light Source	Laser
