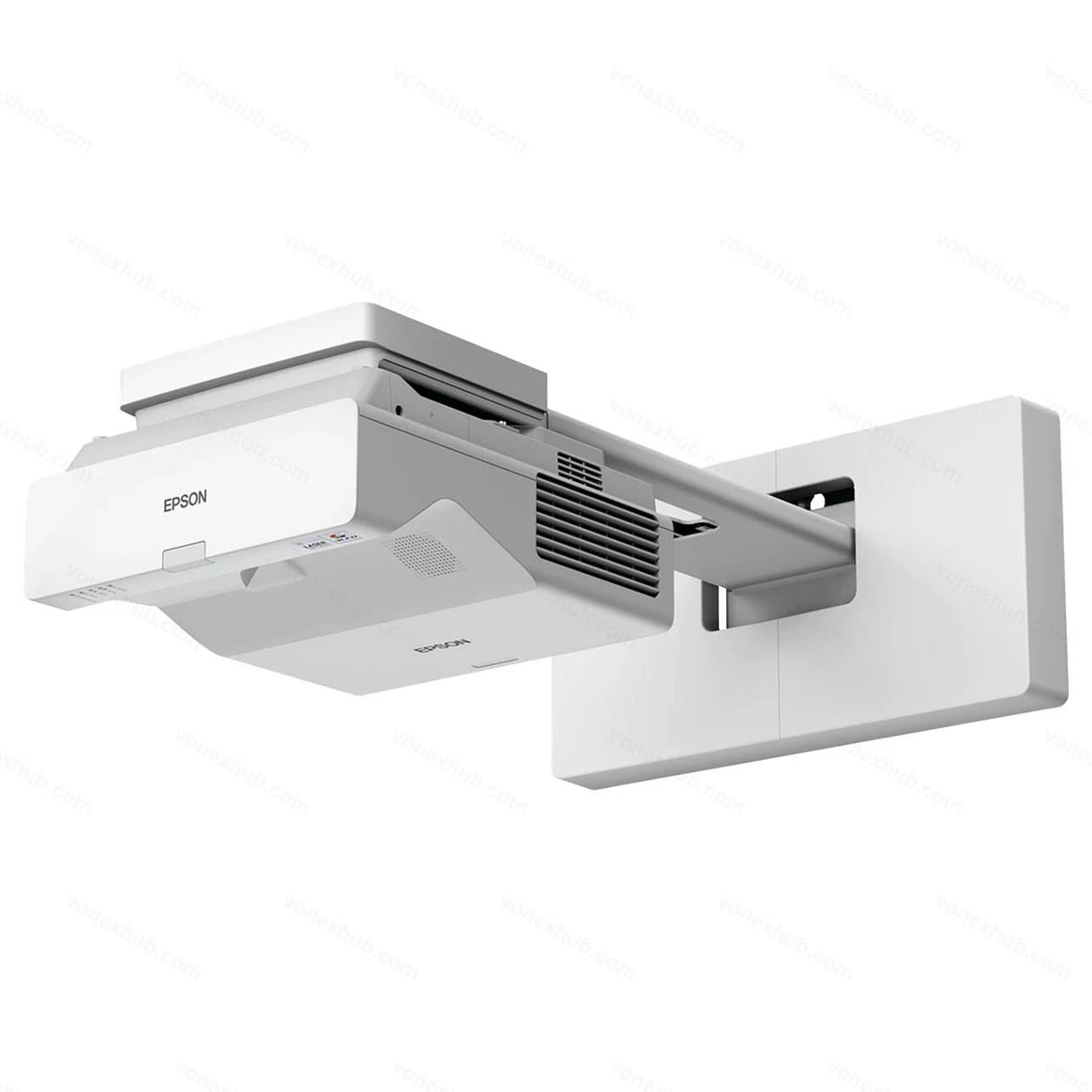

Epson EB-770F Ultra Short Throw Laser 3LCD Projector 4100 Lumens 1080p
Model: EB-770F
Note: This unit is supplied without the Ultra Short Throw wall mount. The ELPMB62 wall mount is available as an optional add-on, purchased separately.
Warranty: 36 months On-Site Service
View full Epson warranty terms
Quick Specs:
- Brightness: 4,100 lm Colour Light Output / 4,100 lm White Light Output
- Resolution: Full HD (1920 x 1080)
- Projection Technology: 3LCD
- Contrast Ratio: Over 5,000,000:1
- Light Source: Laser Diode, 20,000 hours (Normal/Quiet) / 30,000 hours (Extended)
- Weight: Approx. 5.9kg
Epson EB-770F Overview
The large, easy-to-read HD display for dynamic classroom environments.
Captivate and inspire students with the eye-catching, easy-to-read display of the Epson EB-770F. With its intelligent ultra short throw design, the dynamic EB-770F delivers stunning HD images up to 150″—which is 2.4 times larger than a 75″ flat panel—and can be easily seen from nearly anywhere in the classroom.
Engineered for reliability, this incredibly bright 4,100-lumen display has a 20,000-hour, virtually maintenance-free laser light source, which means there are no lamps to purchase or replace—ever.
Providing wireless connectivity with casting capability and convenient split screen functionality, the Epson EB-770F makes it easy for teachers and students to display up to four screens simultaneously. EB-770F supports a variety of aspect ratios, including 16:9 as well as ultra wide 21:9 and 16:6.
Offering the flexibility to display on existing whiteboards, the versatile Epson EB-770F delivers even more value by allowing teachers to retain valuable whiteboard space when not in use.
Looking for a standard-throw laser alternative instead? See the Epson EB-L260F, which uses a conventional throw distance compared to the EB-770F’s ultra short throw design.
Epson EB-770F Key Features
Massive, Wide Clear Content for a Full, Uncompromised Learning/Meeting Experience
Enjoy a dynamic wide screen viewing experience with our Ultra short-throw EB-770F. You may easily change the projection aspect depends on your working space. Maximum screen size is improved up to 150 inch (Diagonal). Have all the content well-viewed with our 21:9 aspect ratio at up to 142″ – newly available for Epson EB-770F.
Incredible Image Quality
Full HD 1080P Resolution at an exceptional value; accepts 4K content.
Brilliantly Rich, Crystal-Clear Detail
With excellent contrast ratio of over 5,000,000:1, the Epson EB-770F delivers well-defined image to you – whether it is numbers, pictures, graphs or videos. It’s all about seeing the little details in a better light.
Connect up to 50 Devices
Free downloadable Epson iProjection™ software makes it easy to project up to 4 devices at a time wirelessly from Chromebooks, iOS® and Android™ devices, Mac® computers and PCs; with moderator feature, teachers never lose control of the displayed content.
Laser Light Source – No Lamps to Replace
No lamps to replace ever with solid-state laser light source. The Epson EB-770F’s 20,000-hour, virtually maintenance-free laser light source delivers simple and reliable performance, cutting down on maintenance and lowering the total cost of ownership.
Epson EB-770F Specifications
Projection Technology
RGB liquid crystal shutter projection system
Brightness
White Light Output (Normal / Extended): 4,100lm / 2,800lm
Colour Light Output: 4,100lm
Contrast Ratio
Over 5,000,000 : 1

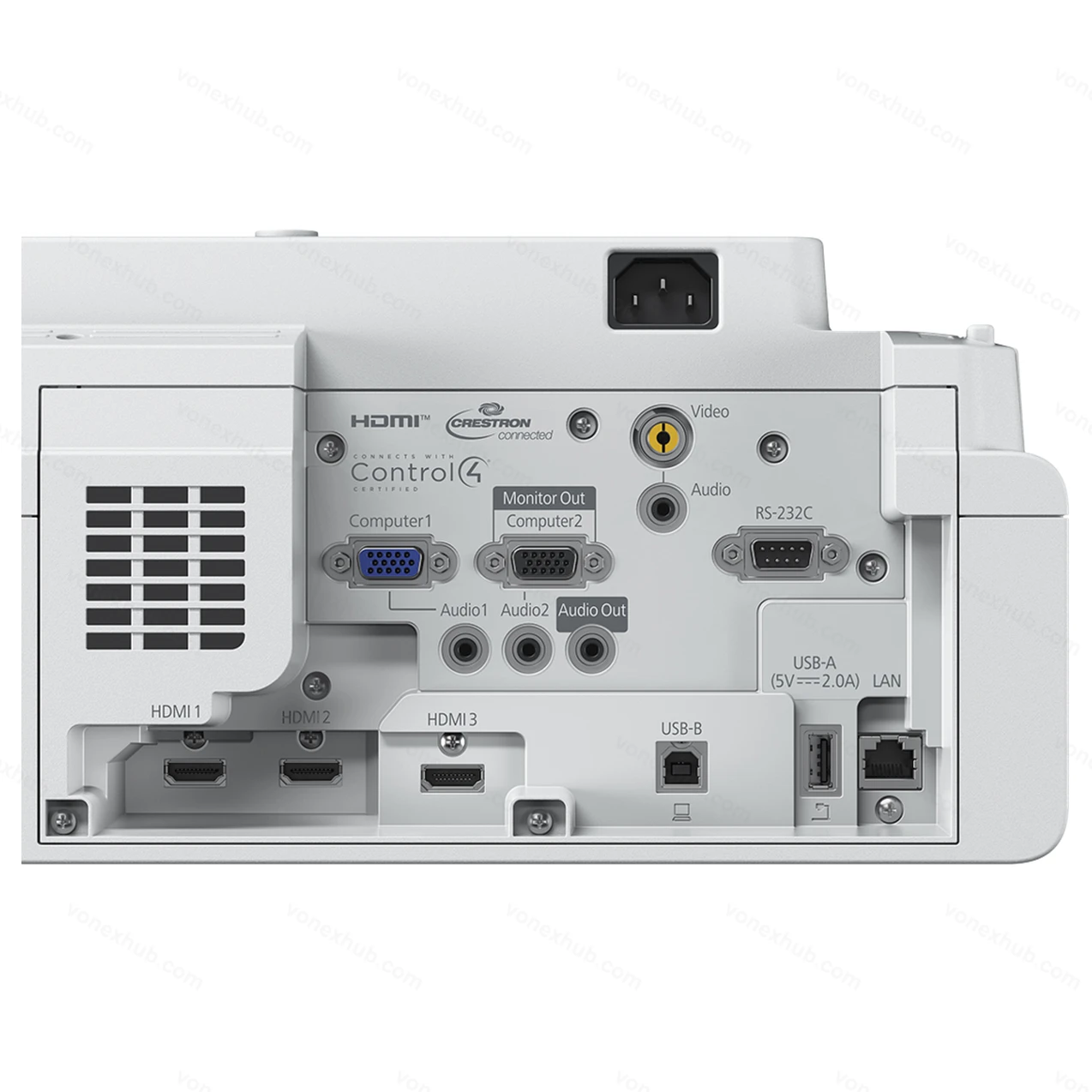

Connectivity
Analog Input: Computer In: 2, Composite: 1
Digital Input: HDMI In: 3 (HDCP 2.3)
Analog Output: Computer Out: 1 (Share with Computer2)
Audio Input: Audio In: 3 (Stereo Mini)
Audio Output: Audio Out: 1 (Stereo Mini)
Mic I/O: Mic In: 1 (Stereo Mini)
Control I/O: RS232C: 1 (D-sub 9pin)
USB I/O: Type A: 2 (1 Side: For PC Free, FW Update, Copy OSD Settings; 1 Rear: For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply), Type B: 1 (For FW Update, Copy OSD Settings, USB Display)
Network I/O: Wired LAN: 1 (RJ45), Wireless LAN: 1 (Built-in and Optional)
Geometric Correction
Vertical/Horizontal Keystone: ±3° / ±3°
Quick Corner: Yes (Manual)
Operating Temperature
0 – 2,286 m (0 – 7,500 ft): 0°C – 40°C (32°F – 104°F); 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 – 35°C (32°F – 95°F); 20%-80% Humidity, No Condensation
Operating Altitude
Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)
Start-Up Period
Less than 10 seconds (Epson Logo)
Quick Start-Up: Less than 5 seconds (Display)
Cool Down Period
Instant Off
Internal Speaker(s)
Sound Output: 16W Mono
Weight
Approx. 5.9kg
Air Filter
Type: Electrostatic Filter
Maintenance Cycle (Normal / Extended): 12,000 hours / 20,000 hours
Fan Noise
Fan Noise (Normal / Eco): 37dB / 27dB
Dimension Excluding Feet
D x W x H: 395 x 356 x 133mm
Noise Reduction: Yes
Super-Resolution: Yes
Detail Enhancement: Yes
Main Parts Specification
LCD: Size: 0.62″ (C2Fine), Resolution: Full HD
Light Source: Type: Laser Diode, Life (Normal/Quiet/Extended): 20,000 / 20,000 / 30,000 hrs
Projection Lens: Type: No Optical Zoom / Focus (Manual), F-Number: 1.60, Focal Length: 3.7mm, Zoom Ratio: 1 – 1.35 (Digital Zoom), Throw Ratio: 0.25 – 0.35
Screen Size (Projected Distance)
Standard: 77″ screen 43.3cm
Zoom (Wide):
56″ to 140″ (32.5 – 89.3cm) @ 16:6
60″ to 150″ (32.5 – 89.3cm) @ 16:9
55″ to 139″ (32.5 – 89.3cm) @ 16:10
57″ to 142″ (39.4 – 85.3cm) @ 21:9
Direct Power On / Off
Yes
Power Supply
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220-240V, Lamp Normal / Extended): 263W / 199W
Standby (Network On / Off): 2.0W / 0.5W
