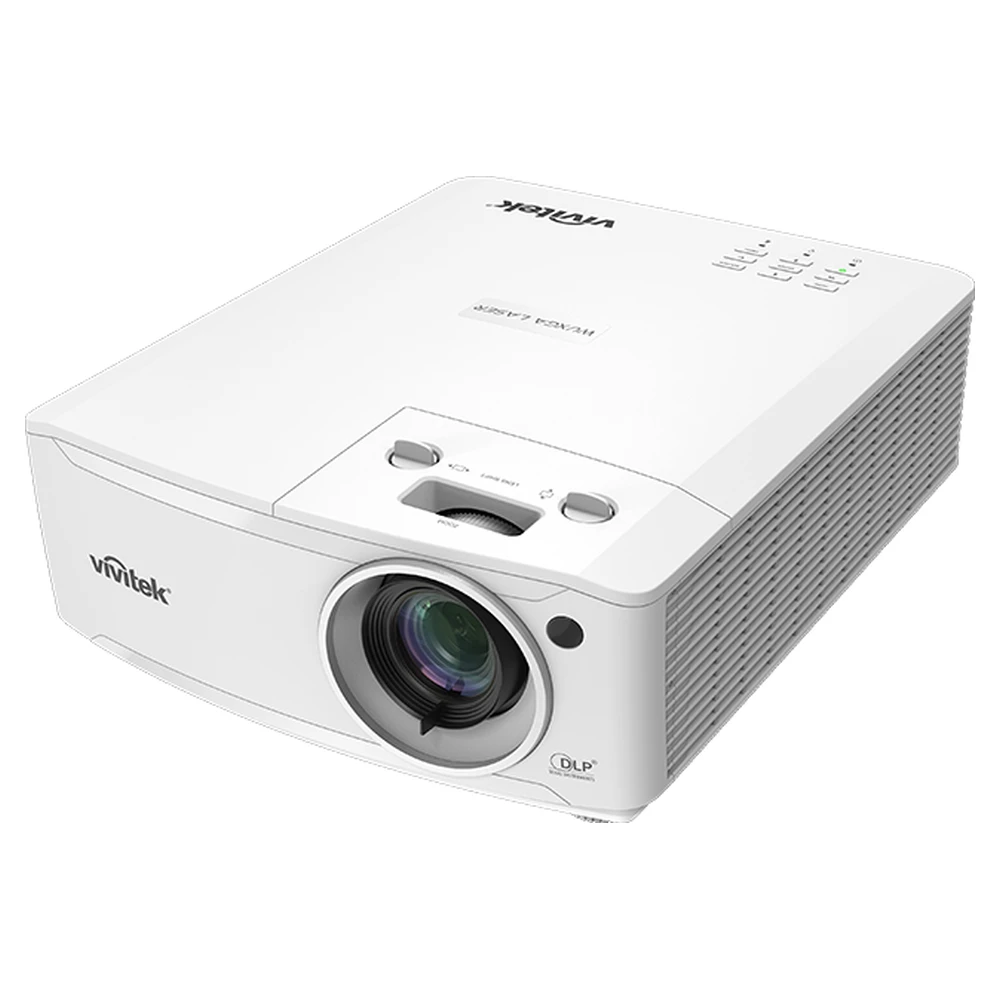

Vivitek DU4771Z Laser DLP Projector 6000 Lumens WUXGA
Model: DU4771Z
3 years warranty, laser 3 years or 20,000 hours
Download Datasheet
Quick Specs:
6,000 ANSI Lumens
WUXGA (1920 x 1200), DLP, Laser
Contrast ratio 20,000:1
Light source life 20,000 hours (Normal) / 30,000 hours (Eco)
Weight 10.5 Kg
High-brightness laser projector for corporate meeting rooms
With a WUXGA resolution, a high brightness of 6,000 lumens, and a 20,000:1 contrast ratio, the DU4771Z is a compact laser projector built for corporate meeting rooms, delivering clear, vivid images even in bright ambient light. Designed lamp-free and capable of up to 30,000 hours of operation in Eco Mode, it offers a low cost of ownership and requires minimal maintenance. Weighing just 10.5kg, the DU4771Z features 360° angle-free installation with vertical/horizontal keystone and 4-corner correction, easily fitting into almost any meeting room environment. It comes equipped with three HDMI ports and HDBaseT connectivity, along with a wide 1.65x zoom lens and horizontal lens shift for flexible installation distances and positioning. With its 20,000-hour light source life, RJ45 network control, and RS-232 support, the DU4771Z is well suited to boardrooms, training rooms, and multipurpose spaces that need dependable, low-maintenance projection with support for long cable runs over HDBaseT.
Key Features
Brightness and Color Performance
The DU4771Z features 6,000 lumens of high brightness, a 20,000:1 contrast ratio, and advanced vivid color technology to deliver a sharp, accurate image display.
1.65X Zoom Range
The DU4771Z is equipped with a 1.65X big zoom optical lens and supports a throw ratio of 1.15 to 1.9:1, providing flexible projection distance installation for a wide range of room layouts. With horizontal/vertical lens shift, even when the projector cannot be placed in the middle position, it can be adjusted to produce a properly aligned image.
Support HDBaseT™ Connectivity
The DU4771Z has a built-in HDBaseT™ interface for long-distance transmission of high-quality audiovisual content. HDBaseT™ reduces cabling requirements and installation effort, saving time and costs.
Flexible Installation
Vertical/horizontal keystone correction and 4-corner geometric adjustment give the DU4771Z virtually unlimited mounting flexibility, supporting 360° free installation orientation.
High Standard Anti-Dust Protection
The optical system, from the laser light source through to the lens, is completely sealed for protection against dust ingress, helping ensure consistent brightness over time with reliable performance and reduced need for maintenance.
Eco Friendly
All components and materials in Vivitek’s projectors follow the green guidelines of RoHS. The laser light source is rated for up to 30,000 hours in Eco Mode, guaranteeing a long service life that greatly reduces energy consumption and maintenance costs.
Specifications
| Projection System |
|
| Native Resolution |
|
| Light Source |
|
| Brightness |
|
| Brightness Uniformity |
|
| Contrast Ratio |
|
| Light Source Life |
|
| Lens Type |
|
| Zoom Ratio |
|
| Lens Throw Ratio |
|
| Lens Shift – Horizontal (Full Image Width) |
|
| Offset (Full Image Width) |
|
| Keystone Correction |
| Yes (Horizontal/Vertical) |
|
| Four Corner Adjustment |
|

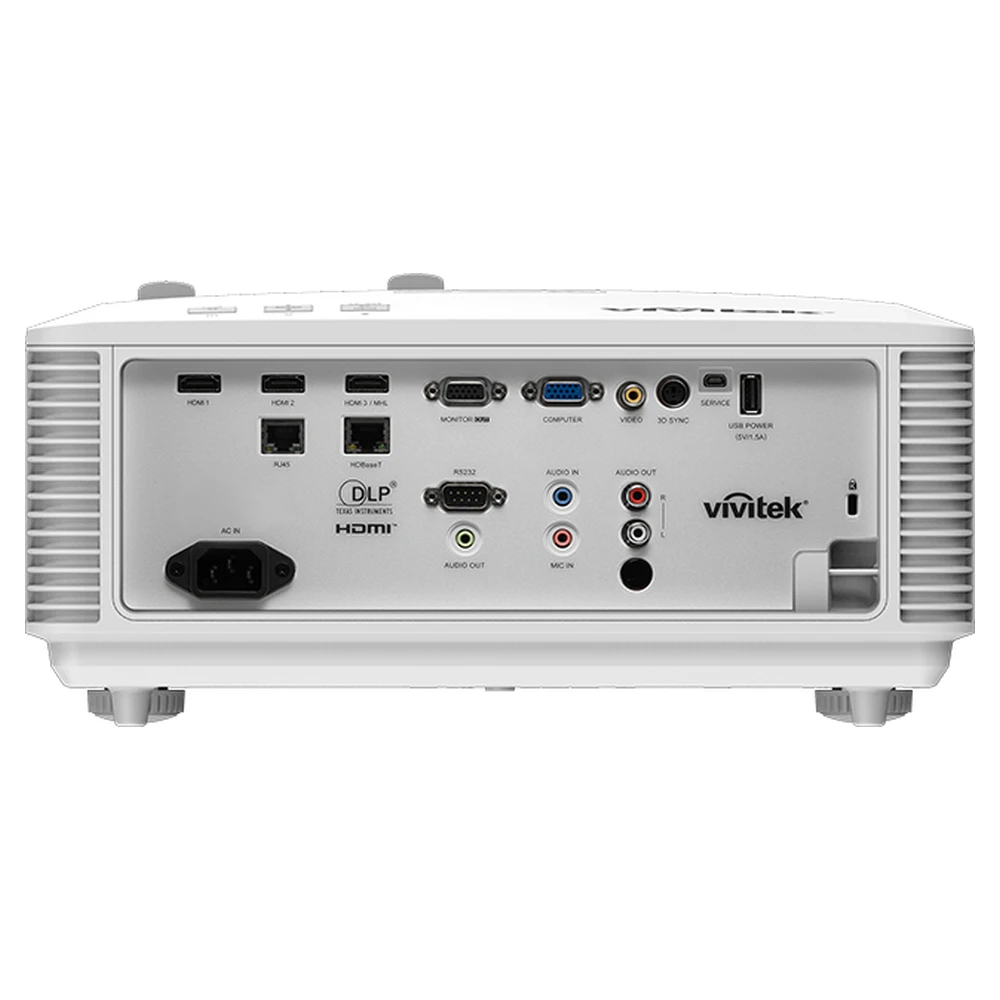

| I/O Connection Ports |
| HDMI 1.4a (x3, one with MHL), VGA-In D-Sub (x1), VGA-Out D-Sub (x1), HDBaseT (x1), LAN/RJ45 (x1), RS-232 In (x1), USB Type A (5V/1.5A power only) (x1), Audio-In RCA (x1), Audio-In Mini-Jack (x1), MIC-In Mini-Jack (x1), Audio-Out Mini-Jack (x1), 3D Sync Out (x1) |
|
| Speaker |
|
| Power |
| Supply: AC 110-240V, 50/60Hz. Consumption: 530W (Normal) / 330W (Eco). Standby: <0.5W (Network Off) / <2.0W (Network On) |
|
| Noise Level |
| 37dB (Normal) / 33dB (Eco) |
|
| Dimensions (W x D x H) |
|
| Weight |
|
| 3D Display |
|
| 24/7 Operation |
|
| Dust Proof |
|
| Operation Orientation |
|
| Operating Environment |
| Temp. 5~40°C / Humidity 10~85% |
|
| Storage Environment |
| Temp. -10~60°C / Humidity 5~95% |
|
