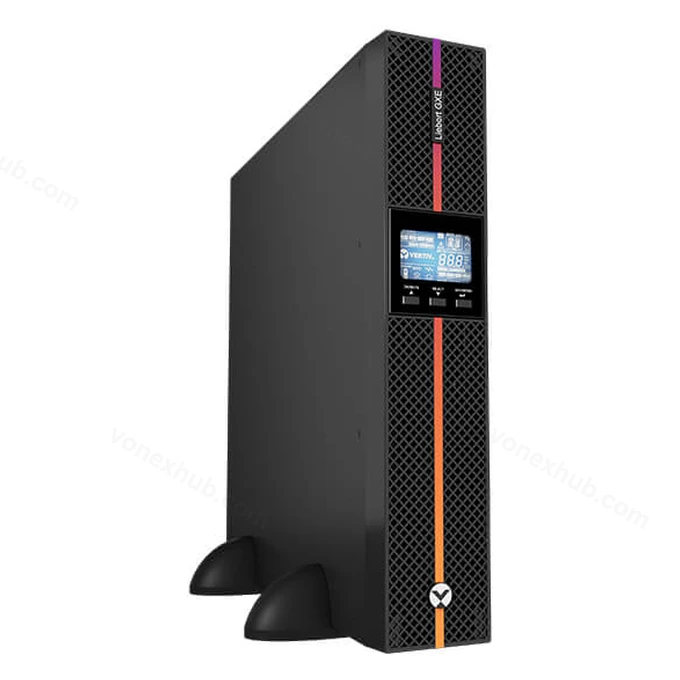

Vertiv Liebert GXE UPS 1500VA/1350W 230V Online Double Conversion Rack/Tower | Lead Acid VRLA Battery | Optional battery cabinets (GXE3-1500IRT2UXL) – With LCD Display
Model: GXE3-1500IRT2UXL
Warranty: 2 Years (Electronics and Batteries)
For full product details and warranty information, please refer to Vertiv’s official GXE3-1500IRT2UXL product page.
The Vertiv™ Liebert® GXE3-1500IRT2UXL UPS is an online double conversion solution which offers power protection in an affordable, efficient system with deployment and operation flexibility.
The high output power factor (0.9) of the Liebert GXE single-phase UPS enables continuous and reliable power to more connected devices, protecting them against many disturbances in the AC mains with the online double conversion technology and the input surge protection.
The high efficiency in both line and ECO modes of operation for this already affordable UPS also drives energy and operational costs savings.
Available in 1, 1.5, 2 and 3kVA power ratings in either a compact tower form factor, or in a rack/tower form factor with flexibility for mounting in either tower position or inside a rack cabinet together with the IT equipment critical for any application. Moreover, the capability to add external battery cabinets in the rack/tower models provides scalable runtime for those applications requiring even a longer period of backup in case of AC mains failures. It is combined with a powerful internal charger with a maximum of 6 Amps for a fast recharge.
In addition to the extended runtime, having multiple monitoring options make this compact UPS ideal for delivering best-in-class power protection to equipment at the edge of networks or in remote sites.
Vertiv Liebert GXE3-1500IRT2UXL Features
- High output power factor (0.9)
- High efficiency in online mode (up to 91%)
- Even higher efficiency (up to 96%) in ECO mode
- Compact tower only form factor or flexible rack/tower convertible design
- User-friendly LCD interface
- Fast recharge time (<4 hours to 90% for internal batteries)
- Extended runtime with up to 4 optional External Battery Cabinets (EBC)
- Hot-swappable user replaceable internal UPS batteries
- Remote management capability with optional Vertiv™ Liebert® Intellislot™ IS-UNITY network management cards
- (8) IEC60320 C13 outlets (all models), plus (1) C19 (3kVA model)
- Automatic internal bypass
- Free UPS management software
- Vertiv™ Life™ Service to maximize UPS availability
Vertiv Liebert GXE3-1500IRT2UXL Specifications
General
| Model Number | GXE3-1500IRT2UXL |
|---|---|
| Power Rating (VA/W) | 1500VA / 1350W |
| Form Factor | Rack / Tower (2U) |
Dimensions & Weight
| Unit Dimensions (W x D x H, mm) | 438 x 430 x 86 |
|---|---|
| Shipping Dimensions (W x D x H, mm) | 560 x 600 x 235 |
| Shipping Weight | 21.6 kg |
Input AC Parameters
| Voltage Range Without Battery Operation (230V default, derating applies) | 110 – 290 V |
|---|---|
| Voltage Range Without Battery Operation (230V default, 100% load) | 180 – 290 V |
| Frequency Range (autosensing) | 40 – 70 Hz |
| Input Power Connector | IEC60320 C14 |
| Surge Protection | 600 J |
Output AC Parameters
| Output Voltage | 220/230 (default) / 240 V |
|---|---|
| Waveform | Pure Sine Wave |
| Output Overload (AC Mode) | 105% – 110% @ 10 min 111% – 130% @ 30 sec 131% – 150% @ 2 sec > 150% @ immediate |
| Output Receptacles | 8 x IEC60320 C13 |
| Efficiency (online mode, max.) | 89% |
| Efficiency (ECO mode, max.) | 95% |
Battery
| Type | Valve-regulated, non-spillable, lead-acid |
|---|---|
| Recharge Time (internal batteries, typical) | <4 hr @ 90% |
| Backup Time (100% load) | 3.2 minutes |
| Backup Time (50% load) | 9 minutes |
| Compatible External Battery Cabinet | GXE3-EBC36VRT2U |
