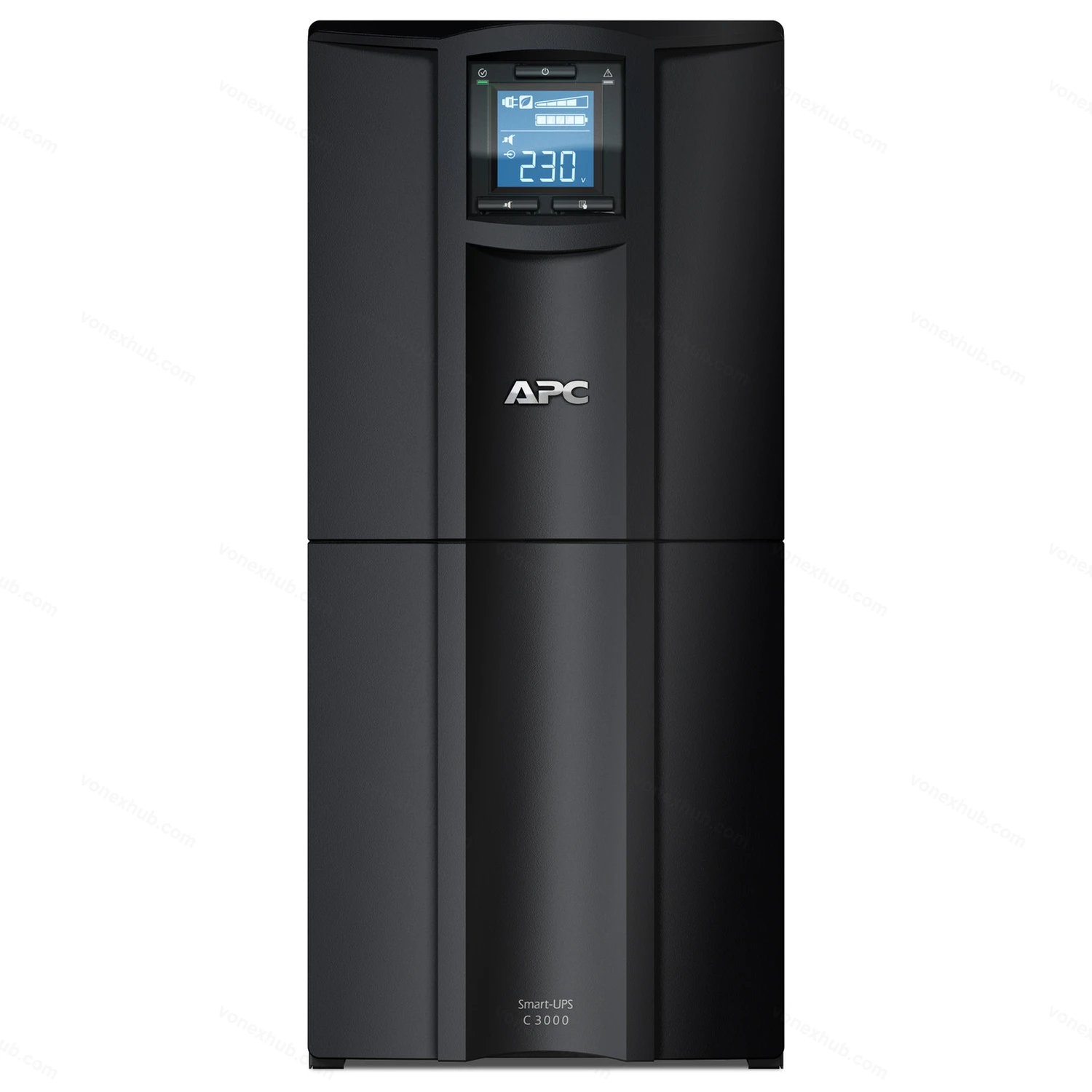

APC SMC3000I Smart-UPS C, Line Interactive, 3kVA, Tower, 230V, 8x IEC C13+1x IEC C19 outlets, USB and Serial communication, AVR, Graphic LCD
Model: SMC3000I
Warranty: 24 months
3kVA/2100W line interactive pure sine wave tower UPS. Ideal for entry-level servers, networks, retail POS, business VOIP and desktops.
Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels.
Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown.
See the full APC Smart-UPS range for other capacities and form factors.
APC SMC3000I Specifications
Batteries & Runtime
| Battery type | Lead-acid battery |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 183 W rated |
Environment
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 45 dBA |
| Heat dissipation | 135 Btu/h |
| Operating altitude | 0…10000 ft |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Product certification | C-Tick CE EAC GOST SABS VDE UK PSTI |
General
| Product or component type | Uninterruptible power supply (UPS) |
| Range of product | Smart-UPS |
| Redundant | No |
| Additional specification | Entry level |
| Battery type | Lead-acid internal included |
| Number of power modules | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Provided equipment | CD with software Documentation CD USB cable |
Physical
| Mounting mode | Tower (Not rack-mountable) |
| Mounting preference | No preference |
| Mounting location | Front |
| Two post mountable | 0 |
| USB compatible | Yes |
| Product weight | 43 kg |
| Depth | 544 mm |
| Width | 197 mm |
| Height | 435 mm |
| Color | Black |
| Number of rack unit | 0U |
Communications & Management
| UPS connectivity | Serial port USB port |
| Free slot | 0 |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering
| Surge energy rating | 300 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Graphs
| Run Time | View Runtime Graph |
Output
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 2100 W |
| Rated power in VA | 3000 VA |

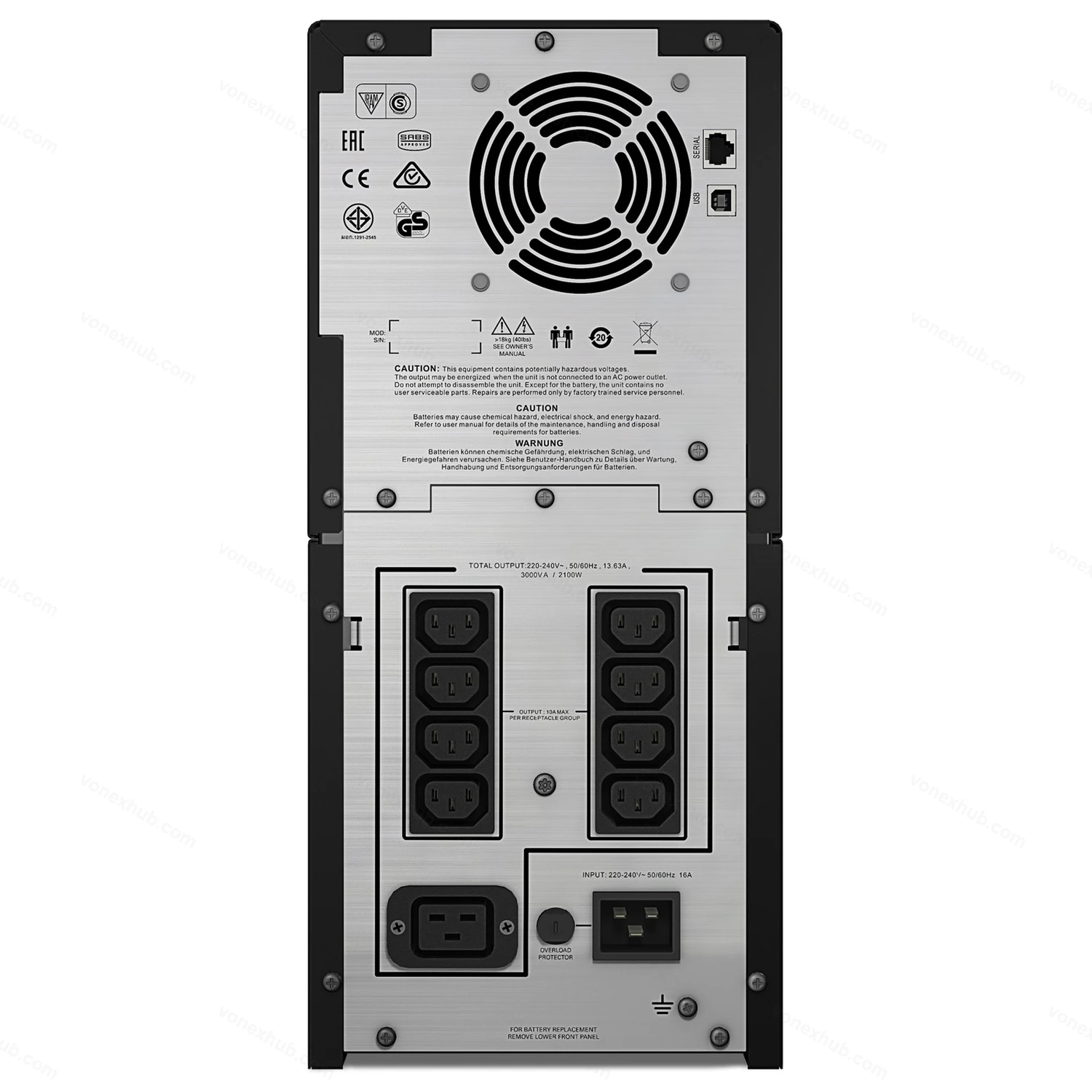

| Output connection | 8 IEC 60320 C13 1 IEC 60320 C19 |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2100 W |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Output frequency | 50 Hz sync to mains |
| Replacement battery | APCRBC150 |
Input
| Main input voltage | 230 V AC 1 phase |
| Other input voltage | 220 V 240 V |
| Input connection | IEC 60320 C20 |
| Efficiency at full load | 170…300 V adjustable 180…287 V |
| Input frequency | 47…63 Hz |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 76.2 cm |
| Package 1 Width | 69.9 cm |
| Package 1 Length | 38.1 cm |
| Package 1 Weight | 51 kg |
