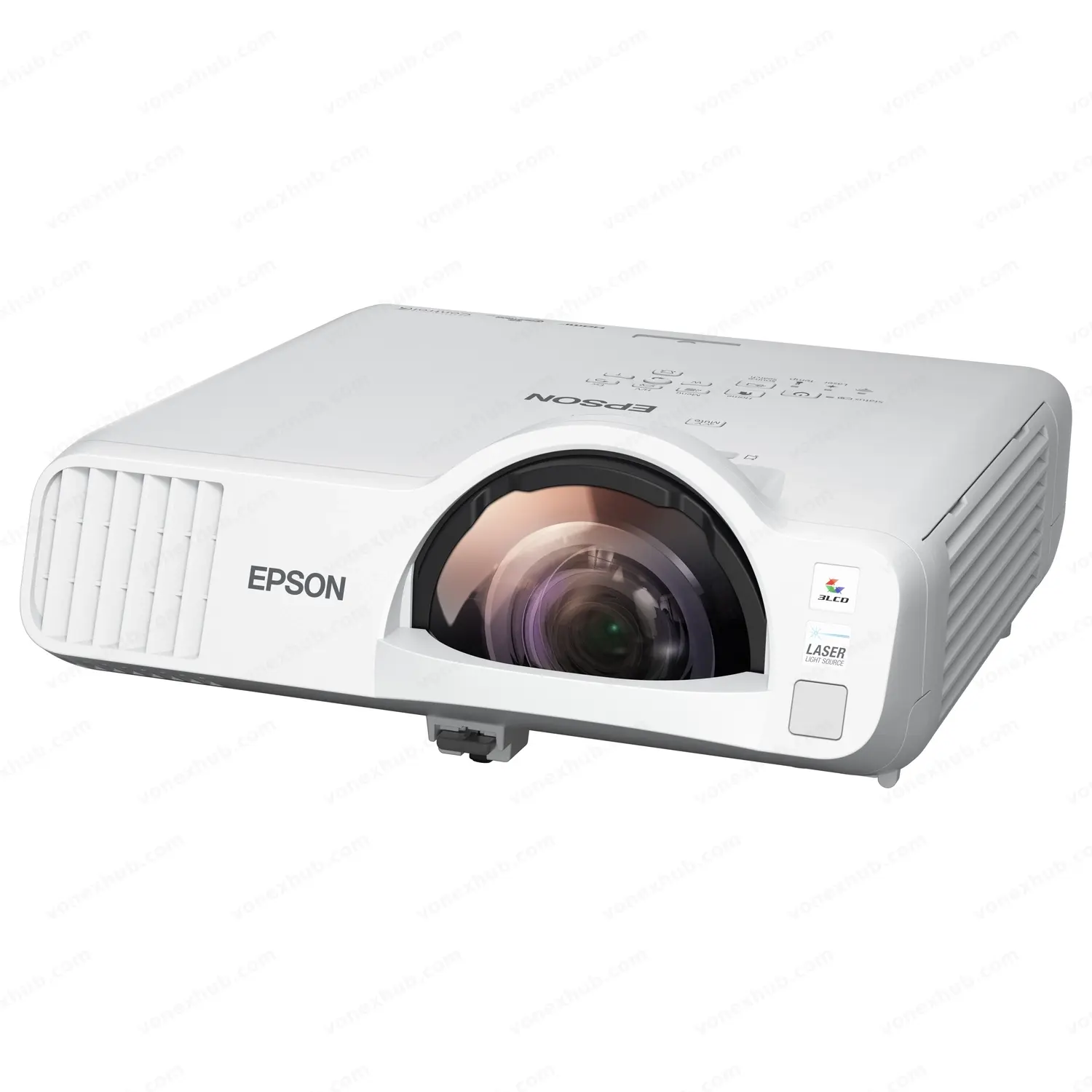

Epson EB-L210SF Laser Short Throw 3LCD Projector 4000 Lumens 1080p
Model: EB-L210SF
Warranty: 36 months Carry-In Service or 12,000 operating hours, whichever is earlier
View full Epson warranty terms
Quick Specs:
- Brightness: 4,000 lm Colour Light Output / 4,000 lm White Light Output
- Resolution: Full HD 1080p (1920 x 1080)
- Projection Technology: 3LCD
- Contrast Ratio: Over 5,000,000:1
- Light Source: Laser Diode, 20,000 hours (Normal/Quiet) / 30,000 hours (Extended)
- Weight: Approx. 4.6kg
Epson EB-L210SF Overview
Lamp-free laser display for the classroom projects easy-to-read images up to 125″
Change the way you think about classroom displays with the EB-L210SF. Delivering 4,000 lumens of color and white brightness and high-quality Full HD 1080p resolution at up to 125″ diagonal size—more than three times larger than a 75″ flat panel—this short throw lamp-free laser display brings stunning clarity to presentations and encourages engagement with large, bright and easy-to-read images from nearly anywhere in the classroom.
Engineered for reliability, this display has a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to replace—ever.
Sharing your lesson plans just got easier with wireless connectivity from PCs, Mac® computers, Chromebooks, and Android™ and iOS® devices, as well as split screen functionality to display up to four devices simultaneously. You can project brilliant images, inspire collaboration and enjoy ease of use with the EB-L210SF—all at a remarkable value.
Looking for a WXGA classroom alternative instead? See the Epson EB-L210SW, which offers WXGA resolution at the same short throw laser design and brightness as the EB-L210SF.
Epson EB-L210SF Key Features
High Brightness
With powerful brightness of up to 4,000 lm, EB-L210SF delivers clear and detailed images even in bright environments.
Massive, Wide Clear Content for a Full, Uncompromised Learning/Meeting Experience at a Short Throw Distance
Enjoy a dynamic wide screen viewing experience with our short-throw model – EB-L210SF. Projecting up till 119″ for 21:9 aspect ratio, our EB-L210SF allows users to experience all learning contents and interaction all at the same time – virtual meeting or hybrid learning.
High Image Quality
Delivering exceptional clarity at Full HD resolution, EB-L210SF ensures visual quality while maintaining a short throw distance.
One Projector, Multiple Possibilities
An adaptable piece that serve your every needs, EB-L210SF powers it up to put your statement pieces in the limelight, from projection signage at your reception to sharing your business-shaping ideas.
Epson EB-L210SF Specifications
Projection Technology
RGB liquid crystal shutter projection system

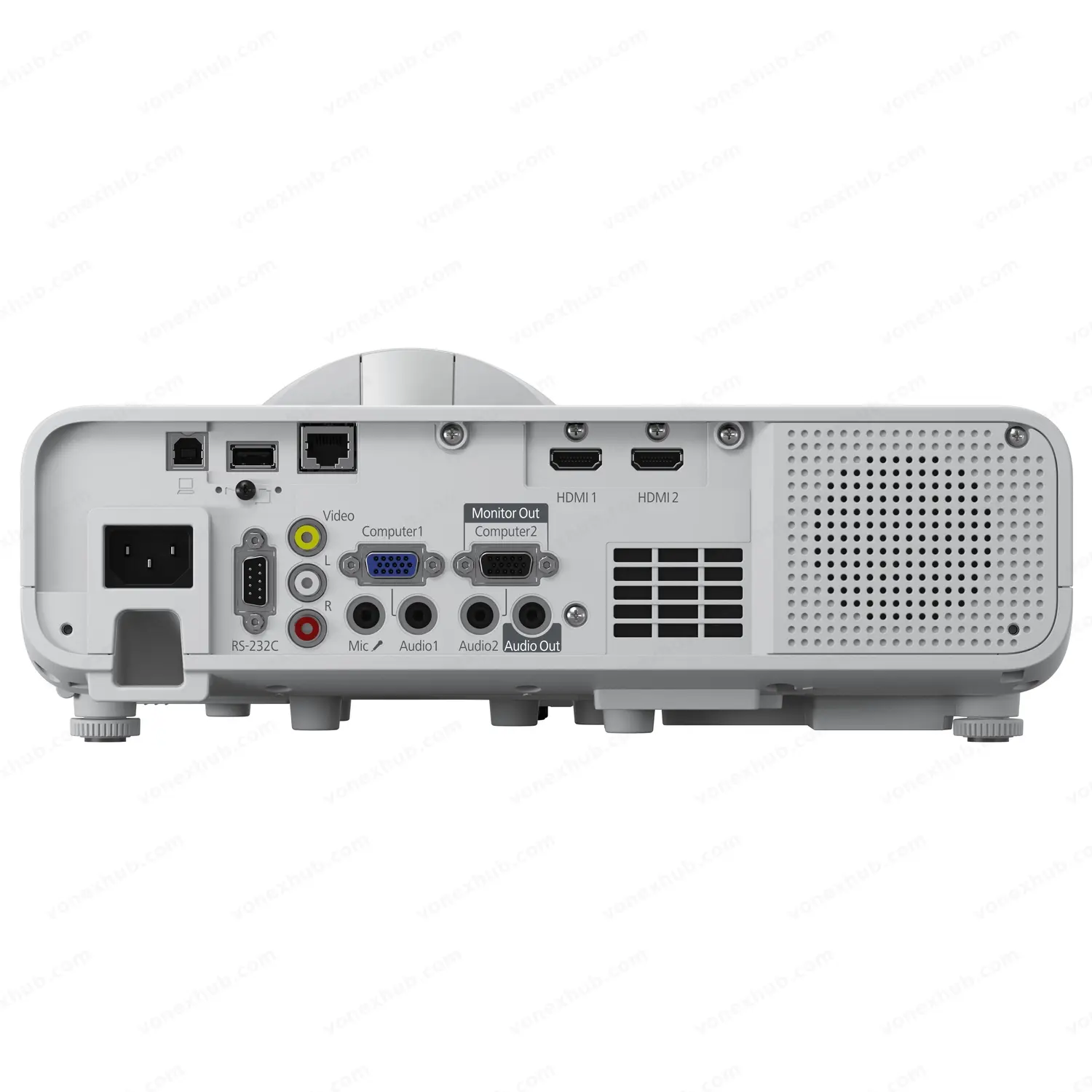

Connectivity
Analog Input: D-Sub 15Pin: 2, Composite: RCA x 1 (Yellow)
Digital Input: HDMI: 2 (HDCP 2.3)
Analog Output: D-Sub 15Pin: 1 (Black) (in common with Computer 2)
Audio Input: RCA: 1 (White, Red), Stereo Mini Jack: 2
Audio Output: Stereo Mini Jack: 1
Mic I/O: Mic In: 1 (Stereo Mini)
Control I/O: RS-232C: D-Sub 9pin x 1
Others: USB Type A: 1 (For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply), USB Type B: 1 (For Firmware Update, Copy OSD Settings)
Network I/O: Wired LAN: RJ45 x 1 (100Mbps), Wireless: Built-in and Optional (Using ELPAP11)
Contrast Ratio
Over 5,000,000 : 1
Screen Size (Projected Distance)
Zoom: Wide: 55″ to 125″ [54 cm to 127 cm]
Standard Size: 90″ screen 91 cm
Geometric Correction
Vertical/Horizontal Keystone: ±15° / ±15°
Quick Corner: Yes (Manual)
Operating Temperature
0 – 2286m (0-7500ft): 0°C – 40°C (32°F – 104°F); 20%-80% Humidity, No Condensation
Over 2286m (7500ft): 0°C – 35°C (32°F – 95°F); 20%-80% Humidity, No Condensation
Operating Altitude
Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)
Start-Up Period
Less than 9 seconds (Epson logo), Warm-up Period: 30 seconds
Quick Start-Up: Less than 5 seconds (Display)
Cool Down Period
Instant Off
Internal Speaker(s)
Sound Output: 16W Monaural
Weight
Approx. 4.6kg
Air Filter
Type: Electrostatic Filter
Maintenance Cycle: 20,000 hours
Fan Noise
Fan Noise (Normal / Eco): 37dB / 27dB
Dimension Excluding Feet
D x W x H: 337mm x 325mm x 90mm
Brightness
Colour Light Output: 4,000lm
White Light Output (Normal/Extended): 4,000lm / 2,800lm
Noise Reduction: Yes
Super-Resolution: Yes
Detail Enhancement: Yes
Wireless Specification (In-Built Wireless LAN and Screen Mirroring)
Supported Speed for Each Mode:
Infrastructure: IEEE 802.11b (2.4GHz): 11 Mbps, IEEE 802.11g (2.4GHz): 54 Mbps, IEEE 802.11n (2.4GHz): 72.2 Mbps, IEEE 802.11a (5GHz): 54 Mbps, IEEE 802.11n (5GHz): 150.0 Mbps, IEEE 802.11ac (5GHz): 325 Mbps
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps, IEEE 802.11n (2.4GHz): 72.2 Mbps, IEEE 802.11a (5GHz): 54 Mbps, IEEE 802.11n (5GHz): 150.0 Mbps, IEEE 802.11ac (5GHz): 325 Mbps
Supported Mode: Infrastructure, Access Point (Wi-Fi Direct)
Wireless LAN Security: Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP (Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast); Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Wireless Specifications (Optional Wireless LAN)
Supported Speed for Each Mode: Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps, IEEE 802.11n (2.4GHz): 72.2 Mbps, IEEE 802.11a (5GHz): 54 Mbps, IEEE 802.11n (5GHz): 150 Mbps, IEEE 802.11ac (5GHz): 325 Mbps
Supported Mode: Access Point (Wi-Fi Direct)
Supported Security Type: WPA2-PSK (AES)
Main Parts Specification
LCD: Size: 0.62″ (C2Fine), Resolution: Full HD (1080p)
Projection Lens: Type: No Optical Zoom / Focus (Manual), F-Number: 1.6, Focal Length: 6.4mm, Zoom Ratio: 1.0 – 1.35 (Digital Zoom), Throw Ratio: 0.45 – 0.61
Light Source
Type: Laser Diode
Light Source Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs
Direct Power On / Off
Yes
Power Supply Voltage
100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (LD On, Normal / Extended): 260W / 191W
Standby (Network On / Off): 2.0W / 0.5W
