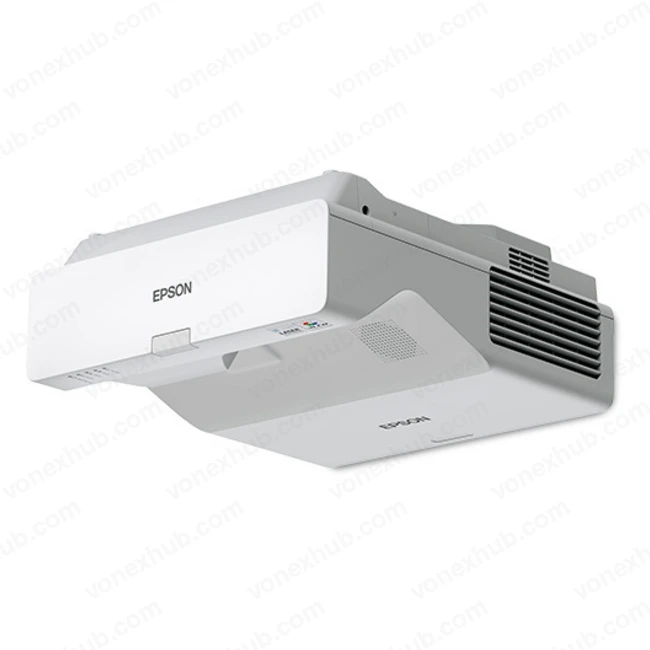

Epson EB-760Wi Interactive Laser Projector WXGA
Model: EB-760Wi
Note: This unit is supplied without the Ultra Short Throw wall mount. The ELPMB62 wall mount is available as an optional add-on, purchased separately.
Warranty: 36 months On-Site Service
View full Epson warranty terms
Quick Specs:
- Brightness: 4,100 lm Colour Light Output / 4,100 lm White Light Output
- Resolution: WXGA (16:10)
- Projection Technology: 3LCD (RGB liquid crystal shutter projection system)
- Contrast Ratio: Over 5,000,000:1
- Light Source: Laser Diode, 20,000 hours (Normal/Quiet) / 30,000 hours (Extended)
- Weight: Approx. 6kg
Epson EB-760Wi Overview
Offering a high-quality 16:10 WXGA display up to 100″, the Epson EB-760Wi interactive display delivers easy-to-read images that provides up to 85 percent more interactive space than a 75″ flat panel—for a low cost per square inch.
With 4,100 lumens of colour and white brightness and proprietary 3-chip 3LCD technology, this display delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions from nearly anywhere in the classroom.
It also includes a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace—ever.
With our ultra-short throw projectors, deliver clear and impactful presentations. Cast a larger image from less than an arm throw distance, stay game on in your business and learning. Throw ratio of 0.27-0.37 allows you to project up to 150″ at 92.8cm (with no interactive function; up to 100″ with interactive function). Comes with 16W speaker to enhance your collaboration experience too!
For classrooms that don’t need interactive pen function, the Epson EB-760W offers the same WXGA ultra short throw laser display without the interactive whiteboard features.
Epson EB-760Wi Key Features
Interactive Function
Using Epson EB-760Wi Interactive function, explore meaningful collaboration and discussion of big ideas. Comes with Advance Whiteboard function, two pens and six finger touch point to make collaborations a breeze.
PC-Free Digital Whiteboard
Draw, save, print and email without a PC; share whiteboard content with other networked projectors.
Brilliantly Rich, Crystal-Clear Detail
With excellent contrast ratio of over 5,000,000:1, EB-760Wi delivers well-defined image to you – whether it is numbers, pictures, graphs or videos. It’s all about seeing the little details in a better light.
Epson EB-760Wi Specifications
Projection Technology
RGB liquid crystal shutter projection system
Brightness
White Light Output (Normal / Extended): 4,100lm / 2,800lm
Colour Light Output: 4,100lm
Contrast Ratio: Over 5,000,000 : 1

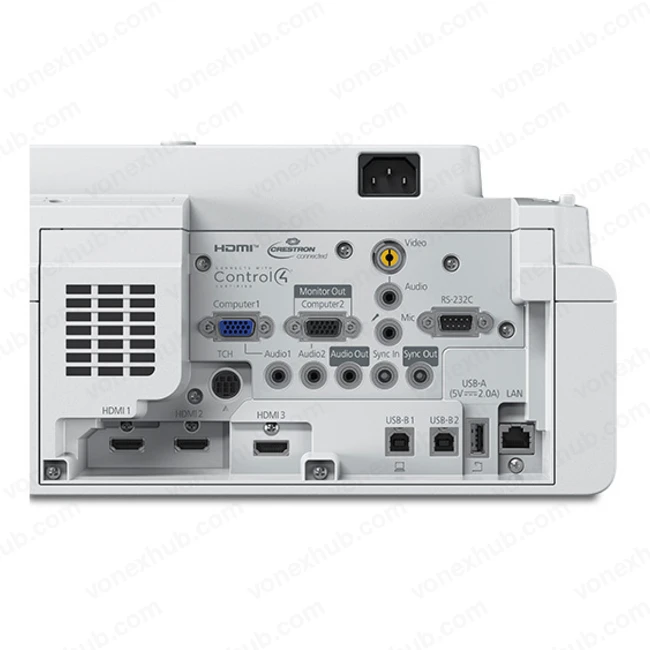

Connectivity
Analog Input: Computer In: 2, Composite: 1
Digital Input: HDMI In: 3 (HDCP 2.3)
Analog Output: Computer Out: 1 (Share with Computer2)
Audio Input: Audio In: 3 (Stereo Mini)
Audio Output: Audio Out: 1 (Stereo Mini)
Mic I/O: Mic In: 1 (Stereo Mini)
Control I/O: RS232C: 1 (D-sub 9pin), Interactive Sync: 1 (Stereo Mini), Finger Touch Unit Control: 1 (Mini DIN 8pin)
USB I/O: Type A: 2 (1 Side: For PC Free, FW Update, Copy OSD Settings; 1 Rear: For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply), Type B: 2 (For FW Update, Copy OSD Settings, USB Display)
Network I/O: Wired LAN: 1 (RJ45), Wireless LAN: 1 (Built-in and Optional)
Geometric Correction
Vertical/Horizontal Keystone: ±3° / ±3°
Quick Corner: Yes (Auto / Manual)
Operating Temperature
0 – 2,286 m (0 – 7,500 ft): 0°C – 40°C (32°F – 104°F); 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 – 35°C (32°F – 95°F); 20%-80% Humidity, No Condensation
Operating Altitude
Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)
Start-Up Period
Less than 10 seconds (Epson Logo)
Quick Start-Up: Less than 5 seconds (Display)
Cool Down Period
Instant Off
Internal Speaker(s)
Sound Output: 16W Mono
Air Filter
Type: Electrostatic Filter
Maintenance Cycle (Normal / Extended): 12,000 hours / 20,000 hours
Fan Noise
Fan Noise (Normal / Eco): 37dB / 27dB
Dimension Excluding Feet
D x W x H: 395 x 356 x 133mm
Noise Reduction: Yes
Super-Resolution: Yes
Detail Enhancement: Yes
Wireless Specification (In-built wireless LAN and Screen Mirroring)
Supported Speed for Each Mode: Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps, IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72.2Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps; Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72.2Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps
Supported Mode: Infrastructure, Access Point (Wi-Fi Direct)
Supported Security Type: Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast; Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Power
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Ultra Short Throw Lens
Weight: Approx. 6kg
Power Consumption (220-240V)
Lamp (Normal / Extended): 263W / 199W
Standby (Network On / Off): 2.0W / 0.5W
Direct Power On / Off
Yes
Specifications of Main Parts
LCD: Size: 0.59″ (C2Fine), Resolution: WXGA
Light Source: Type: Laser Diode, Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs
Projection Lens: Type: No Optical Zoom / Focus (Manual), F-Number: 1.60, Focal Length: 3.7mm, Zoom Ratio: 1 – 1.35 (Digital Zoom), Throw Ratio: 0.27 – 0.37
Screen Size (Projected Distance): Standard: 74.3″ screen 43.3cm
Zoom (Wide):
53″ to 132″ (33.7 – 92.8cm) @ 4:3
58″ to 146″ (33.7 – 92.8cm) @ 16:9
60″ to 150″ (33.7 – 92.8cm) @ 16:10
Zoom (Wide) (With Interactive Function):
52.6″ to 100″ (33.7 – 60.1cm) @ 16:9
57.9″ to 100″ (33.7 – 68.7cm) @ 16:10
59.5″ to 100″ (33.7 – 61.9cm) @ 4:3
