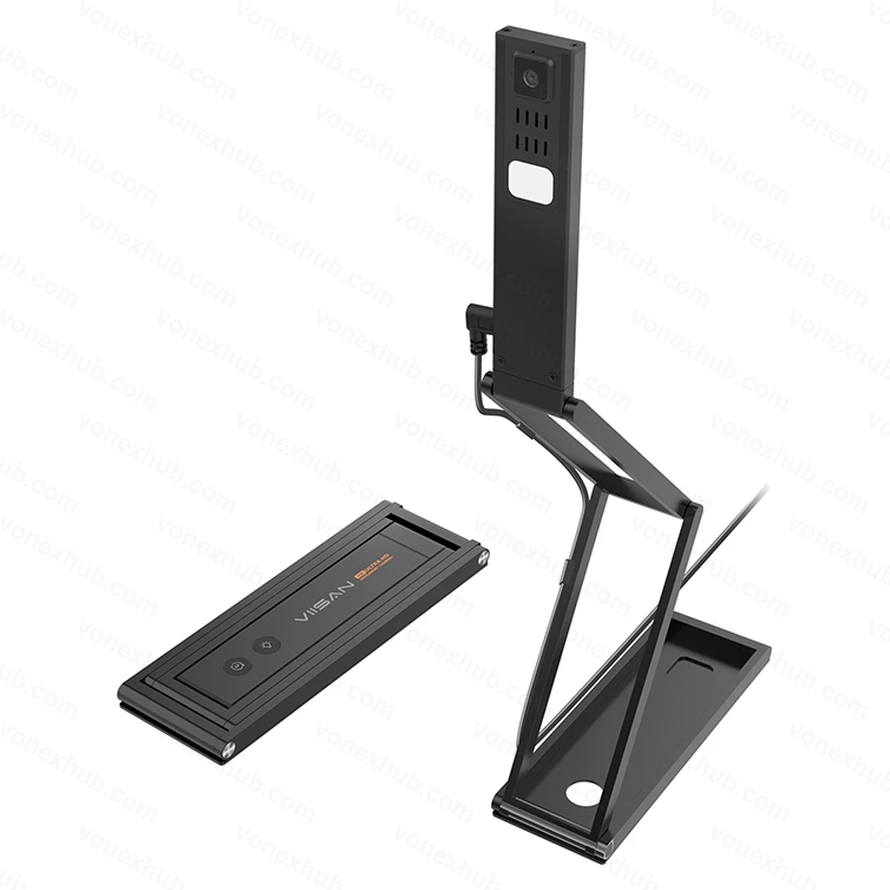

Viisan P4U 4K Pocket USB Document Camera
Model: P4U
Warranty: 3 years
This product typically has a longer lead time. Do WhatsApp us or email us to better understand the updated leadtime.
Quick Specs:
- Image Sensor: 13 Megapixel 1/3″ CMOS
- Zoom: Sensor Zoom 3X
- Max. Output Resolution: 3840×2160@30fps (4K), 1920×1080@60fps (FHD)
- Max. Shooting Area: 440mm x 330mm (A3)

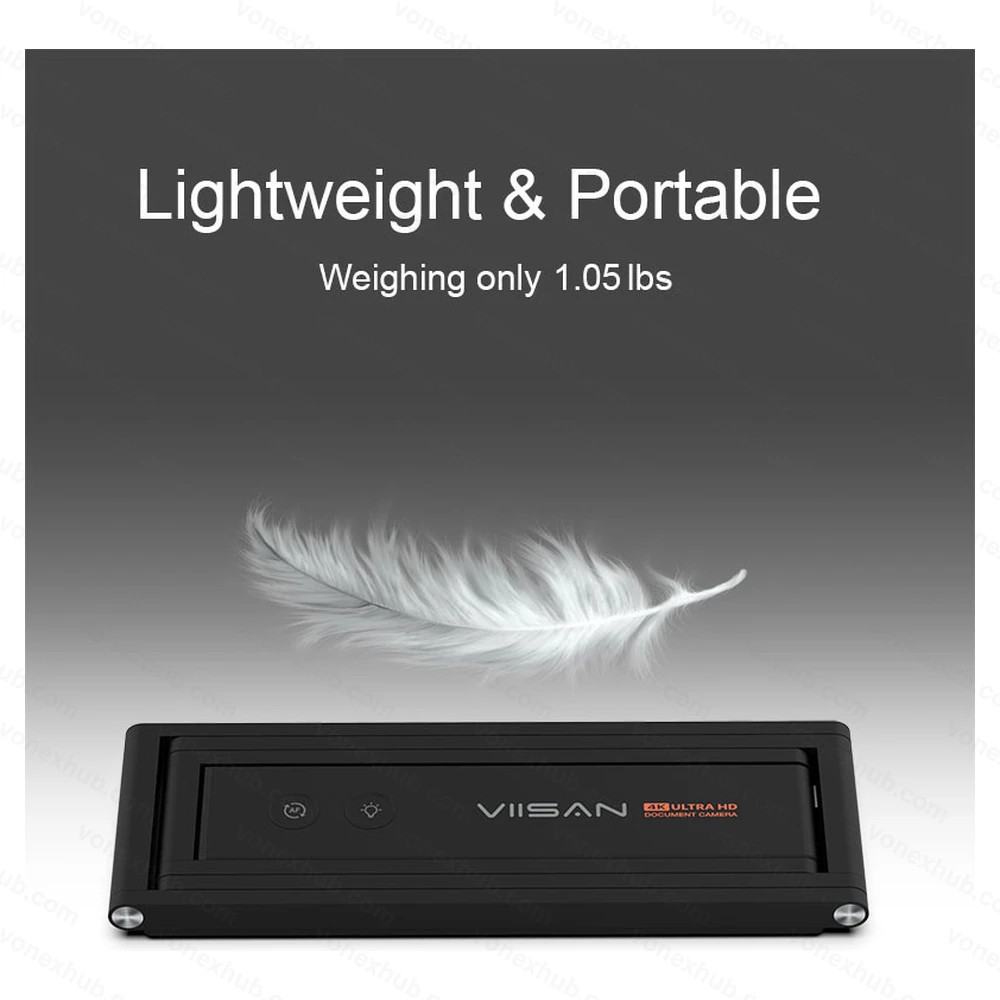

- Weight: 430g (1.05 lbs)
- Built-in Microphone: Yes
The P4U is a 2-in-1 4K portable USB visualizer (document camera) designed for remote learning and live demonstrations. It delivers clear images with up to 4K resolution and high frame rate video streaming output.
The unique multi-joint design allows you to easily adjust the height and angle of the camera head to capture more details of your materials.
Viisan P4U Key Features

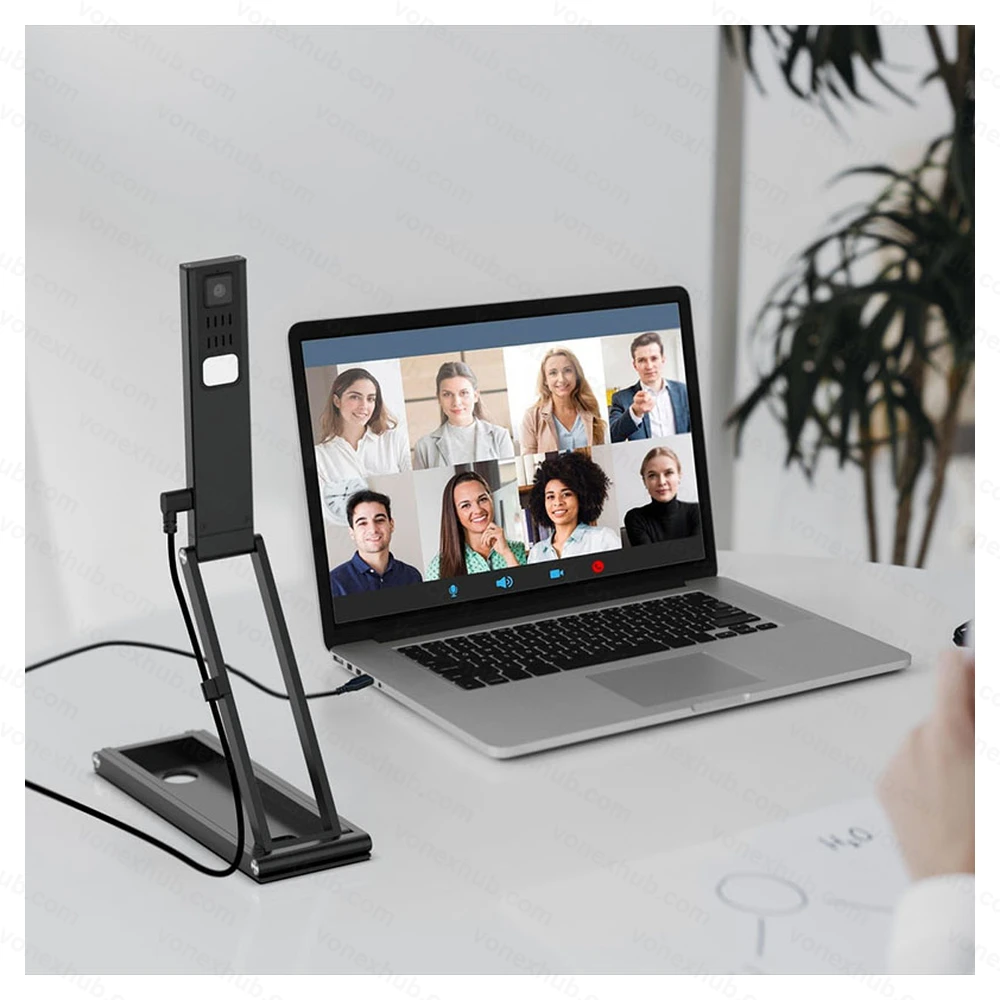

Multiple Operating Modes for Teaching & Meetings
Switch between document presentation and webcam-style communication to fit different teaching and conferencing scenarios.

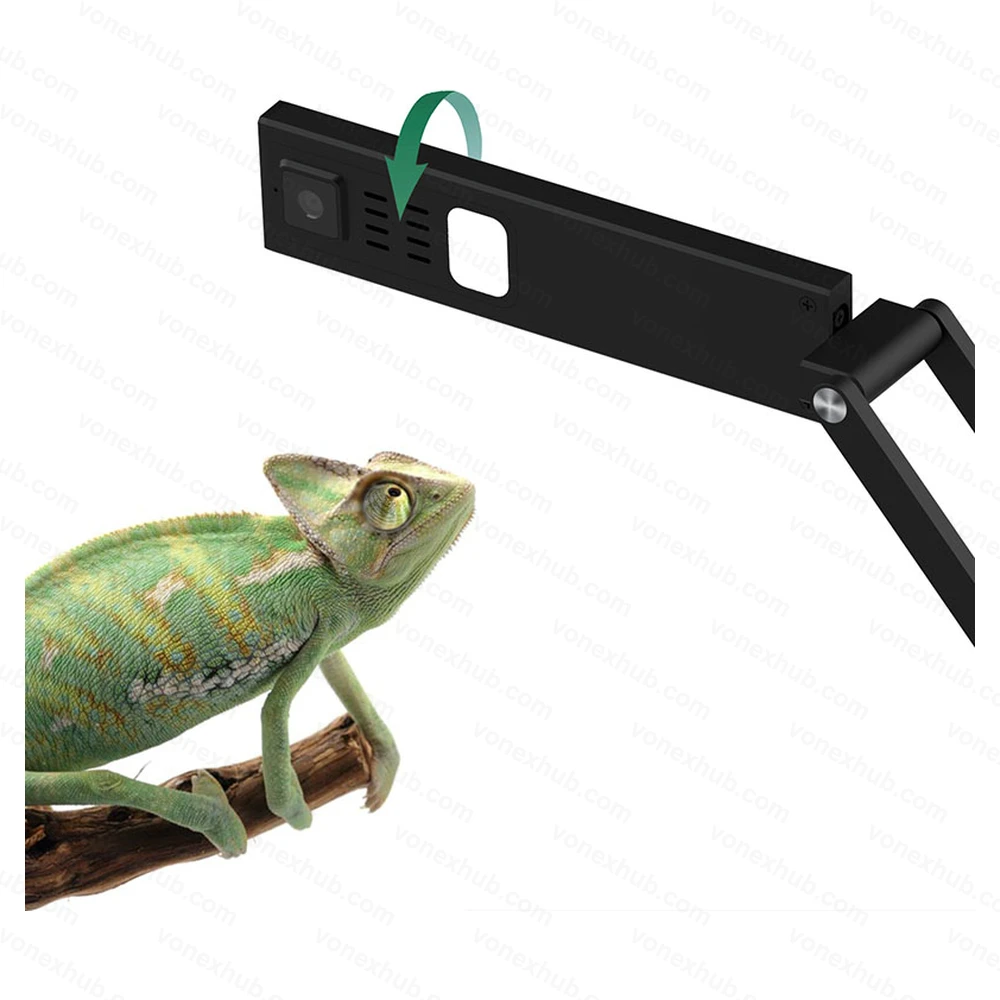

One Press to Focus and Flip
Ideal for classrooms and video conferencing. Press one button to flip the live image and quickly refocus on your face, textbook, or any object during a demonstration.

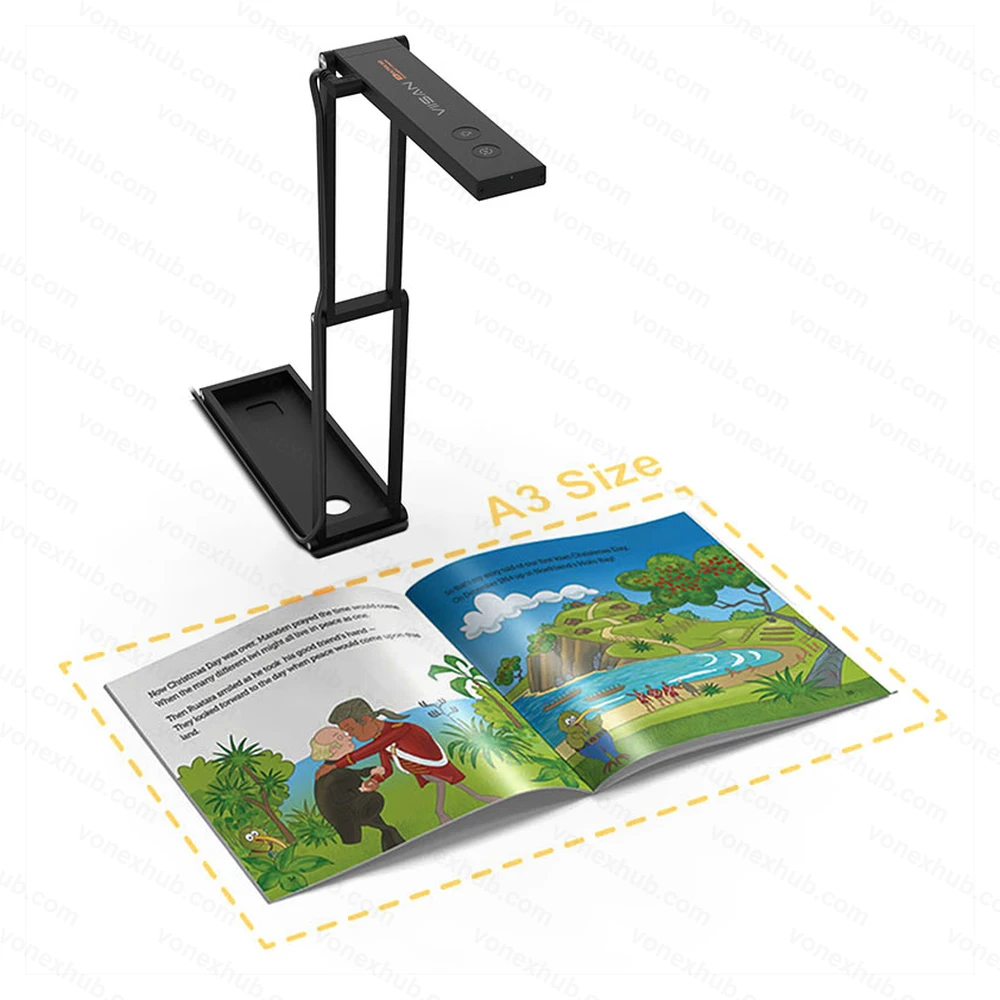

Large Capture Area for Documents & Books
Capture larger pages and teaching materials clearly for lectures, training, and online classes.
Interactive VisualCam Software
Enhance teaching with annotation tools, split-screen comparison, picture-in-picture recording, and an interactive whiteboard.
Viisan P4U Full Specifications
Camera
Image Sensor: 13 Megapixel 1/3″ CMOS
F/NO (Infinite): 2.2
Max. Output Resolution / FPS: MJPEG: 3840×2880@15fps, 3840×2160@30fps, 2560×1440@30fps, 2048×1536@30fps, 1600×1200@30fps, 1920×1080@60fps, 1280×720@60fps, 1024×768@30fps, 960×540@60fps, 640×480@30fps, 640×360@60fps; YUY2: 1280×720@10fps, 1024×768@10fps, 960×540@15fps, 640×480@30fps, 640×360@30fps
Zoom: Sensor Zoom 3X
Max. Shooting Area: 440mm x 330mm (at output 2048×1536)
Video Compression: MJPG, YUY2
Focus: Auto
Lamp: LED
Image Rotation: 0° / 180°
Support Power Line Frequency: 50/60 Hz
Audio
Microphone Sensitivity: 94dB SPL @1KHz (Min -29, Type -26, Max -23 dBFS)
Connectivity
Connectivity: Micro USB to Type A 2.0
Powered By: USB 2.0 5V/500mA
Protocol: UVC; UAC; Plug-and-Play
Physical
Dimensions (Expanded): 393 x 66 x 346mm (15 x 2.5 x 7.6 inch)
Dimensions (Closed): 195 x 66 x 13mm (7.6 x 2.5 x 0.5 inch)
Net Weight: 430g (1.05 lbs)
Software & Compatibility
Supported Operating Systems (UVC): Windows 10, Windows 8, Windows 7, macOS 10.10 or above, Chrome OS
Software: Interactive VisualCam Visualizer Software
