Elmo MX-P3 4K Document Camera
Model: MX-P3
Warranty: 3 years
Quick Specs:
- Image Sensor: 1/3.06″ CMOS
- Effective Pixels: 13M (4160 x 3120)
- Zoom: Digital x16
- Resolution: 4K (3840 x 2160) via USB/HDMI, FHD (1920 x 1080)
- Weight: Approx. 460g (Main Unit)
- Built-in Microphone: Yes
The ELMO MX-P3 Document Camera is a high-performance visualizer offering stunning 4K resolution, flexible design, and intuitive controls.
Perfect for classrooms, meetings, and presentations, it delivers crisp, detailed images with seamless connectivity for a dynamic, interactive experience.
Whether you’re displaying documents, 3D objects, or live demonstrations, the Elmo MX-P3 enhances engagement with ease and precision.
Elmo MX-P3 Key Features
True 4K Ultra HD Resolution
Capture and display documents, objects, and presentations in stunning 4K resolution at 30fps, ensuring crisp and clear visuals.
16x Digital Zoom
Get up close to fine details with a 16x digital zoom, perfect for showcasing intricate diagrams, small text, or detailed artwork.
13MP CMOS Sensor
Equipped with a 13-megapixel sensor (4160 x 3120), the Elmo MX-P3 delivers high-resolution imaging for accurate and detailed captures.
Multiple Connectivity Options
Connect seamlessly to various devices using HDMI, RGB/VGA, and USB 2.0 outputs. The MX-P3 also features an SD card slot for saving images and videos.
Built-in Microphone
Ideal for video conferencing or recording presentations, the integrated microphone captures clear audio without the need for external equipment.
Compact and Portable Design
Weighing only 550gram and measuring just 22mm in thickness, the MX-P3 is lightweight and foldable, making it easy to carry and store.
Flexible Arm with Magnetic Base
The flexible arm allows for versatile positioning, while the magnetic base ensures stability during use.
User-Friendly Controls
Operate the device effortlessly with intuitive buttons for zoom, focus, image rotation, and more, enhancing the user experience.
Compatibility with Multiple Operating Systems
The Elmo MX-P3 is compatible with Chrome OS, Windows, and macOS, ensuring broad compatibility across different platforms.
Elmo MX-P3 Full Specifications
Camera
Image Sensor: 1/3.06″ CMOS
Effective Pixels: 13M (4160 x 3120)
Zoom: Digital x16
Frame Rate: HDMI: 4K@30fps, FHD/720P/XGA@60fps; RGB: FHD/XGA@60fps; USB: 4160×3120@15fps, 4K/FHD@30fps
Lens / Max Aperture: F=2.0
Focus Range: 100mm ~ ∞
Focus Control: Auto (One push)
Shooting Area: 374 x 281mm @ Aspect 4:3
Resolution: 4K (3840 x 2160) via USB/HDMI, FHD (1920 x 1080)
User Interface
Zoom Key: Yes
Auto-focus Key: Yes
Lighting: White LED
Foldable Mechanical Arm: Yes
Adjustable Arm / Head: Yes / Yes, Mechanical
Integrated Stage: (Option)
Image Rotation: 0° / 180°
Freeze: Yes, by PC software
Annotation: Yes, by PC software
Comparison: Yes, by PC software
Mask: Yes, by PC software
Recording: Yes, onto PC/SD
Optional Apps: ImageMate4 for Windows, ELMO Interactive Toolbox (EIT) for Windows and Mac. Available at www.elmoeurope.com

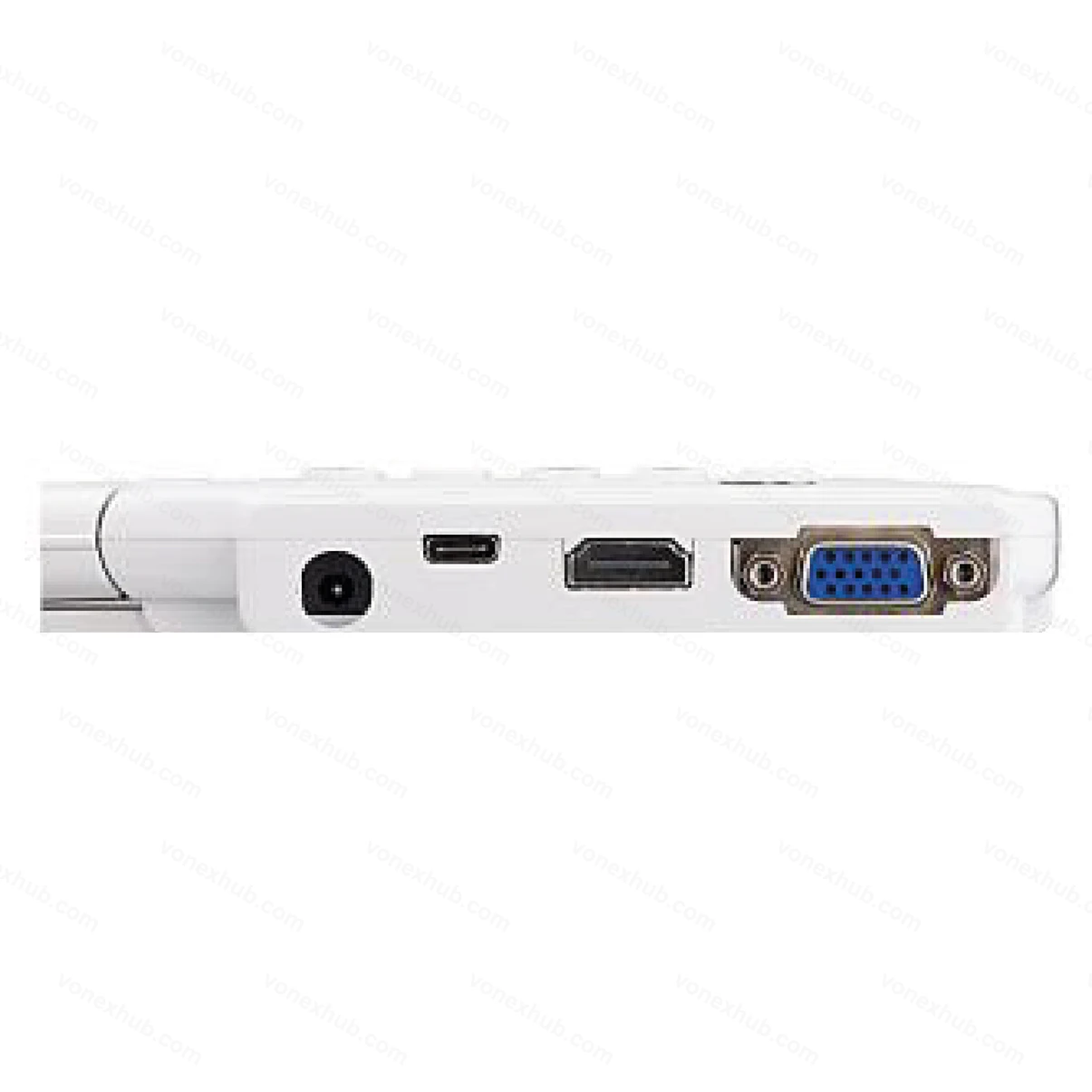

Technical Interface
USB: X1 (Type-C, Version 2.0)
HDMI: OUT X1 (Type A, Version 1.4)
RGB: OUT X1
SD Slot: X1 (Recording only. No playback.)
Others
Built-in Mic: Yes
Security Lock Slot: Yes
Power: DC5V, External Power Supply
Power Consumption: 2.5W (USB), 6W (HDMI/RGB)
Dimensions: (Set-up) W343 x D82 x H302mm / (Folded) W290 x D82 x H22mm
Weight: Approx. 460g (Main Unit)
Accessories: USB Cable, AC Adapter, Instruction Manual
Optional Accessories
Whiteboard Stage: Yes
CRA Tablet: Yes, by PC software
Microscope Attachment: Yes
