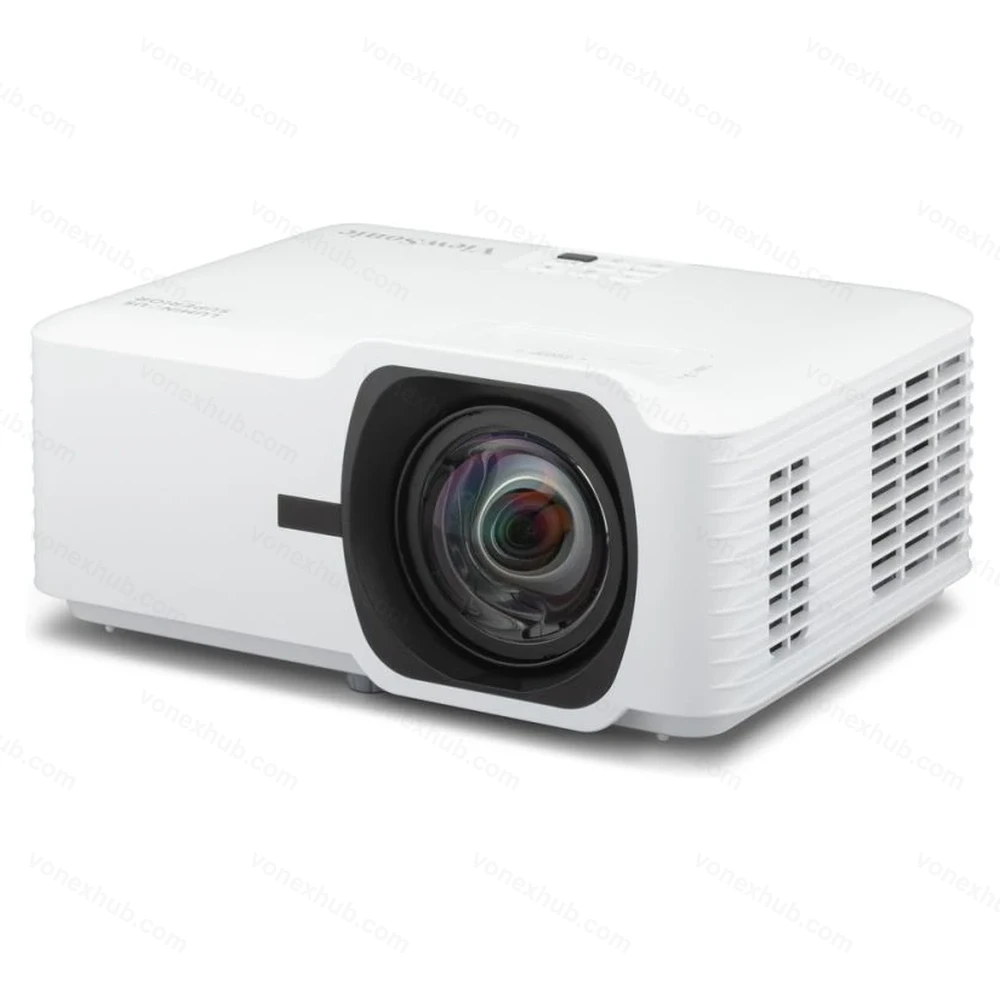

ViewSonic LSD400HD-ST Laser DLP Short Throw Projector 4000 Lumens 1080p
Model: LSD400HD-ST
Warranty: 3 years on-site (parts and labor)
“On-site” warranty means on-site pick and drop service only. It is not applicable to locations out of Singapore’s main island.
Please note: the ViewSonic LSD400HD-ST is supplied without a carrying case as standard. An optional ViewSonic Carrying Case (PJ-CASE-008) is available as an add-on above for safer transport and storage.
Quick Specs:
- Brightness: 4,000 ANSI Lumens (4,800 Center Lumens)
- Native Resolution: 1920×1080 (1080p Full HD)
- Contrast Ratio: 3,000,000:1
- Light Source: Laser Phosphor (20,000 hrs Normal / up to 30,000 hrs SuperEco)
- Throw Ratio: 0.5 (Short Throw)
- Net Weight: 3.1kg
The ViewSonic LSD400HD-ST is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. Powered by 3rd-generation laser phosphor technology, it provides 4,000 ANSI Lumens of brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing up to 59% power consumption than competing lamp projectors.
With a 0.5 short throw, the ViewSonic LSD400HD-ST delivers a 100″ image from just 1.1 meters, ideal for immersive visuals in space-constrained environments. Delivering ultra-large projections up to 300″ in sharp 1080p Full HD resolution, this projector leverages high native contrast from a 0.65″ DMD chip with DLP technology.
Equipped with H/V keystone & 4 corner correction, and 360° projection, the LSD400HD-ST supports flexible installation options, making it an excellent choice for golf simulation setups, exhibitions, and retail applications.
3rd-gen Laser Phosphor Technology
The ViewSonic LSD400HD-ST incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
4,000 ANSI Lumens, 1080p FHD
Delivering 4,000 ANSI Lumens, the LSD400HD-ST projects vibrant, razor-sharp images in 1080p Full HD, making it ideal for golf simulators, exhibitions, and retail environments.
0.5 Short Throw Ratio
Enjoy large images even in small spaces with a 0.5 short throw ratio. Capable of projecting a 100″ screen from just 1.1 meters away, the LSD400HD-ST allows flexible installation—delivering immersive golf simulation experiences from the comfort of your home.
0.65″ DMD Chip, High Native Contrast Ratio
Experience enhanced visuals with the ViewSonic LSD400HD-ST, boasting high contrast thanks to DLP technology and an advanced 0.65″ DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.
Less Power Consumption
With its advanced lamp-free light source, the LSD400HD-ST offers a highly energy-efficient and cost-saving display solution by consuming up to 59% less power than competing projectors.
Filter-free, Sealed Engine (IP6X)
With DLP technology, the LSD400HD-ST maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design (IP6X), it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.
H/V Keystone Correction, 4-corner Adjustment
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
360° Projection, 90° Portrait Mode
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
Comprehensive LAN Control
The ViewSonic LSD400HD-ST is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Golf Color Mode
Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.
ViewShare, USB-A Power Supply
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector’s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *ViewShare sold separately.
ViewSonic LSD400HD-ST Specifications
Projection System: 0.65″ 1080P
Native Resolution: 1920×1080
Brightness: 4000 (ANSI Lumens)
Brightness (Center Lumens): 4800
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.8, f=7.51mm
Projection Offset: 132%+/-10%
Throw Ratio: 0.5
Optical Zoom: Fixed
Digital Zoom: 0.8x-2.0x
Image Size: 40″-300″
Throw Distance: 0.44-3.29m (100″@1.10m)
Keystone: H:+/-15°, V:+/-15°
Audible Noise (Normal): 32dB
Audible Noise (Eco): 27dB
Input Lag: 16.7ms
Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 24-120Hz

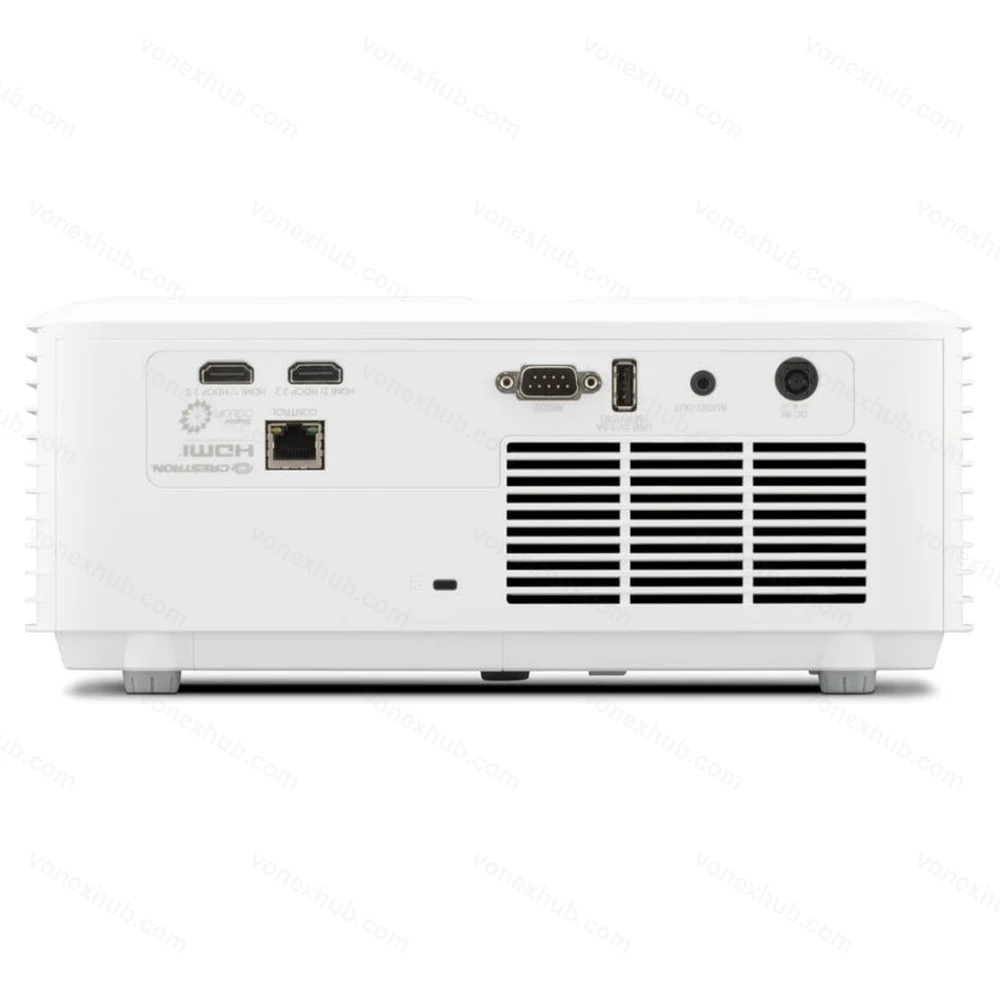

HDMI Input: 2 (HDMI 2.0, HDCP 2.2)
Audio-out (3.5mm): 1
Speaker: 15W
USB Type A (Power): 1 (5V/1.5A)
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type A (Services): 1 (share with USB A Output)
Power Supply Voltage: Power adaptor, Input: 100~240V, Output: 19.5VDC / 9.23A
Power Consumption: Normal: 143W, Standby: <0.5W
Operating Temperature: 0~40°C
Net Weight: 3.1kg (6.83 lbs)
Gross Weight: 4.6kg (10.14 lbs)
Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm (11.3×8.5×5.1 in)
Packing Dimensions: 400x280x155mm (15.7x11x6.1 in)
Standard Accessories: Power Cord (1), Remote Control (1), Quick Start Guide, Lens Cover
Optional Accessories: Wall/Ceiling Mount (PJ-WMK-305), Carry Bag (PJ-CASE-008)
