Optoma ZU500USTe DLP Projector 5000 Lumens WUXGA
Model: ZU500USTe
Warranty: 3 years
Quick Specs:
- Brightness: 5,000 lumens
- Resolution: WUXGA (1920 x 1200)
- Contrast Ratio: 100,000:1 (3,000,000:1 dynamic)
- Light Source: DuraCore Laser (30,000 hours)
- Weight: 5.7 kg (net)
The Optoma ZU500USTe is powered by long-lasting, low maintenance DuraCore laser light source. The lamp-less and filter-free design vastly reduces running costs for a lower total cost of ownership.
Weighing only 5.7kg, the Optoma ZU500USTe can be mounted just centimetres away from a wall or surface.
Supporting 24/7 operation and versatile orientation, the Optoma ZU500USTe is a flexible, powerful and bright ultra short throw projector that makes for a superb signage solution where space or accessibility can be limited, such as shop windows or retail displays.
Optoma ZU500USTe Key Features
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
Ultra Short Throw
With an ultra-short throw lens, you can project an impressive image greater than 100” from less than a metre away. This allows you to place the Optoma ZU500USTe closer to the wall, reducing shadows so you can present with ease; perfect for interactive applications.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer.
Extron IPLink compatible
Allows for easy installation with Extron control systems.
Four Corner Correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for uneven walls or where projector placement is awkward and needs to be installed at an angle.
Integrated Speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
Auto Power Off
There may be instances when the projector is left running when not in use. To help save energy, the “auto power off” feature automatically turns off the projector after a set period of time if it is not being used.
Direct Power On
The Optoma ZU500USTe will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
24/7 Operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.
Direct Power Off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.
Superior Contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear – ideal for business and education applications.
Amazing Colour
The Optoma ZU500USTe provides reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
AV Mute
Stay in control of your presentation with AV mute. Direct your audience’s attention away from the screen by blanking the image when not needed.
IP5X Dust Resistant Optical Engine
Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Full 3D
The Optoma ZU500USTe can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.
Optoma ZU500USTe Specifications
Display / Image
Display technology: DLP™
Resolution: WUXGA (1920×1200)
Brightness: 5,000 lumens
Contrast ratio: 100,000:1
Contrast ratio – dynamic: 3,000,000:1
Native aspect ratio: 16:10
Aspect ratio – compatible: 16:9, 16:10
Keystone correction – horizontal: 15°
Keystone correction – vertical: 15°
Uniformity: 85%
Screen size: 3.39m ~ 3.91m (133.5″ ~ 154.1″) diagonal
Lamp Info
Light source type: Laser
LASER life: 30,000 hours
Optical
Throw ratio: 0.253:1
Projection distance: 0.727m – 0.84m
Zoom type: Fixed
Focal length: 3.7mm/0.146″
Native offset: 117%

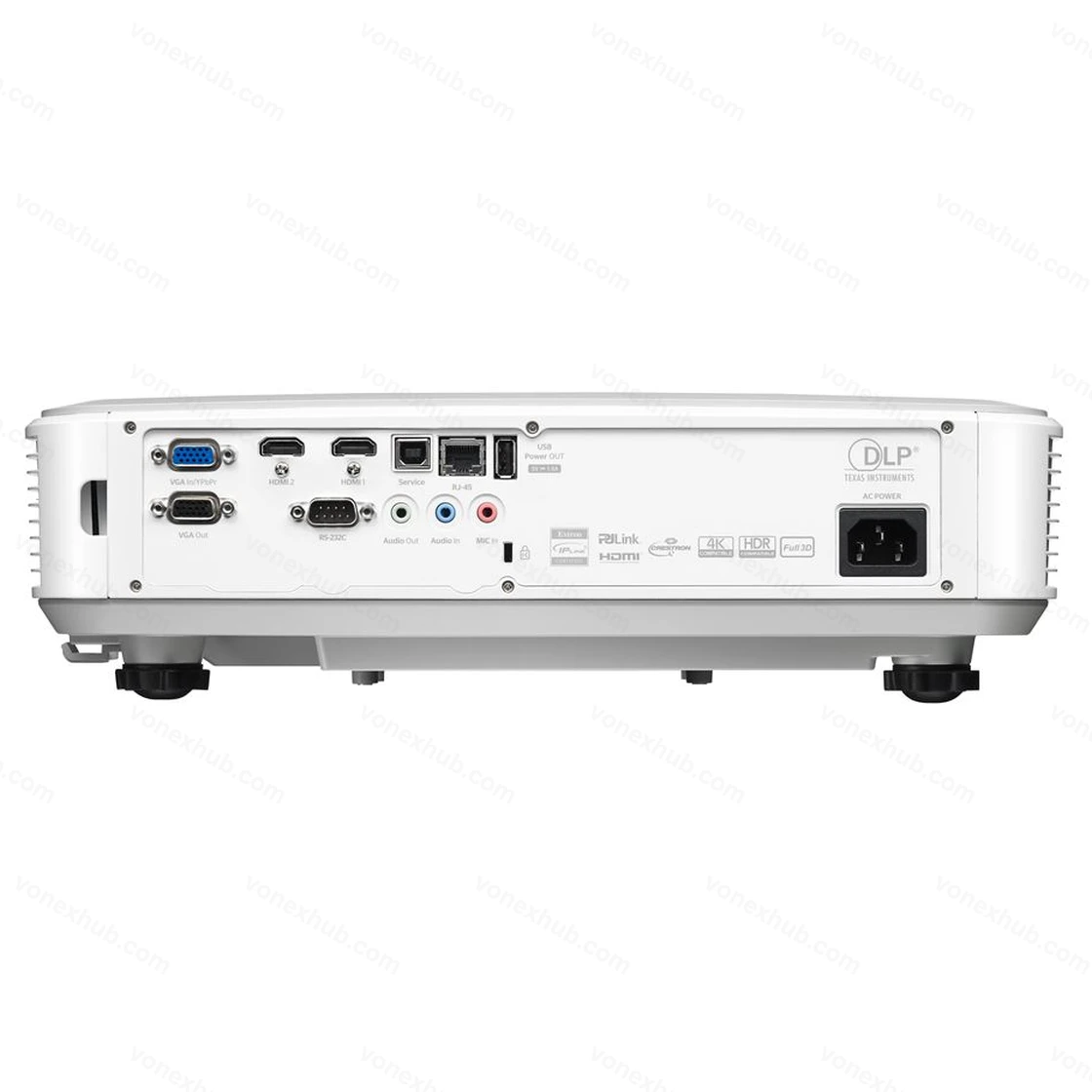

Connectivity
Inputs: 2 x HDMI 2.0, 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm, 1 x Mic 3.5mm
Outputs: 1 x VGA, 1 x Audio 3.5mm, 1 x USB-A power 1.5A
Control: 1 x RS232, 1 x RJ45, 1 x USB-B service
General
Noise level (min): 33dB
Noise level (max): 35dB
PC compatibility: FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility: NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility: Side-by-Side: 1080i50/60, 720p50/60; Frame-pack: 1080p24, 720p50/60; Over-Under: 1080p24, 720p50/60
3D: Full 3D
Security: Security bar, Kensington Lock, Password protected interface
IP rating: IP5x
24/7 operation: Yes
Operating conditions: 5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
Remote control: Backlit ProAV remote
Heat dissipation: 1,608BTU/hour
Speaker count: 1
Watts per speaker: 10W
In the box: AC power cord, Remote control
Networking
LAN – control: Yes
LAN: Yes
Power
Power supply: 90 ~ 264V, 50 ~ 60Hz
Power consumption (standby): 0.5W
Power consumption (min): 260W
Power consumption (max): 328W
Weight and Dimensions
Dimensions (W x D x H): 383 x 318 x 88 mm
Gross weight: 7.8 kg
Net weight: 5.7 kg
