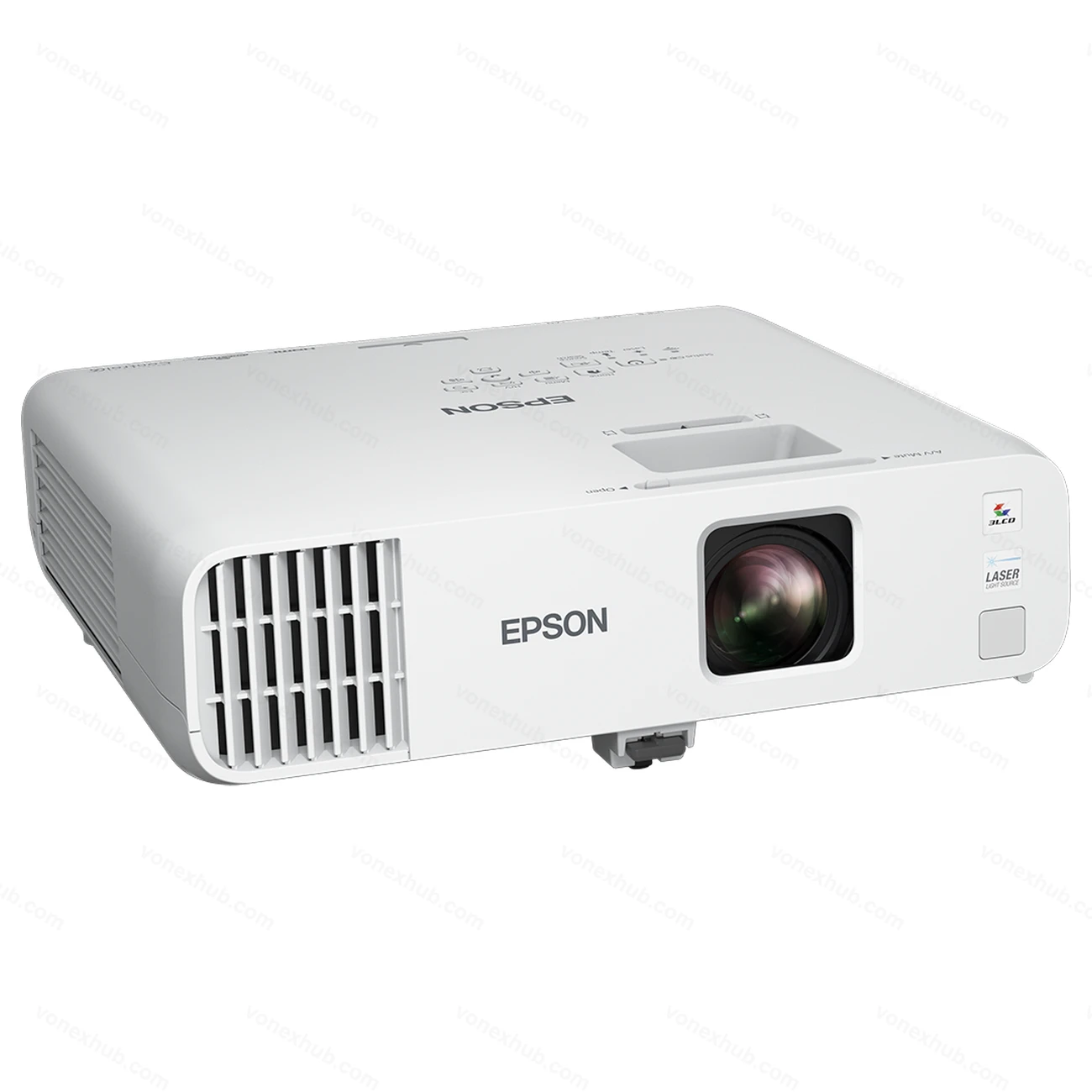

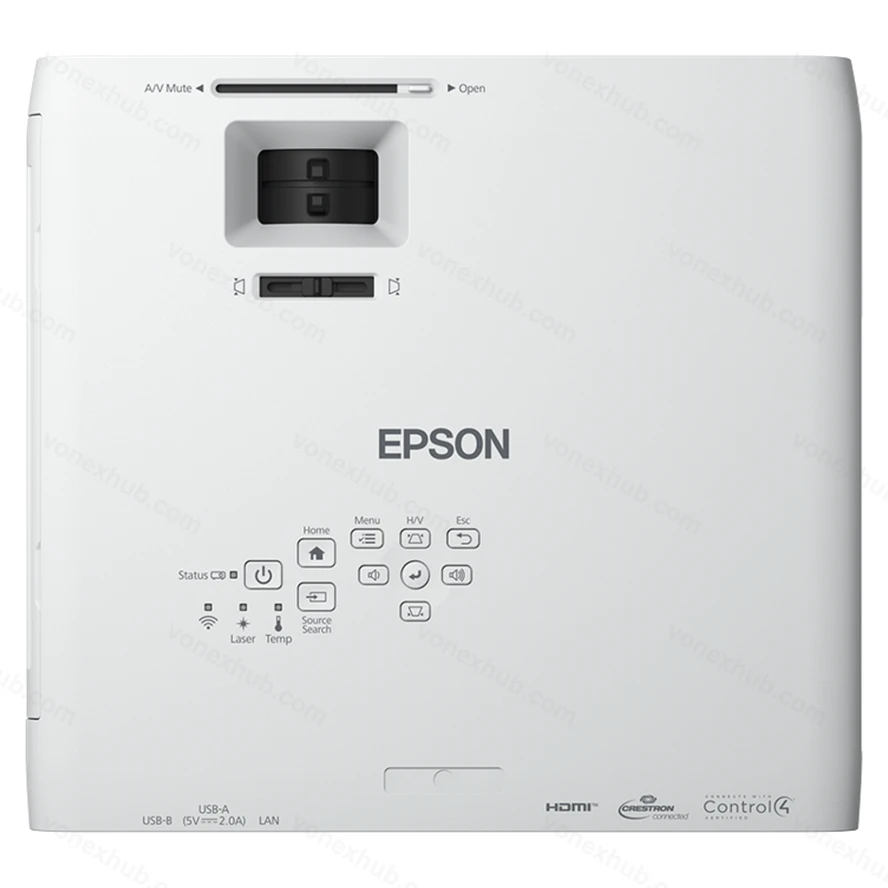

Epson EB-L270F Laser 3LCD Projector 5200 Lumens 1080p
Model: EB-L270F
Warranty: 36 months Carry-In Service or 12,000 operating hours, whichever is earlier
Quick Specs:
- Brightness: 5,200 lumens (colour and white)
- Resolution: Full HD 1080p (1920 x 1080)
- Contrast Ratio: Over 5,000,000:1
- Projection Technology: 3LCD
- Light Source: Laser, 20,000/30,000 hrs (Normal/Eco)
- Weight: 4.2kg
Bring immersive displays to the classroom, conference room and beyond with the Epson EB-L270F laser projector. Ideal for displaying engaging lesson content, impactful presentations and more, the Epson EB-L270F offers stunning 1080p image quality and 5,200 lumens of colour and white brightness, with noticeably higher brightness than the Epson EB-L260F for larger or brighter venues.
Designed for convenience, the EB-L270F provides flexible aspect ratios, a large image size up to 310″ and a 30,000-hour virtually maintenance-free laser light source for simple, dependable performance.
A feature-packed solution, the EB-L270F offers optional wireless connectivity with casting capability—including Miracast support—when used with a separate wireless LAN module, enabling convenient content sharing. In addition, the moderator feature via iProjection app keeps teachers in control.
Bright, True-to-Life Visuals
With 3-chip 3LCD technology and 5,200 lumens of colour and white brightness.
Incredible Image Quality
High Definition 1080p resolution at an exceptional value.
Versatile Widescreen Display
Up to 16:6 aspect ratio, up to 310″ diagonal and split-screen capability for side-by-side viewing.
No Lamps to Replace Ever
30,000-hour virtually maintenance-free laser light source.
Built-in Wired Network Connectivity
Integrated RJ45 network connection helps ensure fast, stable network performance.
Optional Wireless
Easily connect and mirror your screen via Miracast or Epson iProjection using an optional wireless LAN module (sold separately).
Epson EB-L270F Specifications
Main Specifications
White Brightness (ISO 21118): 5,200 lm
Colour Brightness (IDMS 15.4): 5,200 lm
Resolution: Full HD (1080p)
Contrast Ratio: Over 5,000,000:1
Throw Ratio (Zoom:Wide-Zoom:Tele): 1.32 – 2.12
Screen Size (Wide): 31″ to 310″ [88cm to 906cm]
Screen Size (Tele): N/A
Keystone (Vertical and Horizontal): ±30°(V) ±30°(H)
Auto Keystone: Yes
Content Playback: Yes

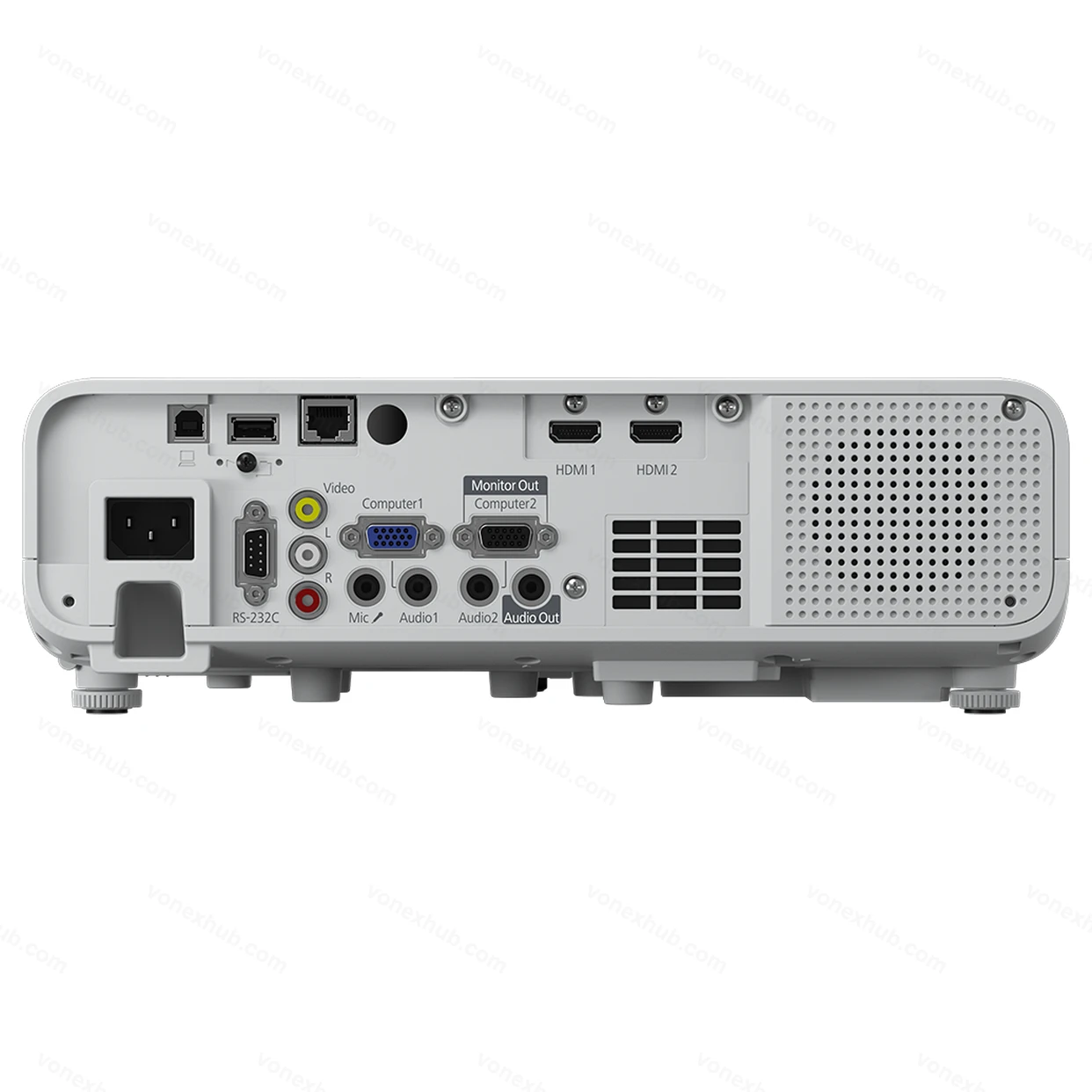

Input Terminals
D-Sub15 (VGA): 2
Composite Video (RCA): 1
HDMI: 2 (HDCP2.3)
USB: A x1, B x1
Audio Input (RCA/Stereo Mini Jack): 1 / 2
MIC-Input: 1
Output Terminals
Monitor-Out: 1 (Share with Computer2)
Audio-Out: 1
Network
Network (LAN RJ45): 1
Wireless: Optional
Control
RS-232C: 1
Supported Wireless
Miracast: Yes
Light Source
Light Source Type: Laser
Light Source Life (Normal/Low*): 20,000 / 30,000 hrs
Direct Power On / Off
Yes / Yes
Power
Power (Normal/Low*) Consumption: 278W / 209W
Network Standby (On/Off): 2.0W / 0.5W
Power Supply: 100-240V AC +/- 10%, 50/60Hz
Operating Temperature and Altitude
Operating Temperature (low altitude): 0°C to 40°C [32°F to 104°F]
Operating Temperature (high altitude): 0°C to 35°C [32°F to 95°F]
Operating Altitude (Over 1,500m/4,921ft): 0m to 3048m [0ft to 10000ft] with High altitude mode
Start-up and Cool-down
Start-Up Period: Less than 9 seconds (Epson Logo)
Quick Startup: Less than 5 seconds (Display)
Warm-Up Period: 30 seconds
Cool-down Period: Instant Off
Speaker
Speaker Wattage: 16 W Mono
Bundled Accessories
Power Cable: 1.8m, 3 wire
HDMI Cable: 1.8m
Remote Control with Battery: Yes, with AA x2 battery
Quick Start Guide: Yes
Weight and Dimension
Dimension Excluding Feet (WxDxH): 325 x 299 x 90 mm
Maximum Dimension (WxDxH): 325 x 299 x 105 mm
Weight (kg): 4.2kg
Optional Accessories
Soft Carrying Case: ELPKS71
Optional Wireless LAN Dongle: ELPAP11
Ceiling Mount: ELPMB23, ELPMB60W (White), ELPMB60B (Black)
Air Filter: ELPAF60
Document Camera: ELPDC21, ELPDC30
Fan Noise
Fan Noise (Normal / Eco): 38dB / 28dB
Wireless Specification (Screen Mirroring)
Supported Speed for Each Mode (Access Point / Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps
IEEE 802.11n (2.4GHz): 72.2 Mbps
IEEE 802.11a (5GHz): 54 Mbps
IEEE 802.11n (5GHz): 150.0 Mbps
IEEE 802.11ac (5GHz): 325 Mbps
Supported Mode: Access Point (Wi-Fi Direct)
Supported Security: Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Wireless Specifications (Optional Wireless LAN)
Supported Speed for Each Mode (Access Point / Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps
IEEE 802.11n (2.4GHz): 72.2 Mbps
IEEE 802.11a (5GHz): 54 Mbps
IEEE 802.11n (5GHz): 150.0 Mbps
IEEE 802.11ac (5GHz): 325 Mbps
Supported Mode: Access Point (Wi-Fi Direct)
Supported Security: Access Point (Wi-Fi Direct): WPA2-PSK (AES)
