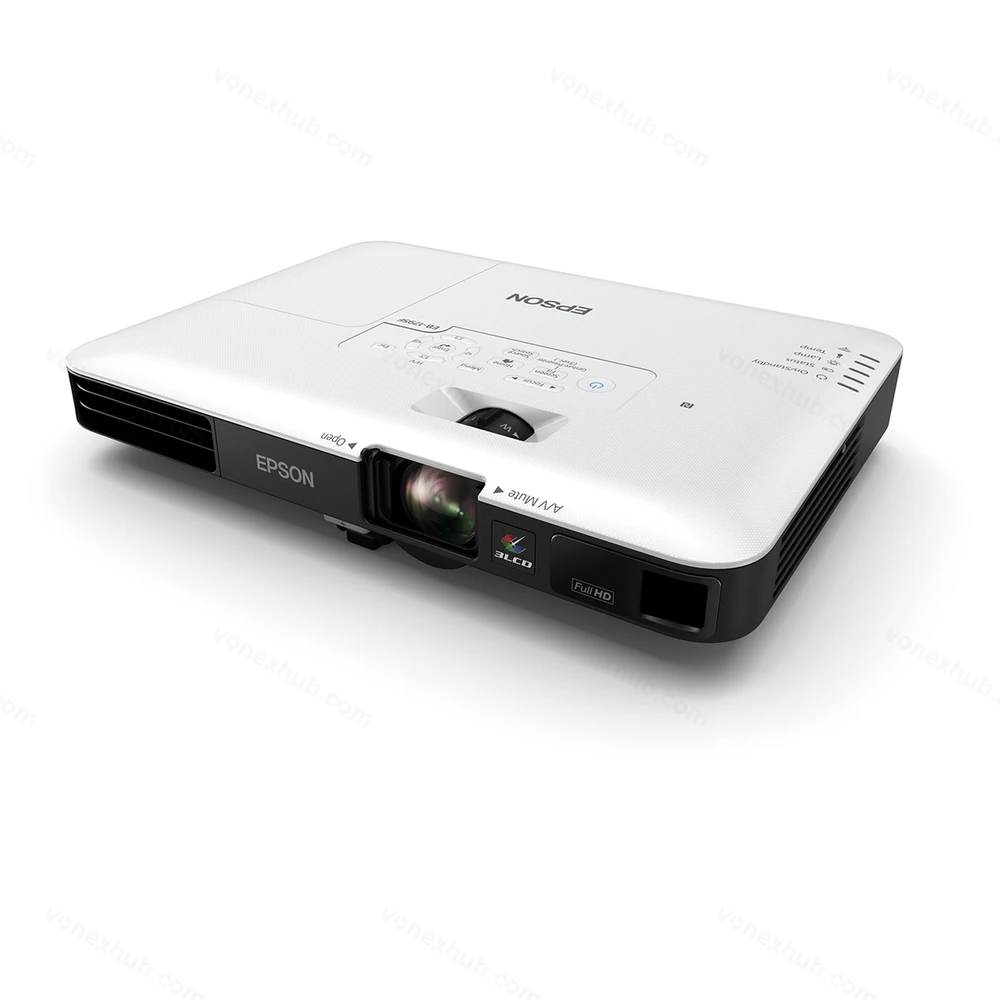

Epson EB-1795F 3LCD Projector 3200 Lumens 1080p
Model: EB-1795F
Warranty: 2 years Parts & Labor Carry-In for Projector Main Unit; 1 year or 1,000 hours (whichever comes first) for initial/replacement Lamp Kits
Quick Specs:
- Brightness: 3,200 Lumens Colour Light Output / 3,200 Lumens White Light Output
- Resolution: 1080p (1920 x 1080)
- Projection Technology: 3LCD
- Contrast Ratio: 10,000:1
- Lamp Life: 4,000 hours (Normal) / 7,000 hours (ECO)
- Weight: Approx. 1.8 kg
Epson EB-1795F Overview
Remarkable 3LCD Projection At Only 44mm Slim: the Epson EB-1795F packs superior imaging quality along with a suite of connectivity and usability features into a body weighing only 1.83kg and 44mm slim. Wirelessly connect your smart devices to the projector via Wi-Fi, Miracast, iProjection application or NFC technology. The EB-1795F comes with Gesture Presenter technology, which allows you to transit between slides without a clicker. Lastly, with Epson’s 3LCD technology that delivers up to 3 times wider colour gamut and brightness, you can astound audiences anywhere you go.
The world’s slimmest, ultra-portable, 3LCD projector is engineered with convenience in mind. Weighing at most 1.83kg and 44mm thick (excluding the feet), the Epson EB-1795F make mobile presentations easy and hassle free, With up to 3,200 lumens colour and white light output, you can enjoy bright and vibrant images indoors and outdoors.
The EB-1795F is designed with three grip lines at the edges, making them easier and safer to transport. With the projector small footprint, you can carry the Epson EB-1795F in a laptop bag to deliver impactful presentations on the move.
Epson EB-1795F Key Features
iProjection App Compatible
Wirelessly project from your iPhone®, iPad®, iPod® Touch or Android mobile device.
HDMI Connectivity
Includes all-digital, HDMI audio and video connection, for HD quality with just one cable.
Ease-of-Presentations with Gesture Presenter
Users can control their presentations conveniently by moving their hands to a white floating marker at the bottom right side of the projection screen. This simple gesture allows users to change to the next slide without using a clicker.
NFC-connectivity iProjection
Activate iProjection app seamlessly with the NFC connectivity on your Android smart devices. Simply place them on top of the projector and the iProjection app will be opened.
iProjection App for Mobile Devices
The iProjection app enables both iOS and Android devices to easily connect to the projector. You can use iProjection to wirelessly project various documents, photos and web pages, and draw on the device screen and share on projection. To connect, search for the projector in your local network or simply scan a QR code displayed on the projector screen. Remote control function is also built into iProjection so you can use the app to control projector functions. In addition, iProjection now supports screen mirroring (without audio) from devices running on Android 5.0 and above.
* In iProjection, projector profile search, multi-screen display, distribution function, audio transfer, movie file transfer, interrupt connection disabling and encryption data transfer capabilities are not supported.
Flexibility Set-up
The Epson EB-1795F provide more advanced, real-time auto vertical and horizontal keystone correction. You can conveniently position the projector anywhere in the room. Simply turn on the power and direct the projector towards the screen or wall, and the image will be corrected automatically in no time.
Convenient Wireless Mirroring Projection
Project contents wirelessly from compatible smart devices and laptops without any software installation with the Miracast. The technology enables easy wireless transmission of Full HD video and sound from PCs and smart devices, eliminating the hassle of a physical connection and eradicating issues with setting up. With support for screen mirroring, projecting your tablet and laptop screens has never been easier.
Quick Corner
With the quick corner feature, you can use the keystone correction and lens shift function simultaneously for maximum projection without have to worry about unintentionally changing the aspect ratio.
Split Screen
Split screen allows inputs from two separate sources to be displayed side by side on the same screen. In a video conference, for example, images of presentation materials and remote participants can be shown simultaneously.
Auto Power On
With the auto power on function, projection starts automatically once a projection signal is detected via VGA cable, providing you with an easy and hassle-free presentation.
Auto Source Search
With automatic detection of input source, projection automatically begins without you having to manually switch the input.
Wireless Transmission
Enjoy enhanced connectivity and flexibility with in-built Wi-Fi* connectivity. Easily share and transmit images, texts and files from your smart devices using the “Epson iProjection” application for smooth and smart projections.
Home Screen
View and access your most frequently used functions immediately on the home screen. See all source information at a glance, no matter what the source input. With all the information you need right there on the home screen, wireless connections have never been easier.
Better Products for a Better Future™
For more information on Epson’s environmental programme, visit http://global.epson.com/SR/environment
What’s in the Box
- Power Cable: 3m
- Computer Cable (VGA Cable): 1.8m
- USB Cable (Type A/B): 3m
- Remote Control: Yes, with Alkaline AA Battery
- Soft Carrying Case
- Bundled Software: CDROM
- Projection Software
- Password Protect Sticker
- Warranty Sheet
Epson EB-1795F Specifications
Projection Technology
RGB liquid crystal shutter projection system
Brightness
White Light Output (Normal): 3,200lm
Colour Light Output (Normal / Eco): 3,200lm / 1,900lm
Contrast Ratio
10,000:1
Optical
Throw Ratio: 1.02 – 1.23:1
Zoom: Manual, Factor 1 – 1.2
Screen Size: 30 inches – 300 inches
Projection Distance Wide: 0.7 m – 6.8 m
Projection Distance Tele: 0.8 m – 8.2 m
Projection Distance (60″ screen): 1.35 m – 1.62 m
Projection Lens F Number: 1.58 – 1.7
Projection Lens Focal Length: 13.52 mm – 16.22 mm
Projection Lens Focus: Motorized
Offset: 10 : 1
Keystone Correction: Auto vertical ±30°, Auto horizontal ±20°

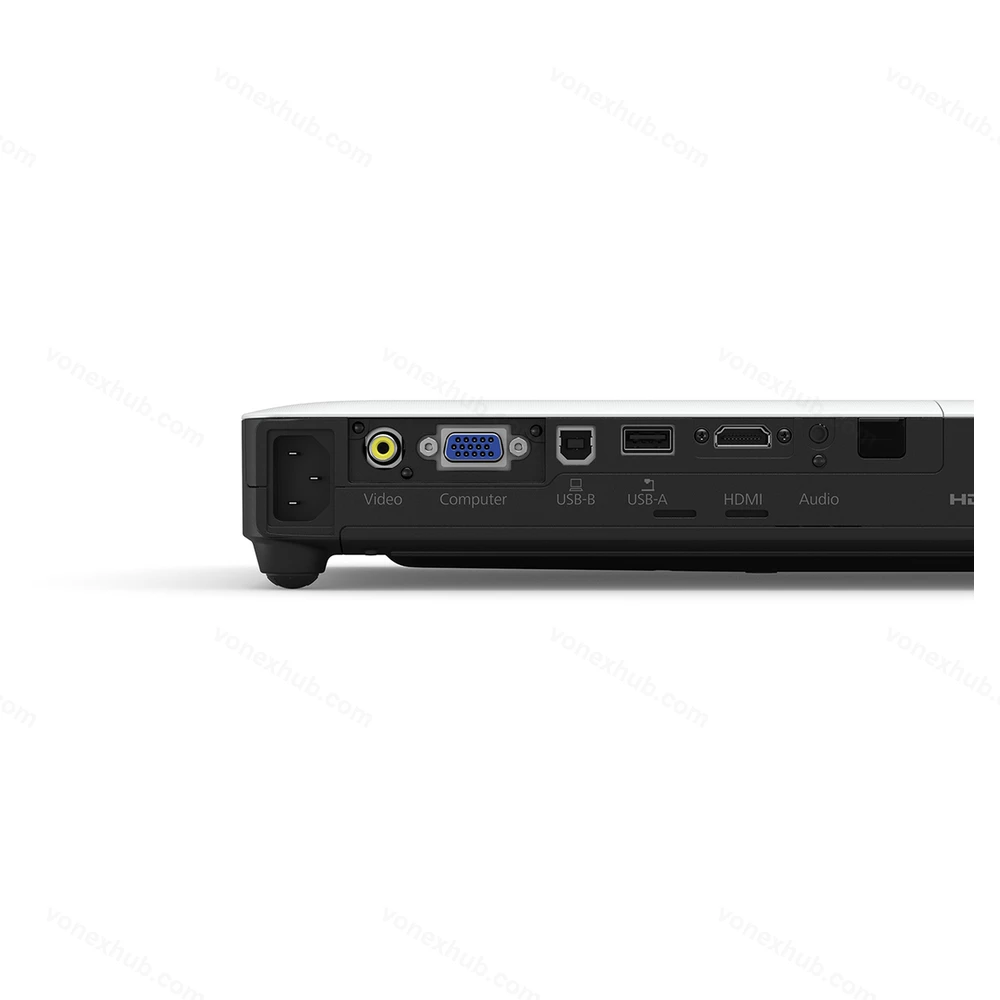

Connectivity
Network: Wireless LAN; In-built
Analog Input: D-Sub 15 pin; 1 (Blue), Composite; RCA x 1
Digital Input: HDMI; 1 (MHL)
Audio Input: Stereo Mini Jack: 1
Others: USB Type A: 1 (for USB Memory, USB Document Camera, Firmware Update), USB Type B: 1 (for USB Display, mouse, K/B, Control, Firmware Update)
Wireless Specifications (Wireless LAN: Built-in)
Supported Speed for Each Mode: IEEE 802.11b: 11 Mbps, IEEE 802.11g: 54 Mbps, IEEE 802.11n: 130.0 Mbps
Wireless LAN Security: Quick Mode: WPA2-PSK; Advanced Mode: WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
Supported Connection Mode: Infrastructure, Access Point
Wireless Specifications (Miracast)
Supported Speed for Each Mode: IEEE 802.11g (2.4GHz): 54 Mbps, IEEE 802.11n (2.4GHz): 130.0 Mbps, IEEE 802.11a (5GHz): 54 Mbps, IEEE 802.11n (5GHz): 270.0 Mbps, IEEE 802.11ac (5GHz): 780 Mbps
Supported Connection Mode: Wi-Fi Direct
Advanced Features
Security: Kensington lock, Wireless LAN security, Password protection
2D Colour Modes: Dynamic, Cinema, Presentation, sRGB, Blackboard, DICOM SIM
Video Colour Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM
Colour Video Processing: 10 Bits
2D Vertical Refresh Rate: 100 Hz – 120 Hz
On-Screen Pixel Count: 2,073,600
Aspect Ratio: 16:9
Resolution Enhancement: Full HD
Other Features: AV Mute Slide, Built-in speaker, Document Camera Compatible, Fit to Screen, Gesture Presenter, Home Screen, Instant on/off, JPEG Viewer, Long lamp life, MHL audio/video interface, PC Free, Projection App for Chromebook, Quick Corner, Screen Mirroring, Split-Screen Function, Wireless LAN capable, iProjection App
Lamp
Light Source: 214 W
Durability: 4,000 hours, 7,000 hours (economy mode)
Internal Speaker(s)
Sound Output: Monaural: 1W X 1
Direct Power On/Off
Yes/Yes
Start-Up Period
About 7.2 seconds, Warm-up period: 30 seconds
Cool Down Period
Instant off
Fan Noise
Normal / Eco: 39 dB / 30dB
Operating Temperature
5°C – 40°C <41°F – 104°F> (0m / 0ft to 2,286m / 7,500ft)
5°C – 35°C <41°F – 95°F> (over 2,286m / 7,500ft) (20% – 80% humidity, no condensation)
Operating Altitude
0m – 3,000m (0ft – 9,843ft) (over 1,500m / 4,921ft: with high altitude mode)
Power
Power Consumption: 268 Watt (Normal On-Mode), 188 Watt (Eco On-Mode), 295 Watt (Normal Peak-Mode), 208 Watt (Eco Peak-Mode), 0.34 Watt (Energy saving standby)
Supply Voltage: AC 100V – 240V, 50Hz – 60Hz
Dimension Excluding Feet (W x H x D)
292mm x 44mm x 213mm
Weight
1.8 kg
Room Type / Application
Large Meeting Room/Boardroom, Huddle space / Portable, Auditorium
Positioning
Ceiling Mounted, Desktop
Colour
White / Black
