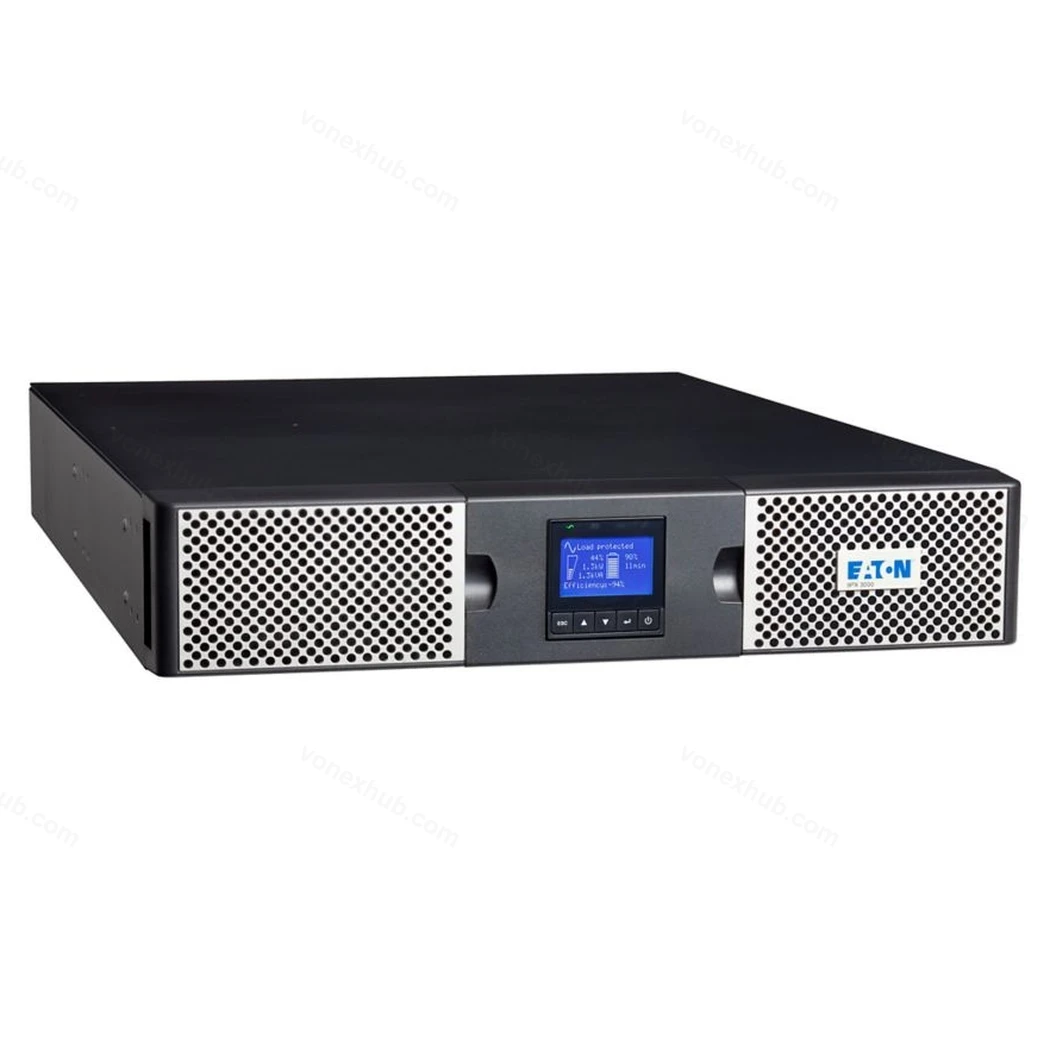

Eaton 9PX UPS, 2200 VA, 2200 W, Input: C20, Outputs: (8) C13, (2) C19, Rack/tower, 2U
Model: 9PX2200IRT2U
Eaton 9PX2200IRT2U Specifications
General Specifications
| Product Name | Eaton 9PX UPS |
|---|---|
| Catalog Number | 9PX2200IRT2U |
| UPC | 743172081360 |
| Product Length/Depth | 60.5 cm |
| Product Height | 8.65 cm |
| Product Width | 44 cm |
| Compliances | CE Marked TUV cULus Listed CSA 22.2 FCC part 15 Class B CISPR22 Class B |
| Certifications | cULus Listed EAC CE ENERGY STAR certified IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 |
Battery
| Battery management | ABM & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units |
|---|---|
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery rating | 12 V / 7 Ah |
| Battery type | Sealed, lead-acid |
| Extended battery capability | Yes |
Electrical Output

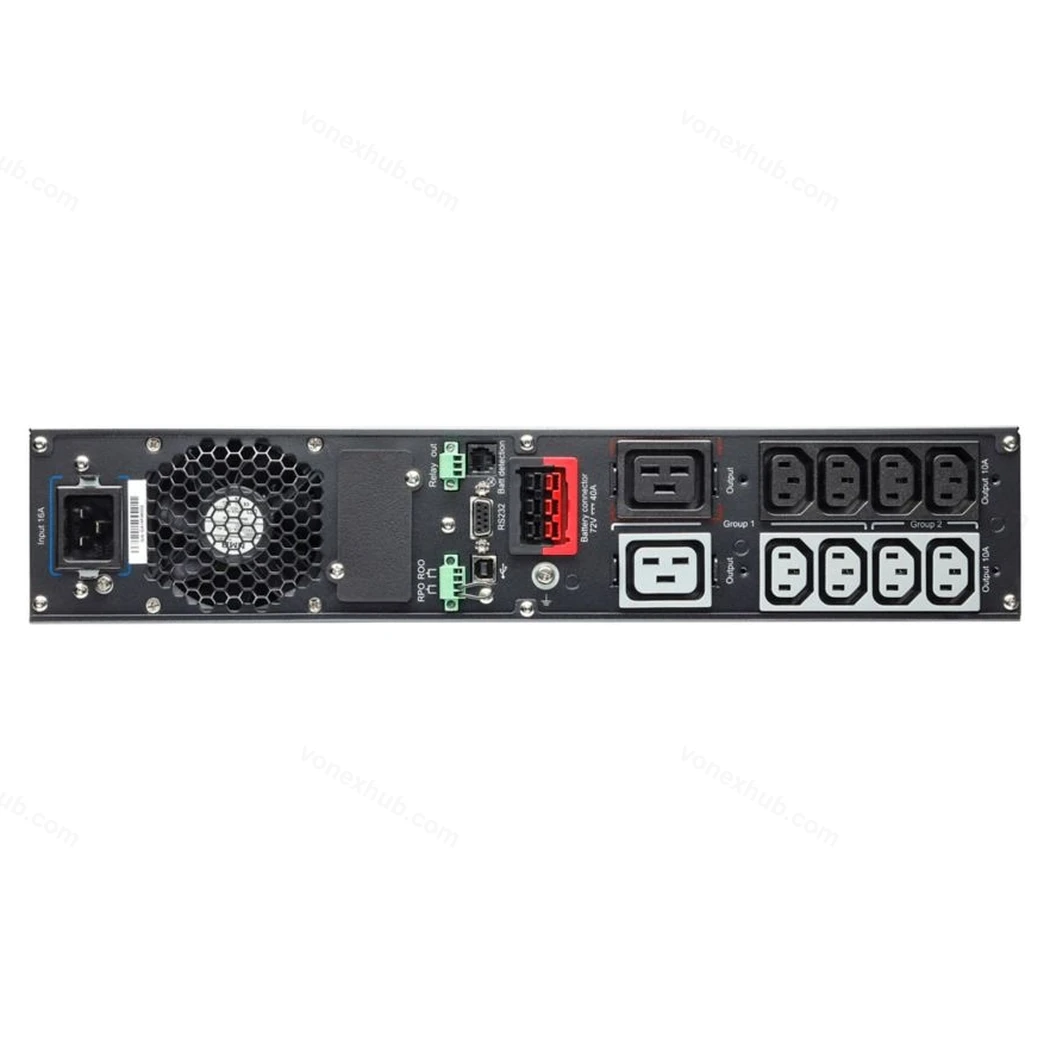

| Receptacle | (8) C13, (2) C19 |
|---|---|
| Topology | Online/Double-conversion |
| Wattage | 2200 W |
| VA rating | 2200 VA |
| Output waveform | Sine wave |
| Voltage | 230V |
| Output power factor | 1 |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Output voltage range | 200/208/220/230/240 V +/- 1% |
| Voltage distortion output (linear load) – max | 3 |
| Output frequency | 50/60 Hz |
| Feed type | 1 |
Electrical Input
| Input connection | C20 |
|---|---|
| Input cord length | 1.8m |
| Input nominal voltage | 230V default (200/208/220/230/240V) |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Nominal frequency | 50/60 Hz |
| Input frequency range | 40-70 Hz |
| Input power factor | >.99 |
Communications
| Communication | USB port (HID compliant) Serial port (RS232) Mini terminal block for remote On/Off Mini-terminal block for remote power off Mini-terminal block for output relay Dry contacts (3 outputs, 1 input, optocoupler, DB9) |
|---|---|
| Expansion slots | One slot for optional communication card |
| Ethernet interface | No |
| Includes network card | No |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| User interface | Multilingual graphical LCD display |
| Type of interface | Other |
| Potential free switch contact | Yes |
Environmental
| Altitude | 3000 m |
|---|---|
| BTU Rating | Online: 488 |
| Noise level | <40 dB at 1 meter |
| Relative humidity | 0-96% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
Additional Specifications
| Special features | Double conversion topology Constantly monitors power conditions and regulates voltage and frequency First UPS in its class to provide Unity power factor (VA=W) Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs Internal bypass allows service continuity in case of UPS fault Next-generation graphical LCD display Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat) Meter energy consumption (down to the managed outlet groups) Hot swappable batteries Advanced Battery Management (ABM) technology to increase battery lifetime Long backup time with up to 4 optional EBM |
|---|---|
| Rack size | 2U |
| Construction type | 482.6 mm (19 inch) device |
| Rack mounting kit | Yes |
| Efficiency at max. load | 93 |
| Phase (input) | 1 |
| Phase (output) | 1 |
| Internal bypass | Yes |
| Hot swap power | No |
| Auto shutdown function | Yes |
