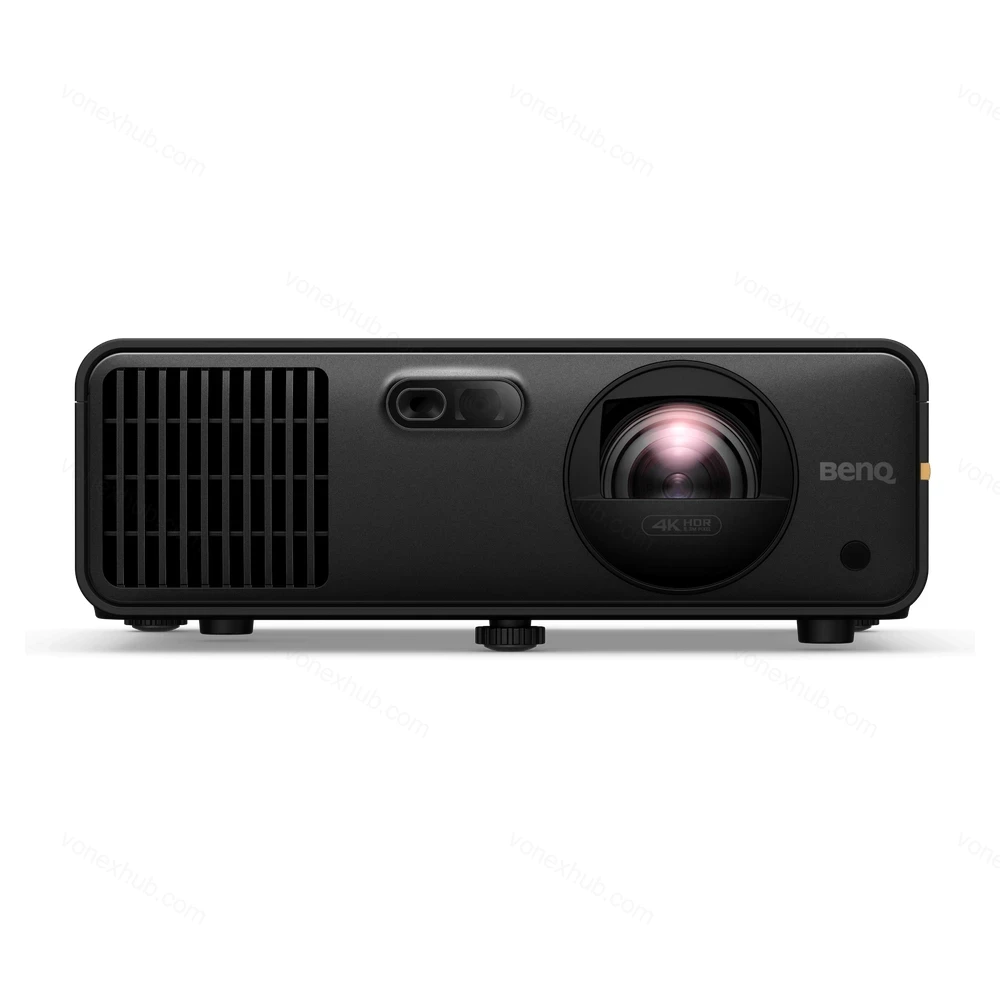

BenQ AK700ST Laser Golf Simulator Projector 4000 Lumens 4K UHD
Model: AK700ST
Warranty: 3 years
Quick Specs:
- Brightness: 4000 ANSI Lumens
- Resolution: 4K UHD (3840 x 2160)
- Contrast Ratio: 3,000,000:1 (FOFO)
- Light Source: Laser, 20,000 hrs life
- Throw Ratio: 0.69-0.83:1 (Short Throw)
- Weight: 3.4 kg +/- 100g
The BenQ AK700ST is BenQ’s dedicated golf simulation projector, offering cinematic-grade 4K resolution and a unique remote control for easy setup. Eliminate the hassle of adjusting screen ratios and effortlessly enjoy a complete 4K entertainment experience with family and friends.
Common setup issues in a golf theater include the projector placement challenge (identifying the projector throw ratio, and moving the slider rail for the optimal position takes time), the complex process to fill up the screen (with math calculation, going into graphic card settings, and back and forth to settle down), and difficulty with focus adjustment (most projectors have their focus ring on the projector itself, so climbing up the ladder for manual focus is un-user-friendly). The BenQ AK700ST is built to solve all three.
One Projector, Two Experiences
With the BenQ AK700ST, your all-in-one projection solution, effortlessly switch aspect ratios with just one button, ensuring full-screen enjoyment without wasting time on settings.
Auto Screen Fit: Automatically detects and adjusts to your impact screen’s aspect ratio, maintaining optimal resolution. Auto Screen Fit supports 16:9, 16:10, 4:3, and 1:1 aspect ratios. For non-standard aspect ratios, adjustment via graphic card settings is required. Enclosure or screen black border requires at least 6 cm of width.
Quick Focus: Press the Quick Focus button on the remote control and make slight manual adjustments to effortlessly deliver clear images.
Short Throw Lens Designed for Golf Sim
Swing safely without fear of damage or shadows.

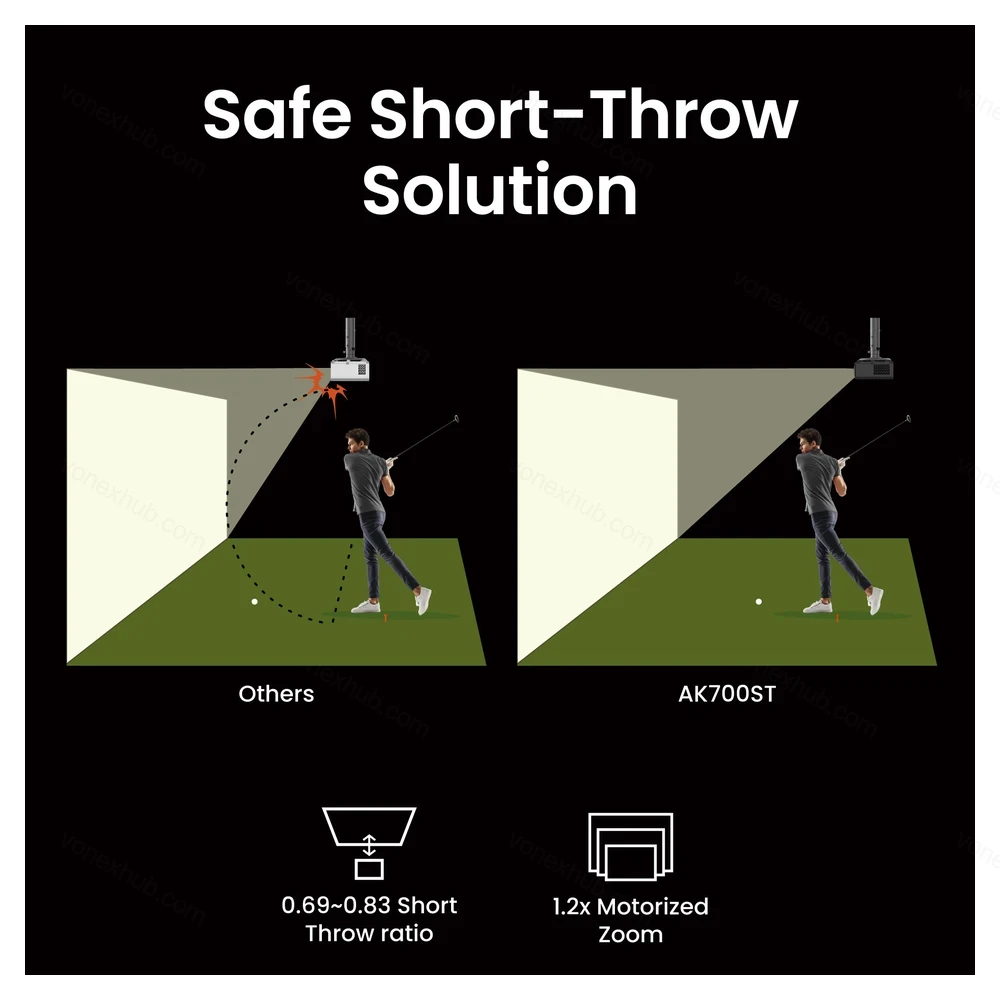

Safe Short-Throw Solution: The BenQ AK700ST enables a safe and shadow-free location for your swing. Traditional short throw projectors are positioned too close to the hitting area, creating potential collision risks. The AK700ST is positioned behind the hitter, lowering collision risks and eliminating shadows. Browse our full Short Throw Projector range for other space-saving installation options.
Up to 200-Inch Display: AK700ST features a professional-grade motorized lens with 1.2x optical zoom flexibility. Easily adjust screen size without reinstalling, ensuring no loss in picture quality.

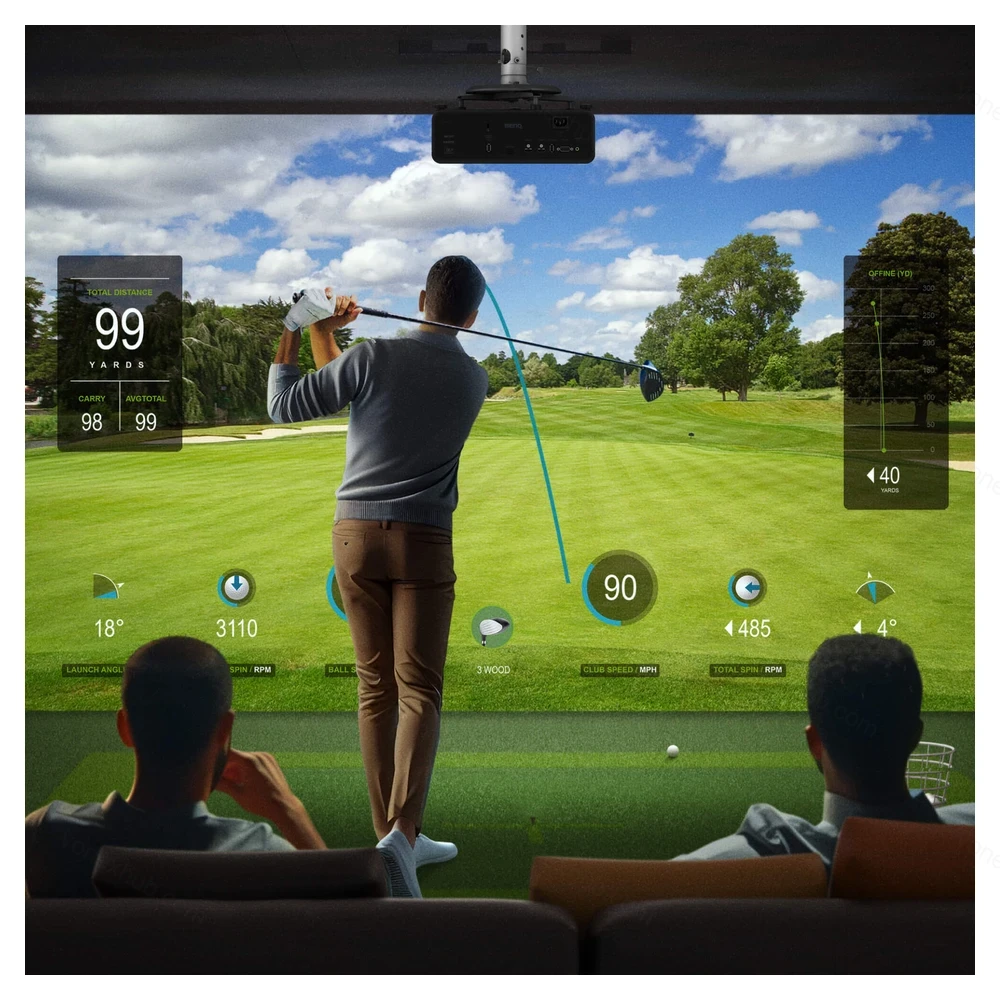

Bring the Course Home
BenQ AK700ST’s laser technology, paired with BenQ’s expert color calibration, delivers top-quality visuals, faithfully reproducing golf course colors.
4K Detail Visibility: With true 4K resolution and 830 million pixels, AK700ST reveals every detail of the golf course terrain and grass, enhancing texture richness.
Perfect for Any Lighting: The AK700ST’s laser light source delivers 4000 lumens of brightness and high contrast, ensuring stunning visuals in any lighting condition. Lights on: clear contrast and vibrant colors even in a well-lit living room. Lights off: sharp contrast and vivid colors in low-light settings.
True-to-Life Golf Course Colors: Experience authentic colors from the start with BenQ’s exclusive Golf Mode, tailored for different golf course environments that ensure an immersive experience from the most famous courses in the world.
Tough Enough for Any Garage
BenQ AK700ST’s IP5X dustproof sealed engine operates reliably in temperatures from 32-104°F, eliminating the need for regular filter replacements.
Durable Laser Technology: The AK700ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.
Green Technology, Efficient Performance: AK700ST reduces energy consumption by 15% compared to traditional lamp projectors and features a chassis made from post-consumer recycled materials. It’s also TUV and UL-certified.
BenQ AK700ST Specifications
Display
Brightness (ANSI lumens): 4000
Resolution: 4K UHD (3840×2160)
Native Aspect Ratio: 16:9
Contrast Ratio (FOFO): 3,000,000:1
Display Color: 30-bit (1.07 billion colors)
Light Source: Laser
Light Source Life: 20000 hrs
Screen Fill: 16:9, 16:10, 4:3, 1:1
Quick Focus: Yes
Optical
Throw Ratio: 0.69-0.83
Zoom Ratio: 1.2x
Lens: F/2.53(Wide), f = 10.2mm(Wide)
Projection Offset (Full-Height): 102.5%
Keystone Adjustment: 3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees
Rec. 709 Coverage: 95%
Picture Modes: 3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2
Compatibility
Input Lag: 16.7 ms (1080P 120Hz), 8.4 ms (1080P 240Hz), 33.4 ms (1080P 60Hz), 33.4 ms (4K 60Hz)
Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency: 15K~135KHz

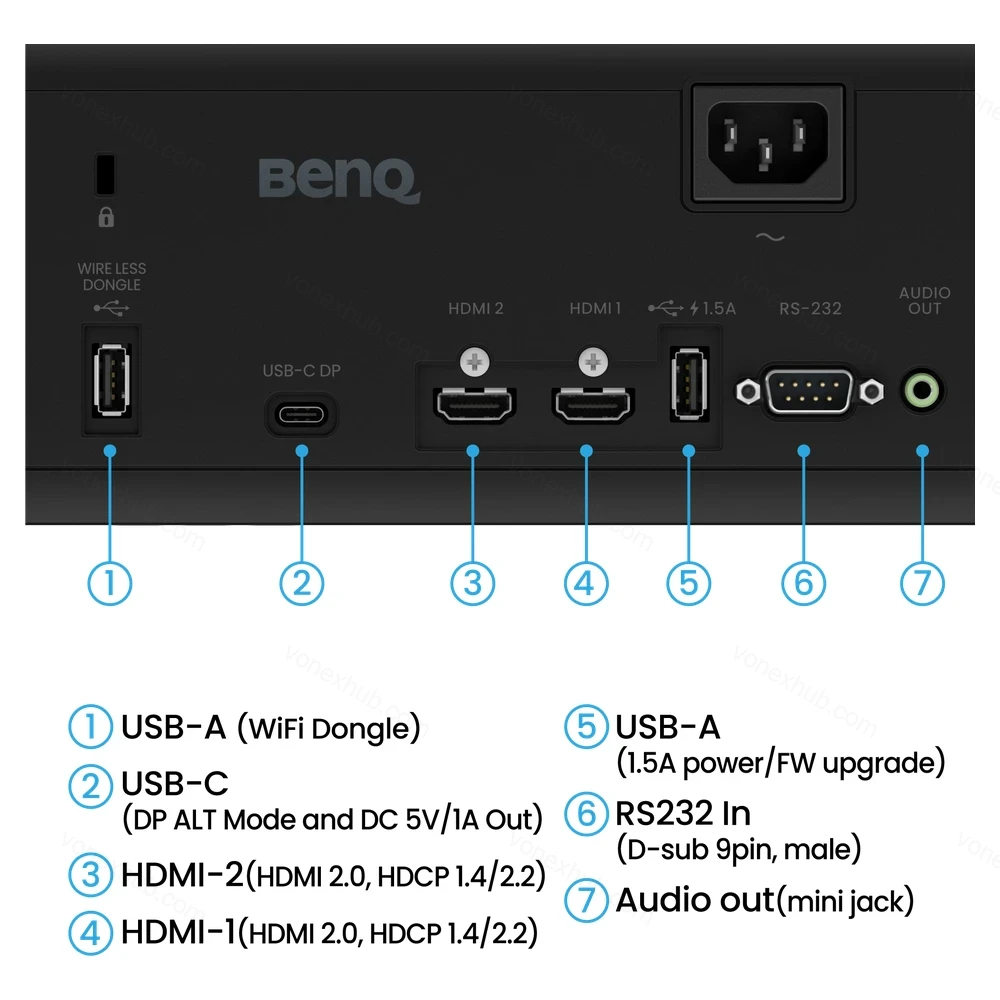

I/O Interface:
HDMI in (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
USB Type A (x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-3 (2.0/Wireless Dongle)
USB Type C (x1), Display Port with PD out 5V/1A
RS232 in (DB-9pin) (x1)
Audio
Speaker: (x1), 10W
HDMI Audio Return: eARC, 7.1 channel
Environment
Operating Temperature: 0~40℃
Power Supply: AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V): 212W
Stand-by Power Consumption: <0.5W
Acoustic Noise (Typ./Eco.): 32dB/29dB
Accessories
Wireless USB Dongle: EZC-5201BS 1080p (Optional)
Remote Control w/ Battery: RCA012
Power Cord (by region): x1 (1.8M)
Quick Start Guide: (x1) 21L
Warranty Card (by region): Yes
Universal Ceiling Mount: (Optional)
Dimension & Weight
Dimensions (WxHxD): 303.5 x 112.4 x 234.5 mm (11.94 x 4.43 x 9.23 inch)
Net Weight: 3.4 Kg +/- 100g (7.48 lb)
Projection System
Projection System: DLP
