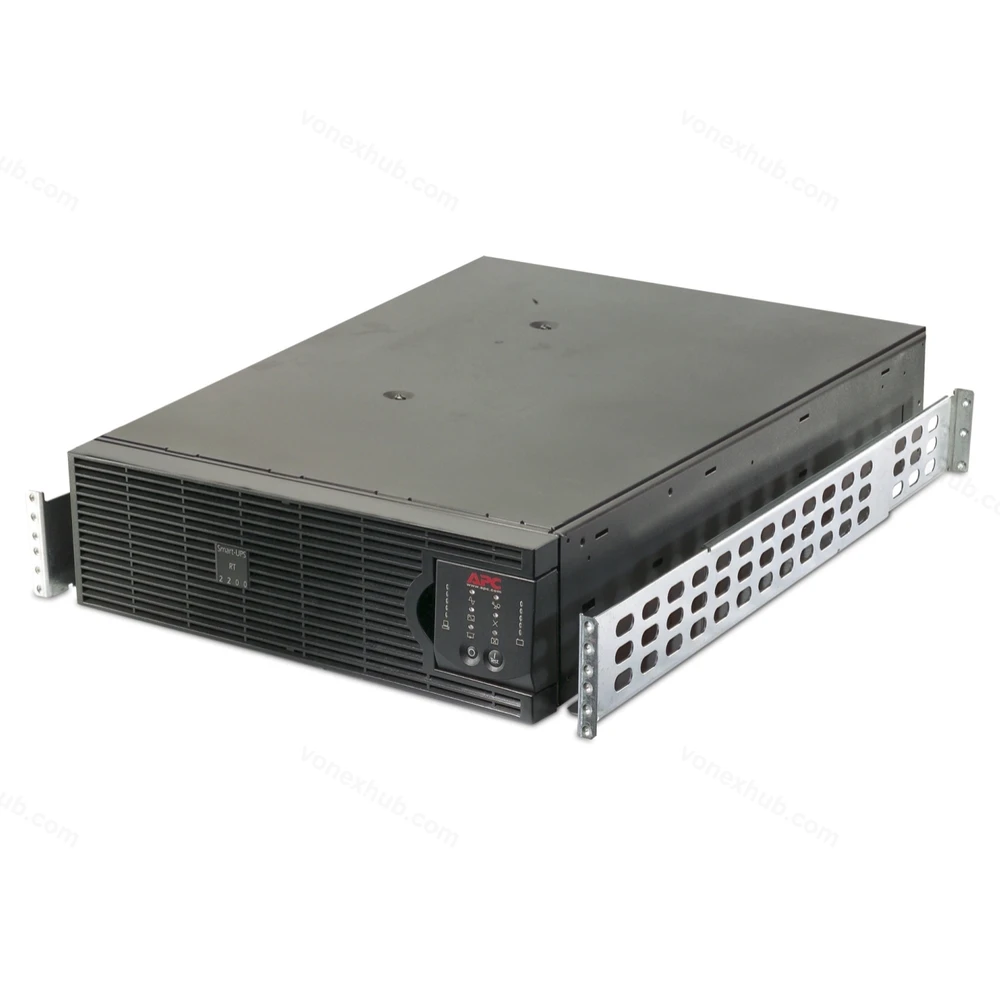

APC SURTD2200XLIM Smart-UPS RT 2200VA 230V – Marine
Model: SURTD2200XLIM
Warranty: 24 months
⚠ Indent Basis Item
Do note that this product may require indent basis, do WhatsApp us or email us to better understand the updated leadtime.
Do note that this product may require indent basis, do WhatsApp us or email us to better understand the updated leadtime.
High availability, ruggedized power protection for shipboard and other transportation applications.
Ideal for providing uninterrupted power in critical marine applications. DNV type approved.
Hot-swappable, front-accessible, user replaceable batteries. Manual bypass switch. Operating temperature up to 55°C.
APC SURTD2200XLIM Specifications
Main
| Main input voltage | 230 V |
|---|---|
| Other input voltage | 220 V 240 V |
| Input connection | BS1363A British IEC 60320 C20 Schuko CEE 7 / EU1-16P |
| Efficiency at full load | 180…280 V |
| Input frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Output voltage | 230 V |
| Other output voltage | 220 V 240 V |
| Rated power in W | 1540 W |
| Rated power in VA | 2200 VA |

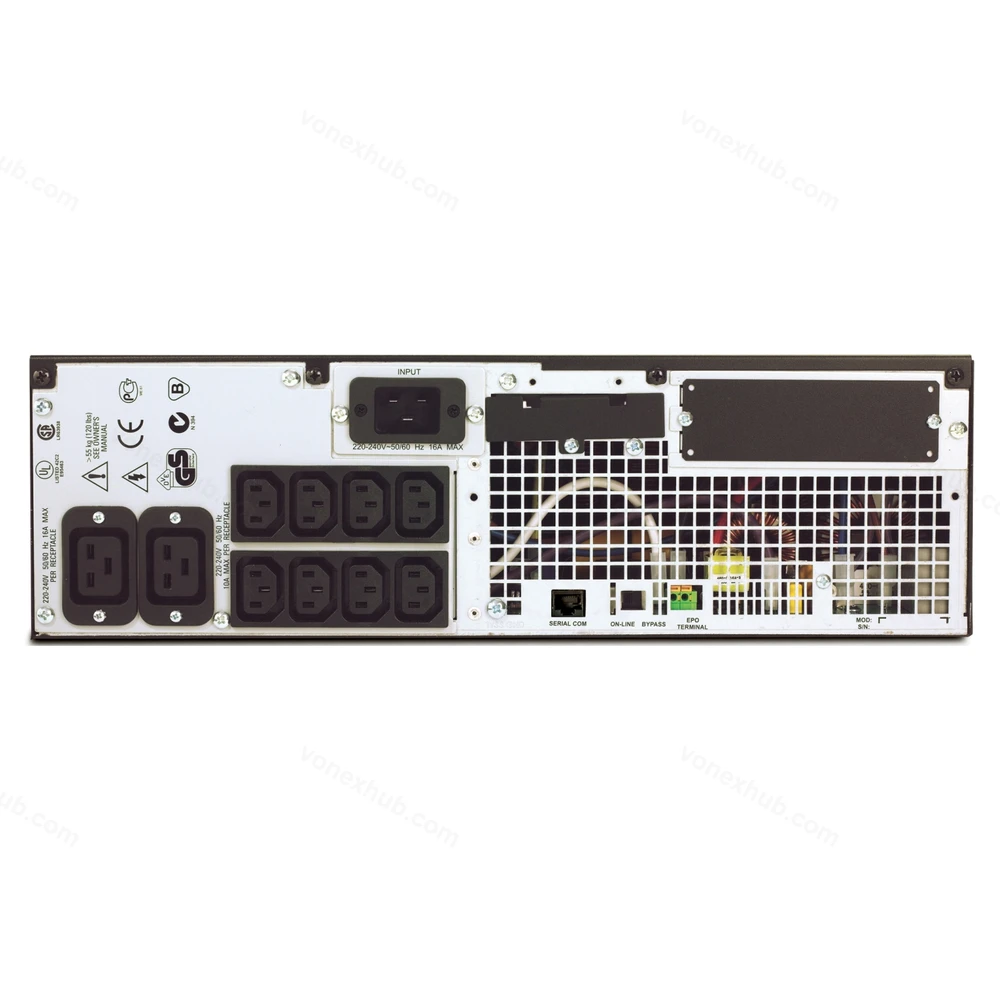

| Output connection | 8 IEC 60320 C13 2 IEC Jumpers 2 IEC 60320 C19 |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1540 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
| Replacement battery | APCRBC140 |
Graphs
| Run Time | View Runtime Graph |
|---|
Complementary
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Emergency power off | Yes |
| Free slot | 0 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rating | 555 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 3U |
| Cable length | 2.5 m |
| Number of cables | 1 |
| Color | Black |
| Height | 432 mm |
| Width | 130 mm |
| Depth | 660 mm |
| Product weight | 54.55 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Provided equipment | CD with software Documentation CD Installation guide Rack mounting hardware Smart UPS signalling RS-232 cable User manual |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Product or component type | Uninterruptible power supply (UPS) |
Environment
| Product certification | CE DNV KCC |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 55 dBA |
| Heat dissipation | 609 Btu/h |
| Operating altitude | 0…10000 ft |
Batteries & Runtime
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 1 |
| Included battery module | 2 |
| Typical recharge time | 2.5 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 382 W rated |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 34.7 cm |
| Package 1 Width | 60.3 cm |
| Package 1 Length | 98 cm |
| Package 1 Weight | 63.64 kg |
