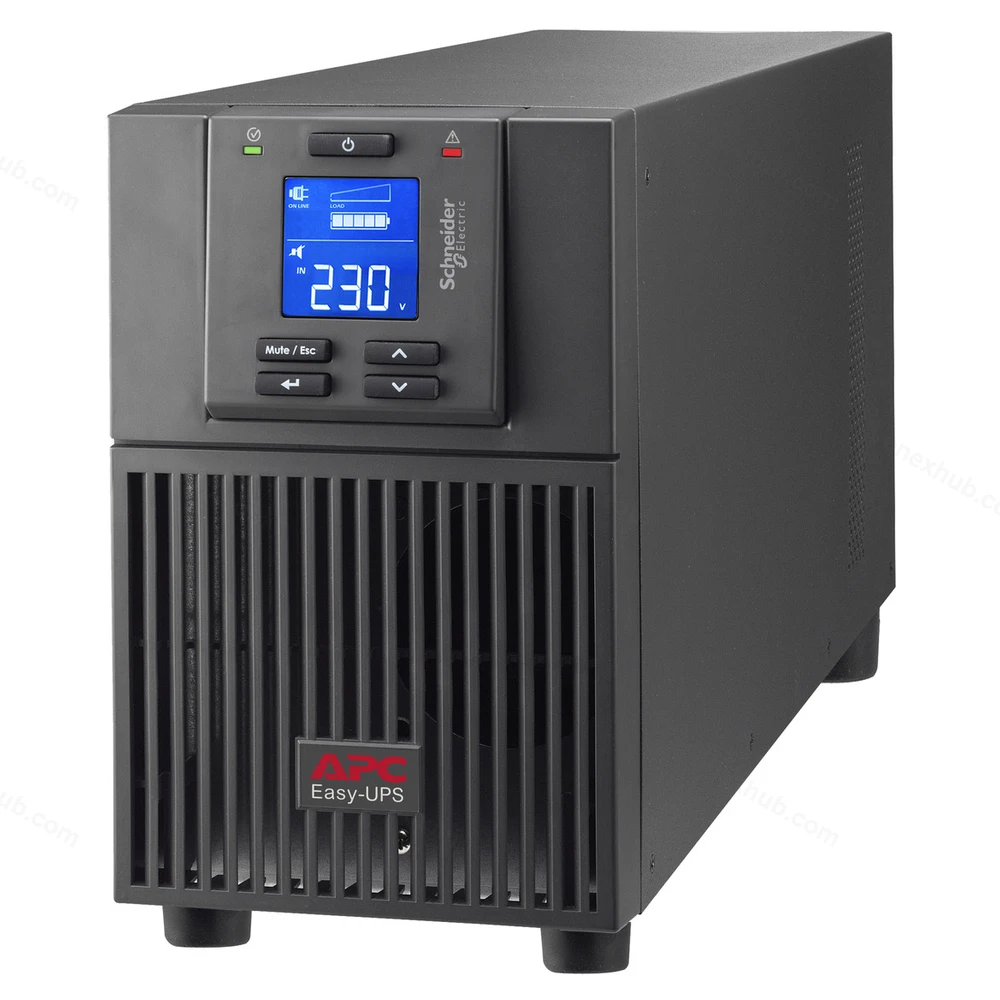

APC SRV2KI-E Easy UPS On-Line, 2000VA/1800W, Tower, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD
Model: SRV2KI-E
Warranty: 24 Months
APC SRV2KI-E Specifications
| Overview | |
| Presentation | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
| Main | |
| Main input voltage | 230 V AC 1 phase |
| Other input voltage | 220 V / 240 V |
| Input connection | IEC 60320 C14 |
| Efficiency at full load | 110…285 V 40% load / 180…285 V full load |
| Input frequency | 40…70 Hz auto sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V / 240 V |
| Rated power in W | 1800 W |
| Rated power in VA | 2000 VA |
| Output connection | 4 IEC 60320 C13 |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | 3 % |
| Maximum configurable power in VA | 2000 VA |
| Maximum configurable power in W | 1800 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Efficiency | 88 % (full load) |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery | APCRBCV204 |
| Complementary | |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery type | Lead-acid internal included |
| Control panel | Multifunction LCD status and control console |
| Free slot | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port / USB port / Available expansion slot |
| Surge energy rating | 945 J |
| Cable length | 1.5 m |
| Number of cables | 1 |
| Color | Black (RAL 7010) |
| Height | 238 mm |
| Width | 145 mm |
| Depth | 400 mm |
| Product weight | 17.0 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Mounting mode | Tower |
| Max runtime | 3 min |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Easy UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
| Environment | |
| Product certification | CE / UKCA / TISI |
| Standard | EN/IEC 62040-1:2019/A11:2021 / EN/IEC 62040-2:2006/AC:2006 / EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15000 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 759 Btu/h |
| Operating altitude | 0…3000 m |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Battery voltage | 48 V |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 4 h |
| Battery life | 3…5 year(s) |
| Battery charging power | 70 W rated |
| Battery power in VAh | 367 VAh runtime |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 35.500 cm |
| Package 1 Width | 24.000 cm |
| Package 1 Length | 52.000 cm |
| Package 1 Weight | 20.378 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 122.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 350.000 kg |
