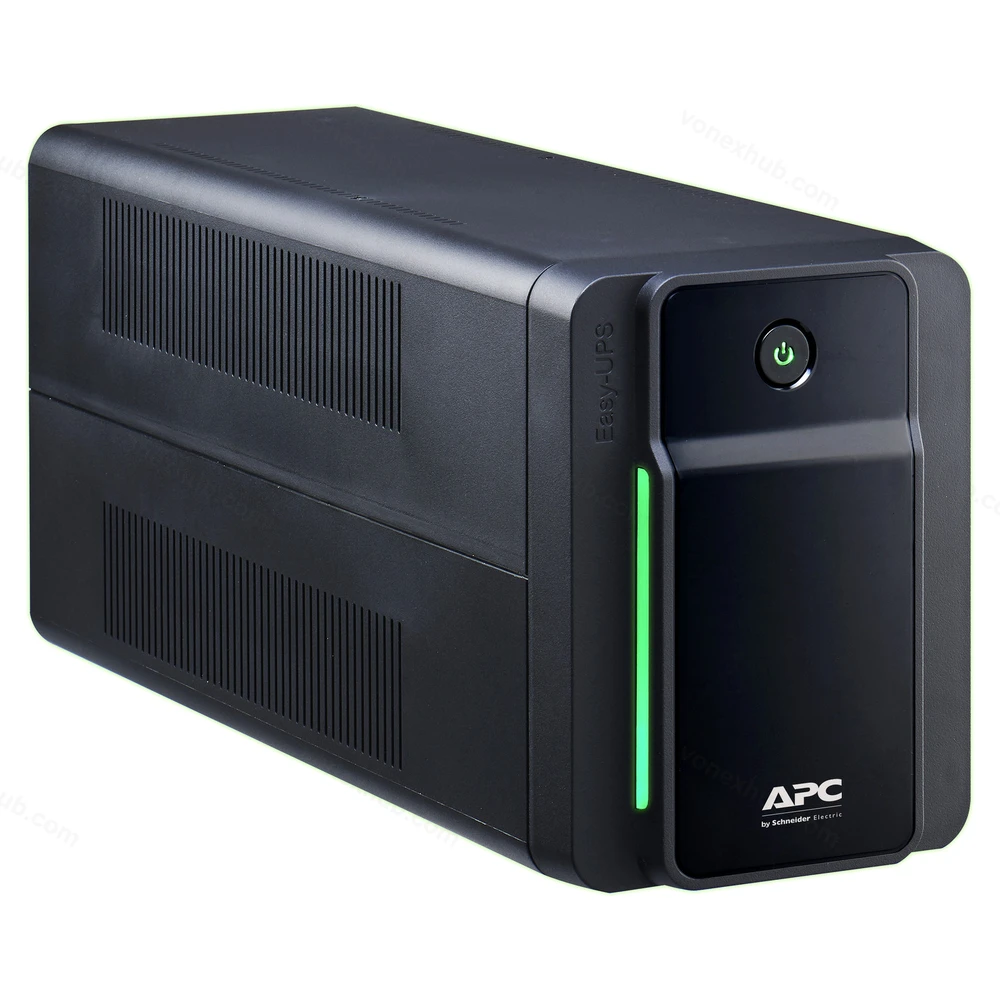

APC BVX900LI-MS Easy UPS, 900VA, Tower, 230V, 2 Universal + 1 IEC C13 outlets, AVR
Model: BVX900LI-MS
Warranty: 24 months
Download Datasheet
This APC Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 900VA tower UPS has 3 total outlets, all of which provide battery back up and surge protection. The UPS has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated APC replacement battery cartridge that helps restore UPS performance to the original specifications.
Main
| Main input voltage |
230 V AC 1 phase |
| Input connection |
IEC 60320 C14 |
| Cos phi |
0.53 |
| Efficiency at full load |
140…300 V 230 V AC |
| Input frequency |
50/60 Hz +/- 5 Hz auto-sensing |
| Output voltage |
230 V AC 1 phase |
| Rated power in W |
480 W |
| Rated power in VA |
900 VA |

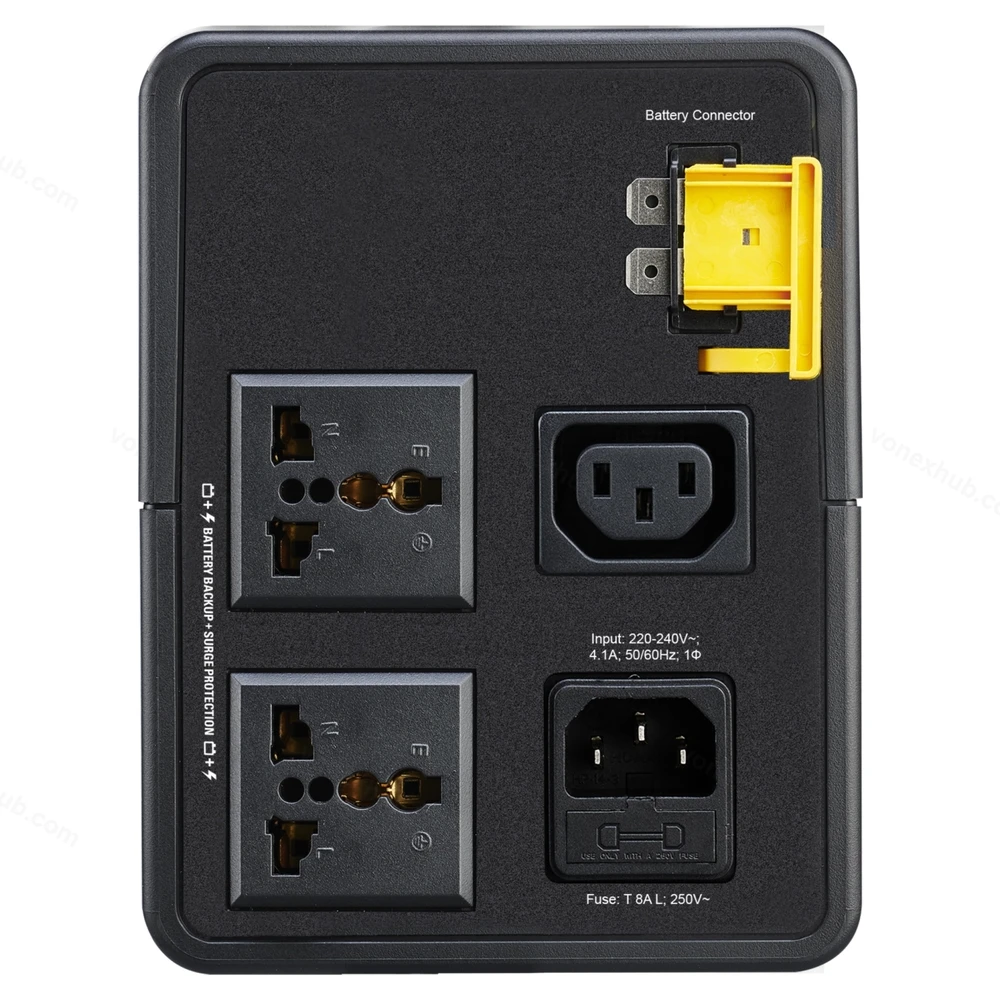

| Output connection |
2 universal
1 IEC 60320 C13 |
| Type of USB power supply |
None |
| Maximum configurable power in VA |
900 VA |
| Maximum configurable power in W |
480 W |
| Transfer time |
6 ms typical : 10 ms maximum |
| UPS topology |
Line interactive |
| Waveform type |
Stepped approximation to a sinewave |
| Full load runtime |
00:01:00 480 W |
| Half load runtime |
00:06:30 240 W |
| Output frequency |
50/60 Hz +/- 1 Hz sync to mains |
Graphs
Complementary
| Battery capacity |
9.0 Ah |
| Battery type |
Lead-acid internal included |
| Control panel |
LED Status display with on line : on battery |
| Surge energy rating |
273 J |
| Cable length |
1.2 m |
| Number of cables |
1 |
| Color |
Black |
| Height |
160 mm |
| Width |
120 mm |
| Depth |
355 mm |
| Product weight |
6 kg |
| Mounting support |
Floor |
| Mounting preference |
No preference |
| Mounting mode |
Not rack-mountable |
| Two post mountable |
0 |
| USB compatible |
No |
| Mounting mode |
Desktop installation compact |
| Provided equipment |
User manual |
| Max runtime |
120 min |
| Number of power module filled slots |
0 |
| Number of power module free slots |
0 |
| Redundant |
No |
| Range of product |
Easy UPS |
| Product or component type |
Uninterruptible power supply (UPS) |
Environment
| Product certification |
CE |
| Standard |
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018 |
| Ambient air temperature for operation |
0…40 °C |
| Ambient air temperature for storage |
-15…40 °C |
| Storage altitude |
0…3000 m |
| IP protection |
IP20 |
| Relative humidity |
0…95 % non-condensing |
| Storage relative humidity |
0…95 % non-condensing |
| Acoustic level |
40 dBA |
| Operating altitude |
0…3000 m |
Batteries & Runtime
| Battery type |
Lead-acid battery |
| Battery voltage |
12 V |
| Battery graph comment |
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extendable runtime |
0 |
| Included battery module |
0 |
| Empty battery slot |
0 |
| Typical recharge time |
8 h |
| Battery life |
2…3 year(s) |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
25 cm |
| Package 1 Width |
43 cm |
| Package 1 Length |
19.7 cm |
| Package 1 Weight |
6.5 kg |
| SCC14 |
10731304404368 |
