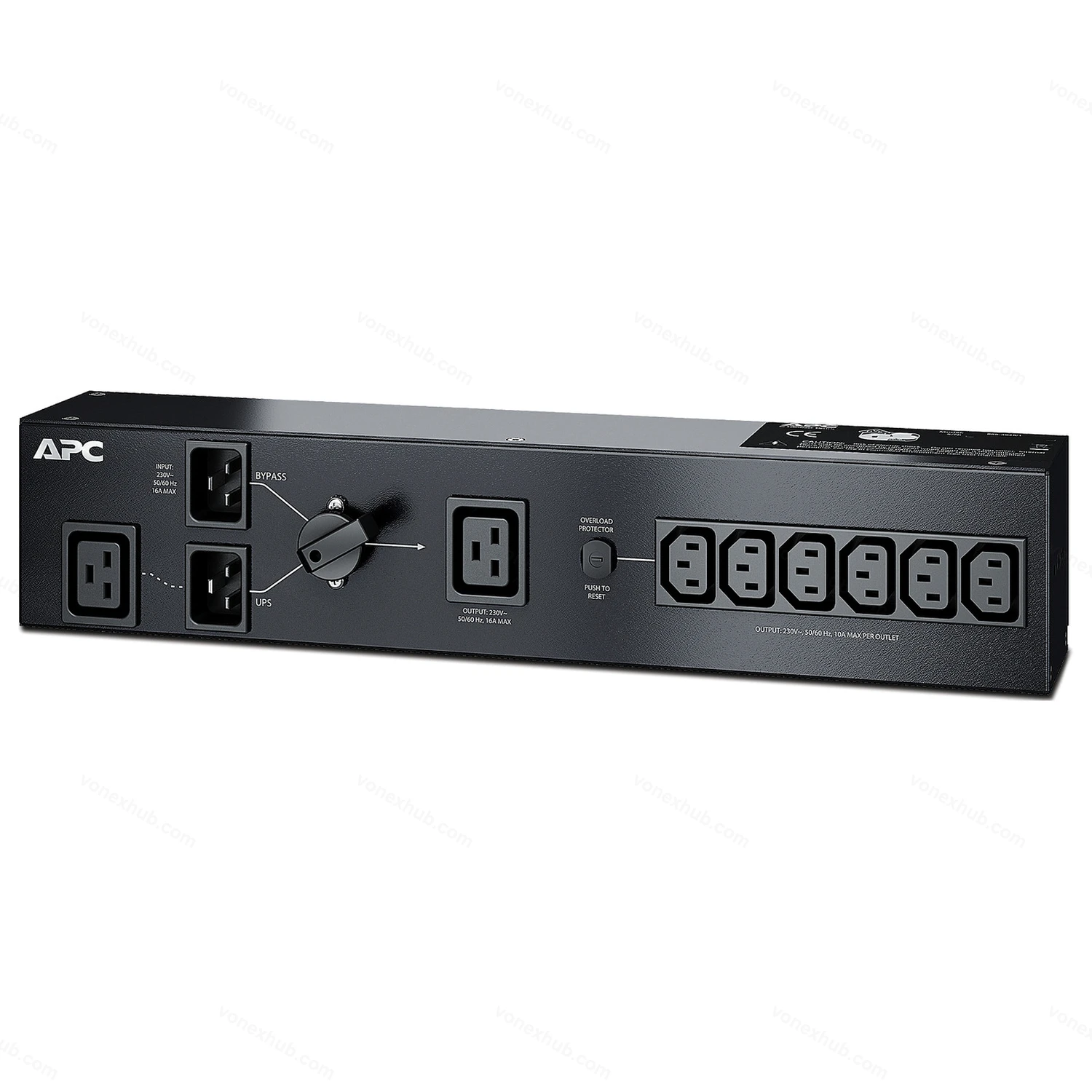

APC SBP3000RMI Service Bypass PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19
Model: SBP3000RMI
Warranty: 24 Months
Main
| Main Input Voltage | 230 V |
|---|---|
| Product or component type | Bypass kit |
| Main Output Voltage | 230 V |
| Input Connection Type | IEC 60320 C20 |
| Number of rack unit | 2U |
| Cable length | 2.5 m |
| Number of cables | 1 |
| Provided equipment | User manual Rack mounting brackets |
| Range of product | Maintenance Bypass Panels |
Physical
| Colour | Black |
|---|---|
| Height | 89 mm |
| Width | 432 mm |
| Depth | 76 mm |
| Product weight | 2.09 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
Input
| Network frequency | 50/60 Hz |
|---|---|
| Permissible voltage | 220…240 V |
| Max line current | 16 A |
| Input current limits | 16 A |
| Load capacity | 3000 VA |
| Power factor | 0…1 |
Output
| Max current draw | 16 A |
|---|---|
| Number of power socket outlets | 6 IEC 60320 C13 1 IEC Jumpers 1 IEC 60320 C19 |
| Number of power socket outlets (total) | 7 |
| Protection type | Circuit breaker |
| Power cable length | 1.00 m |
| Efficiency | 99 % |
Conformance
| Product certifications | VDE |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Environmental
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0…15000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.1 cm |
| Package 1 Width | 29.5 cm |
| Package 1 Length | 46.3 cm |
| Package 1 Weight | 3.91 kg |
