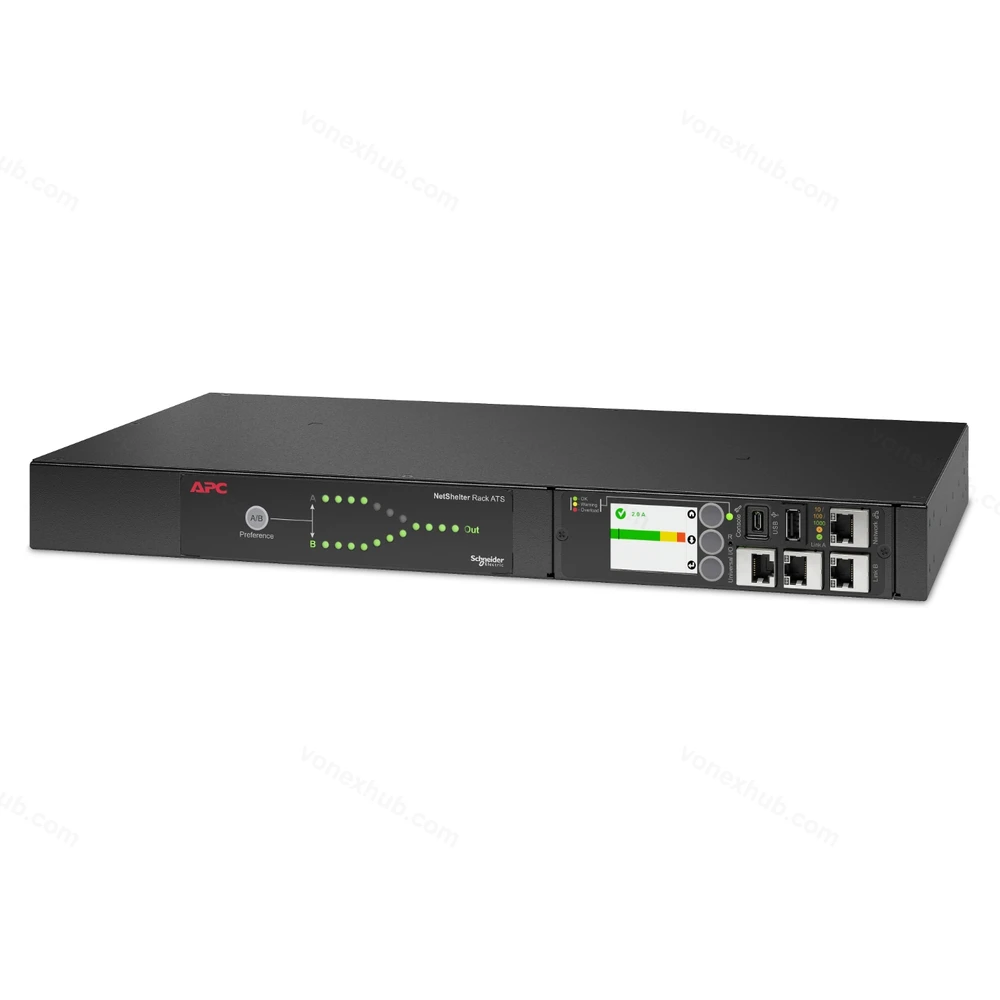

APC AP4421A Netshelter Rack Automatic Transfer Switch Front

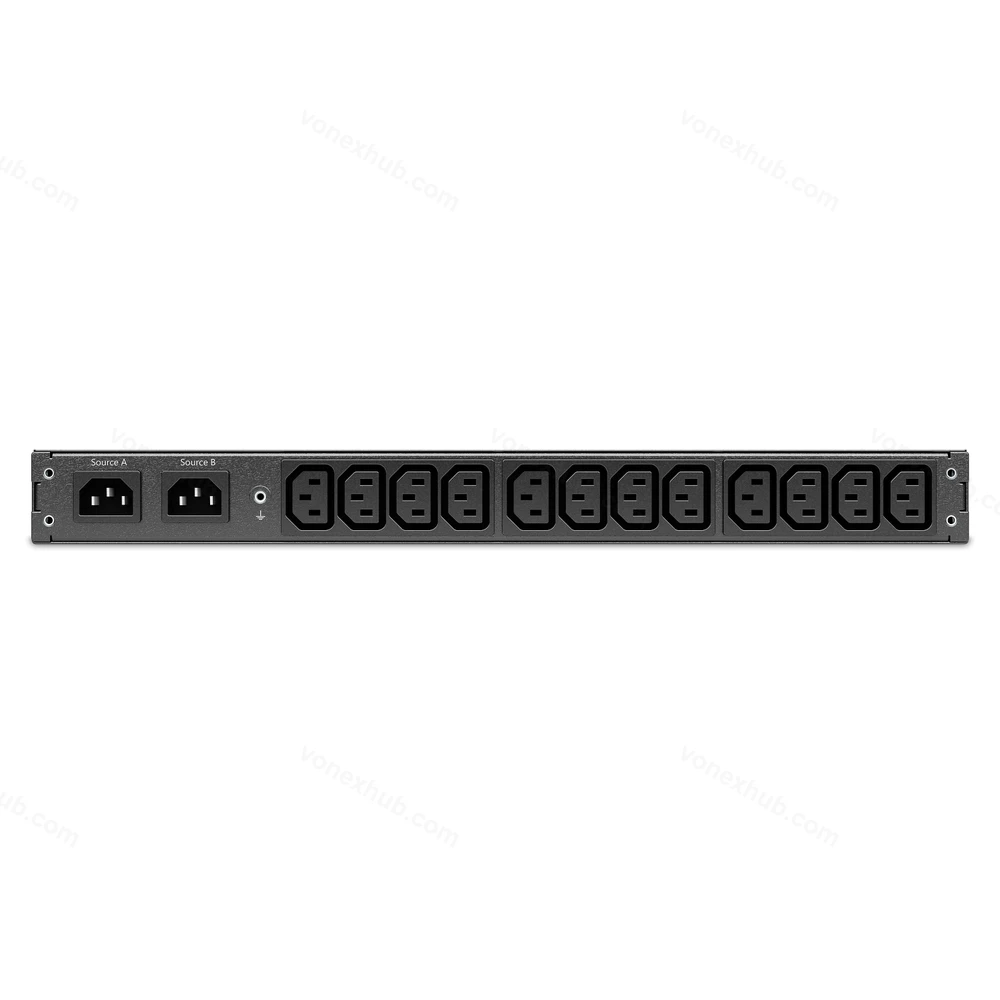

APC AP4421A Rear Connectors Source A Source B 12x C13 Outlets

APC AP4421A Rack Automatic Transfer Switch 1U 10A 230V [INDENT]

$1,899.00

  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critcal loads
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms

Available on backorder

SKU: AP4421A Category: Brand:

APC AP4421A Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz
Model: AP4421A

Warranty: 24 Months

⚠ Indent Basis Item
Do note that this product may require indent basis, do WhatsApp us or email us to better understand the updated leadtime.

Download Datasheet

APC AP4421A Specifications

Main

Main Input Voltage 230 V AC 1 phase
Product or component type Automatic transfer switch
Main Output Voltage 230 V AC 1 phase
Input Connection Type IEC 60320 C14 10 A 2P + E
Number of rack unit 1U
Provided equipment Mounting hardware
Rack mounting brackets

Physical

Colour Black
Height 44 mm
Width 432 mm
Depth 236 mm
Product weight 3.93 kg
Mounting location Front
Mounting preference No preference
Mounting mode Rack-mounted
Mounting position Horizontal

Input

Network frequency 50/60 Hz
[In] rated current 10 A
Permissible voltage 207…253 V
Max line current 10 A
Load capacity 2000 VA

Output

Number of power socket outlets 12 IEC 60320 C13 10 A 2P + E
Number of power socket outlets 12
Protection type Without circuit breaker

Conformance

Product certifications EN 55022 class A
FCC part 15 class A
Standards EN 55022 class A
FCC part 15 class A

Environmental

Ambient air temperature for operation -5…45 °C
Relative humidity 5…95 %
Operating altitude 0…10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0…15240 m

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.00 cm
Package 1 Width 35.00 cm
Package 1 Length 60.00 cm
Package 1 Weight 5.420 kg
Unit Type of Package 2 P12
Number of Units in Package 2 40
Package 2 Height 126.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 230.000 kg
Rack Mountable

Orientation

Power Rated VA

Amperage

Outlet Count

Outlet Type
