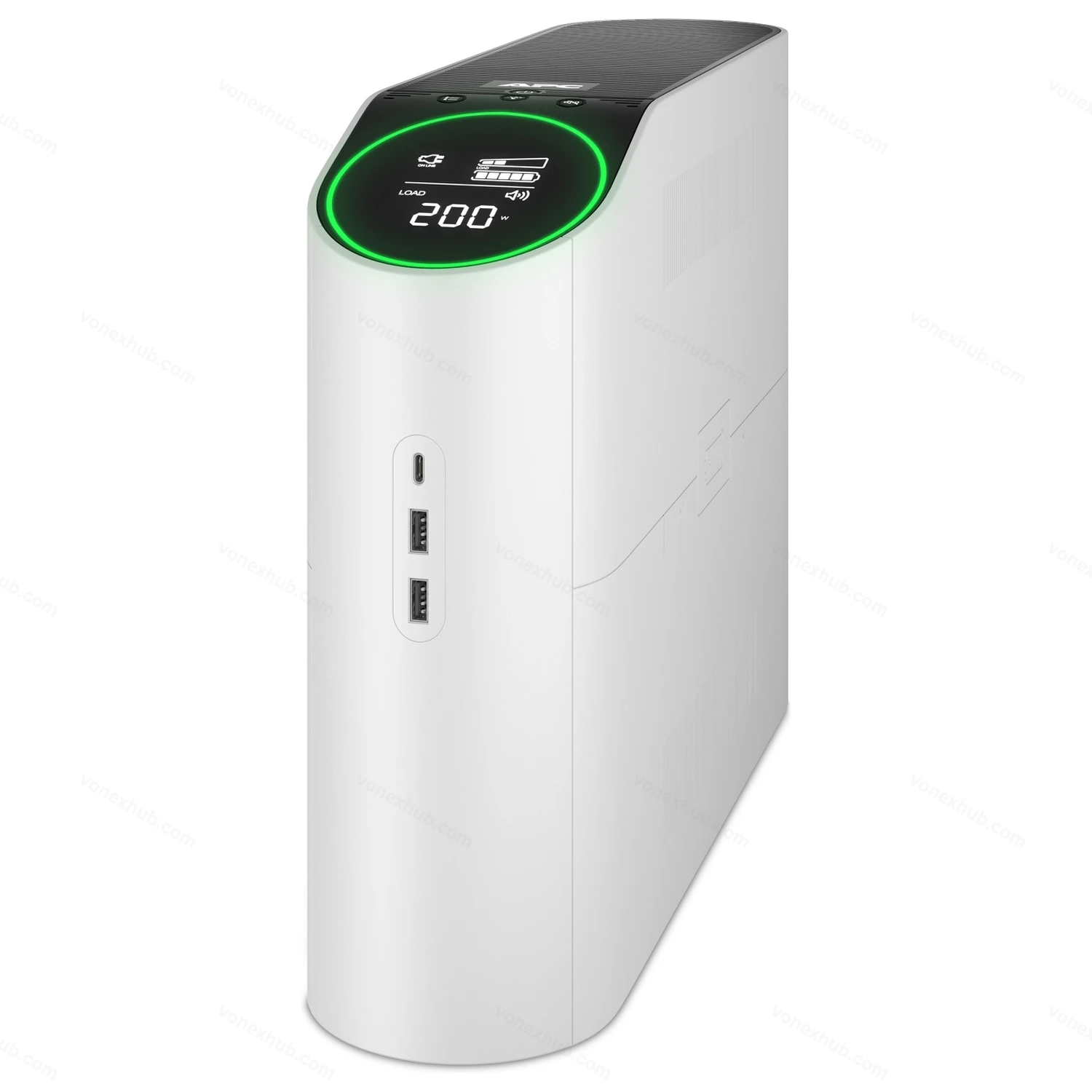

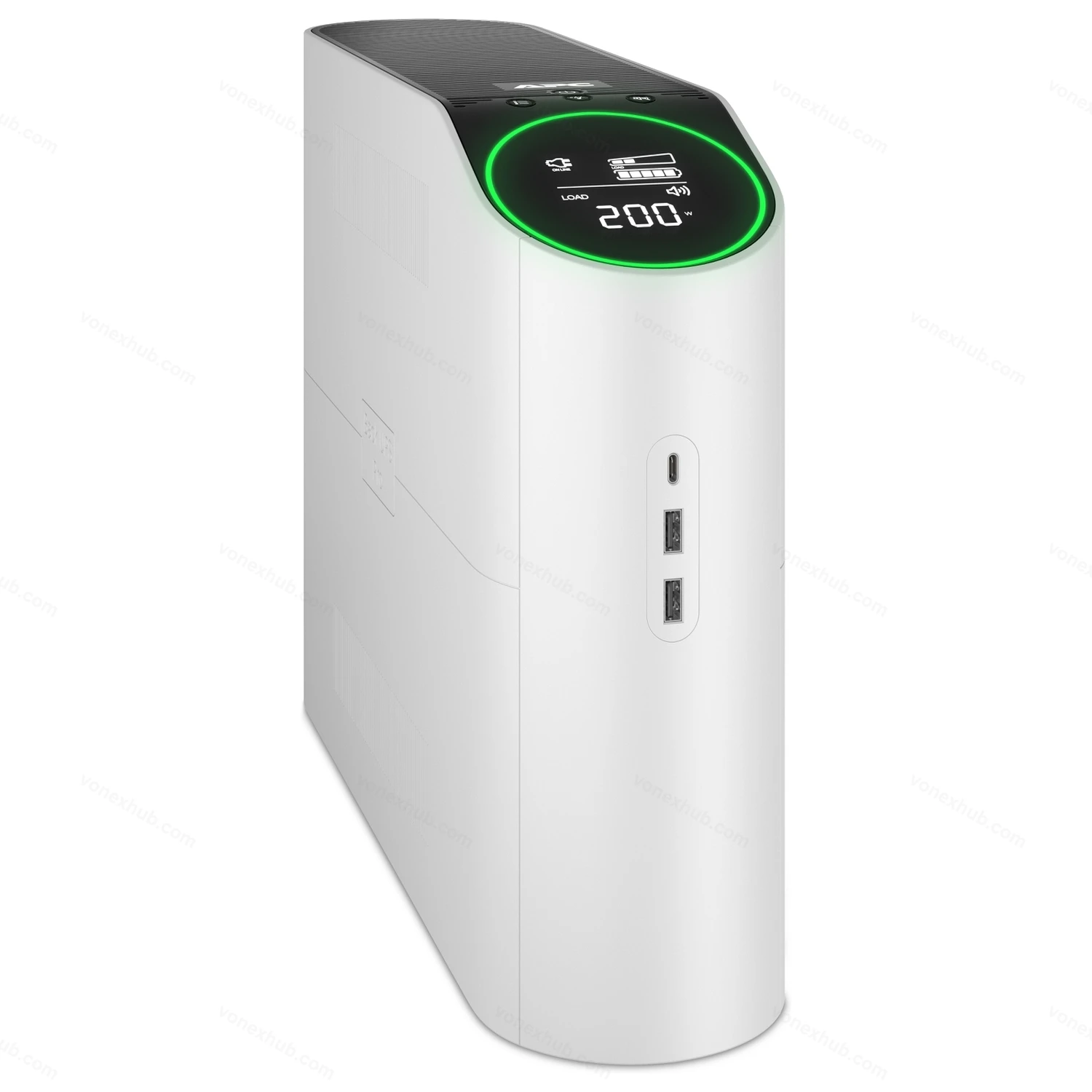

APC BGM2200-MSX Back-UPS Pro for Gaming, 2200VA/1320W, Tower, 230V, 3x Universal and 3x IEC C13 outlets, RGB Lights, Pure Sine Wave, Arctic (White)
Model: BGM2200-MSX
Warranty: 24 months
Download Datasheet
Main
| Main input voltage |
230 V AC 1 phase |
| Other input voltage |
230 V |
| Input connection |
NEMA 5-15P |
| Maximum input current |
12 A |
| Input harmonic distortion |
Less than 3 % for full load |
| Input protection |
Circuit breaker |
| Switching current capacity |
15 A |
| Plug standard |
C19/C21 |
| Efficiency at full load |
168…302 V |
| Input frequency |
50/60 Hz +/- 3 Hz |
| Output voltage |
230 V AC 1 phase |
| Rated power in W |
1320 W |
| Rated power in VA |
2200 VA |

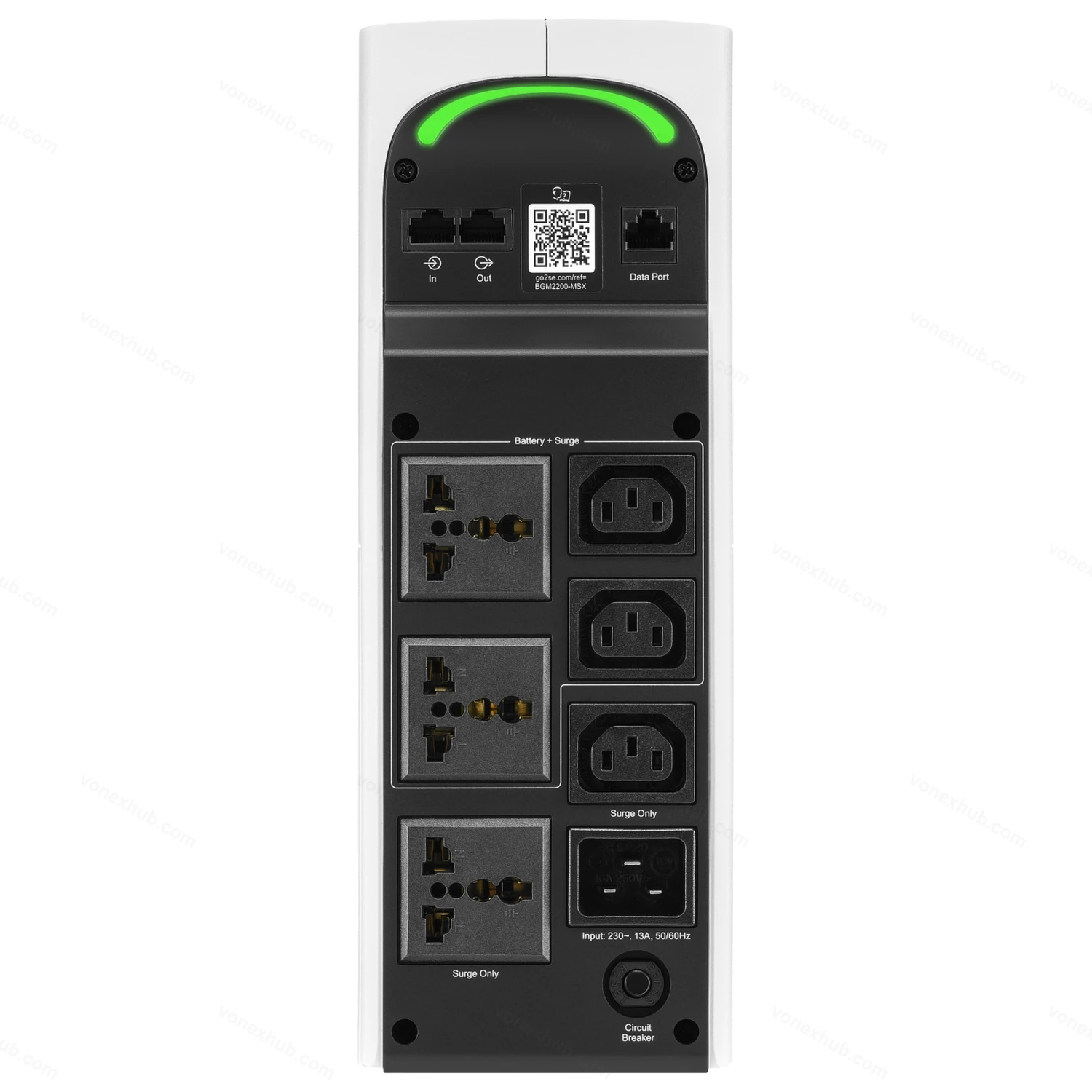

| Output connection |
3 IEC 60320 C13 surge
3 universal surge |
| Type of USB power supply |
USB type A + C |
| Maximum configurable power in VA |
2200 VA |
| Maximum configurable power in W |
1320 W |
| Transfer time |
8 ms typical : 10 ms maximum |
| UPS topology |
Line interactive |
| Waveform type |
Sine wave |
| Full load runtime |
00:30:00 |
| Half load runtime |
00:04:19 |
| Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery |
APCRBC216 |
Graphs
Complementary
| Battery type |
Lead-acid internal included |

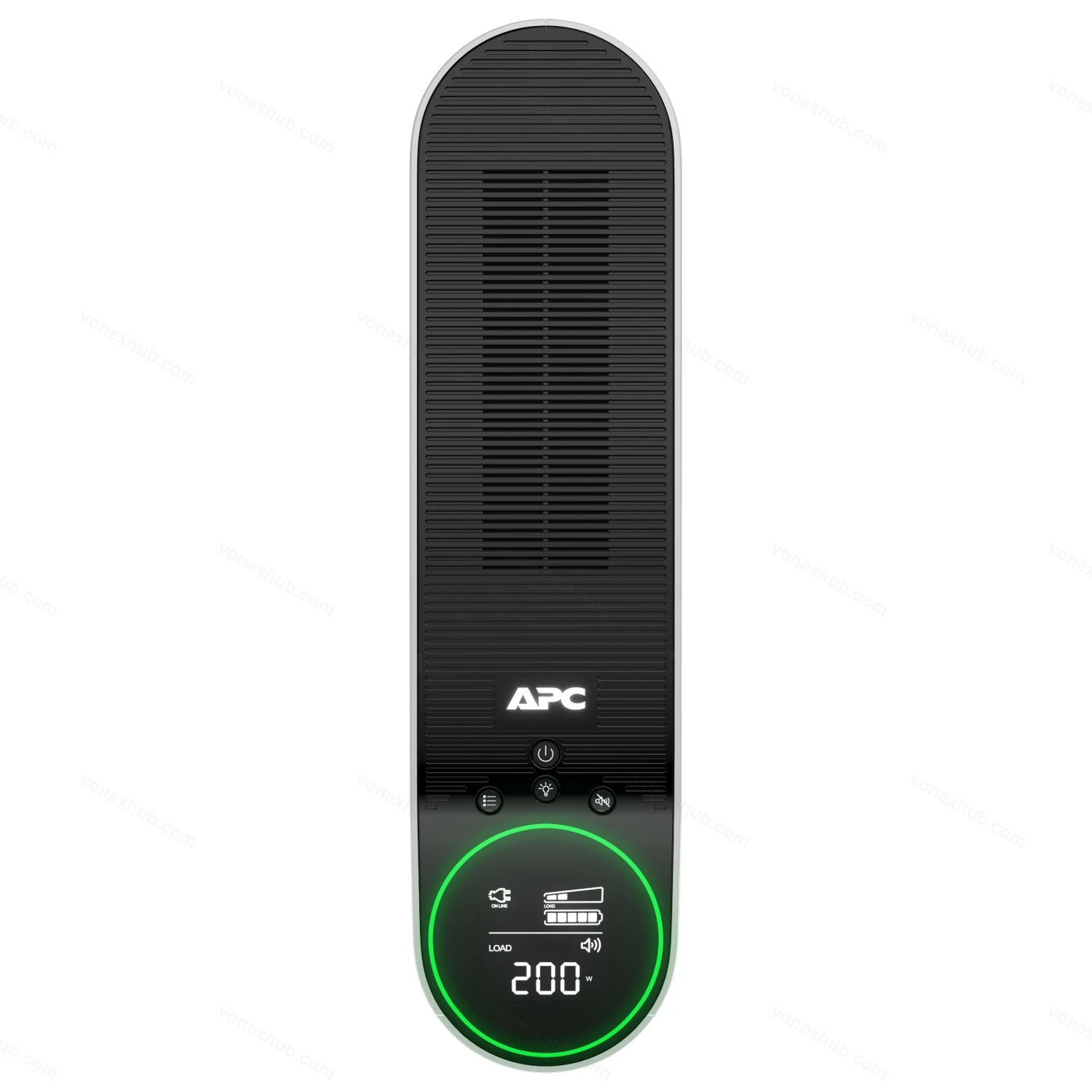

| Control panel |
Multifunction LCD status and control console |
| Free slot |
0 |
| Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity |
USB port |
| Surge energy rating |
1080 J |
| Noise filtering |
Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous |
| Cable length |
1.5 m |
| Number of cables |
1 |
| Color |
White |
| Height |
292.1 mm |
| Width |
104.14 mm |
| Depth |
408.94 mm |
| Product weight |
12.2 kg |
| Mounting support |
Floor |
| Mounting preference |
No preference |
| Mounting mode |
Not rack-mountable |
| Two post mountable |
0 |
| USB compatible |
Yes |
| Mounting position |
Vertical |
| Mounting mode |
Tower |
| Number of power module free slots |
0 |
| Number of preinstalled power modules |
0 |
| Additional specification |
Gaming performance |
| Redundant |
No |
| Range of product |
Back-UPS Pro |
| Product or component type |
Uninterruptible power supply (UPS) |
Environment
| Product certification |
CE
CB |
| Equipment protection policy |
Lifetime : $150000 |
| Ambient air temperature for operation |
0…40 °C |
| Ambient air temperature for storage |
-15…40 °C |
| Storage altitude |
0…3048 m |
| IP protection |
IP20 |
| Relative humidity |
0…95 % |
| Storage relative humidity |
0…95 % |
| Acoustic level |
45 dBA |
| Operating altitude |
0…10000 ft |
Batteries & Runtime
| Battery type |
Lead-acid battery |
| Battery voltage |
24 V |
| Included battery module |
1 |
| Empty battery slot |
0 |
| Typical recharge time |
16 h |
| RBC quantity |
1 |
| Overcurrent protection |
15 A |
| Battery life |
3…5 year(s) |
| Battery charging power |
12 W rated |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
15.5 cm |
| Package 1 Width |
35.5 cm |
| Package 1 Length |
48 cm |
| Package 1 Weight |
14.82 kg |
| SCC14 |
20731304634830 |
