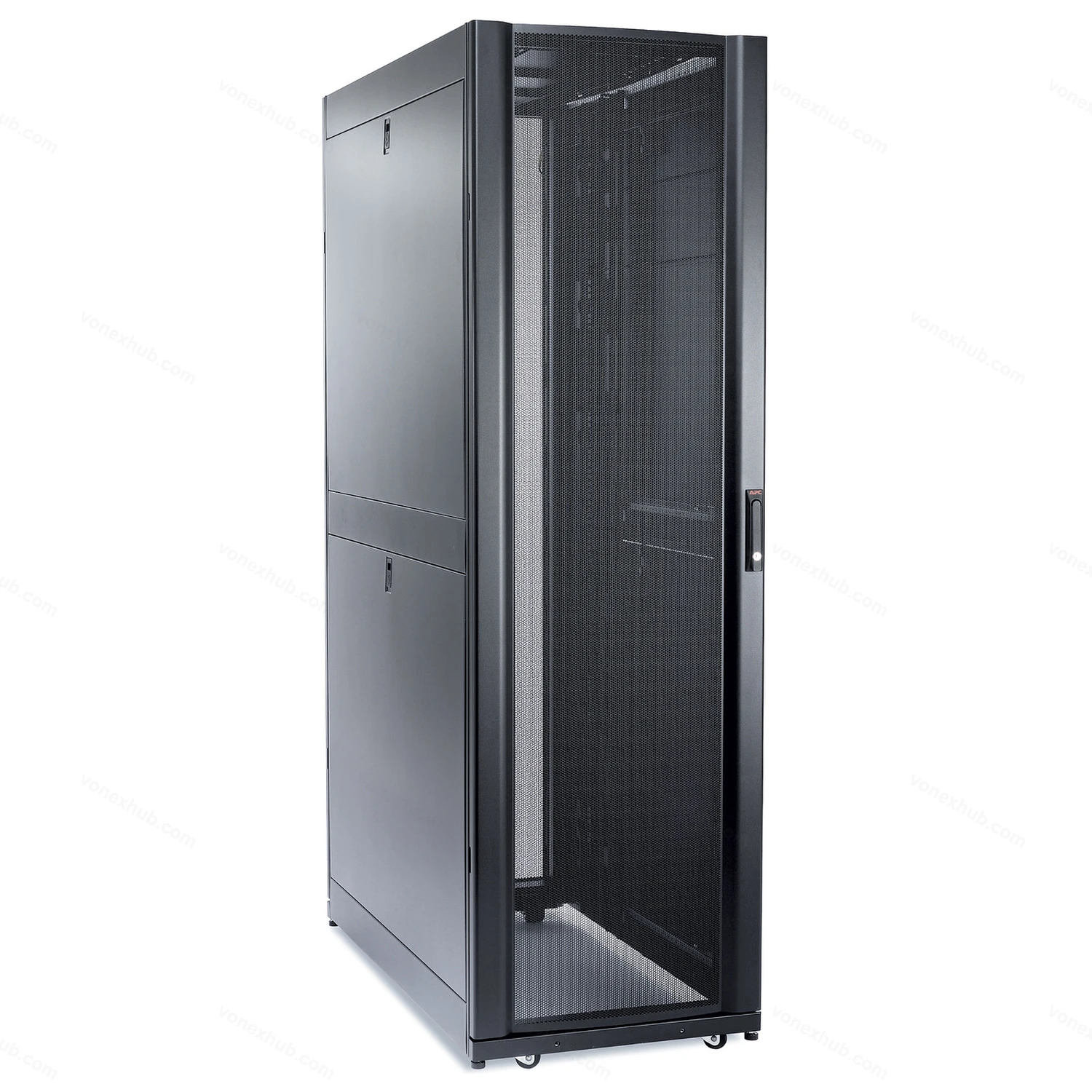

APC AR3305 NetShelter SX 45U Server Rack Enclosure
APC AR3305 Rear View

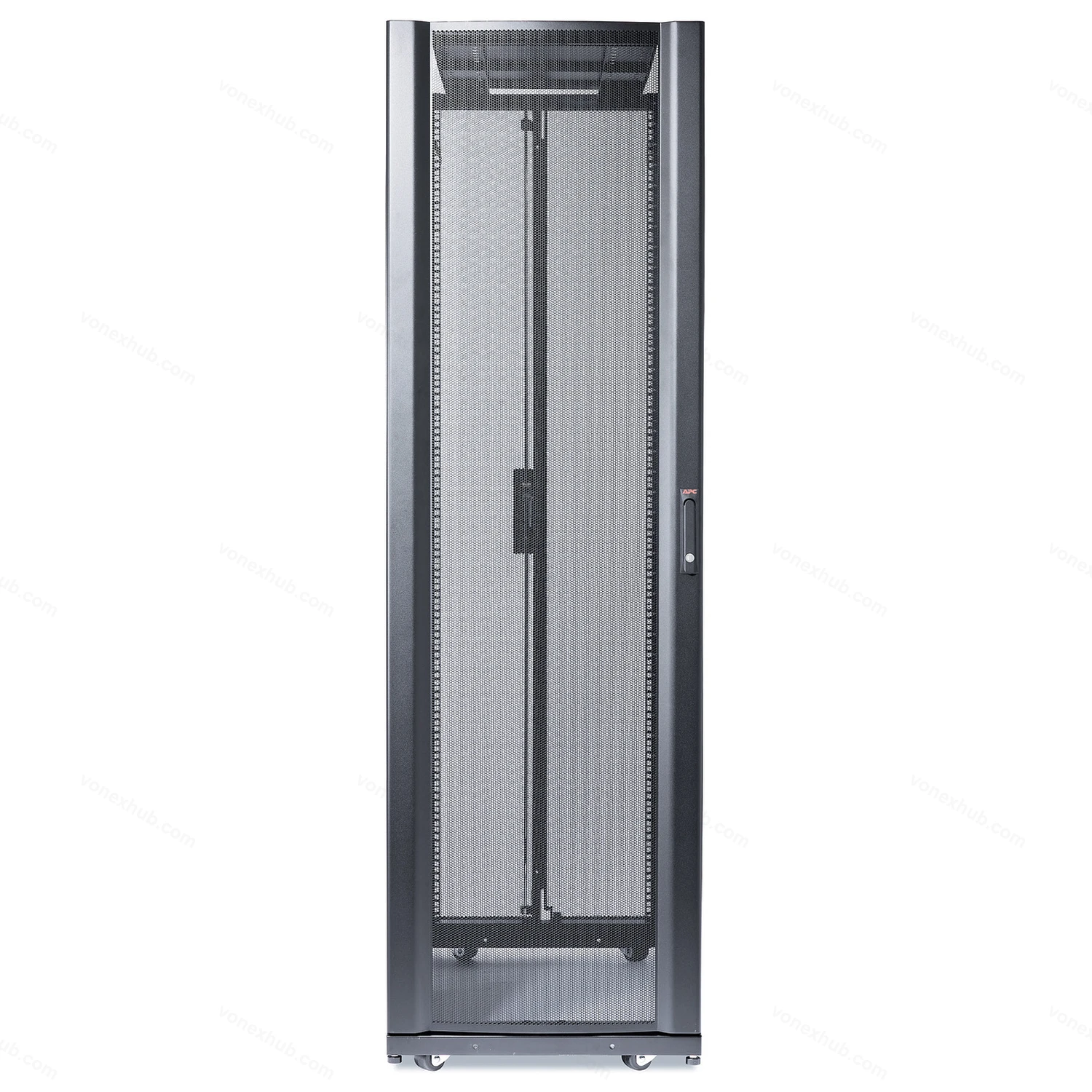

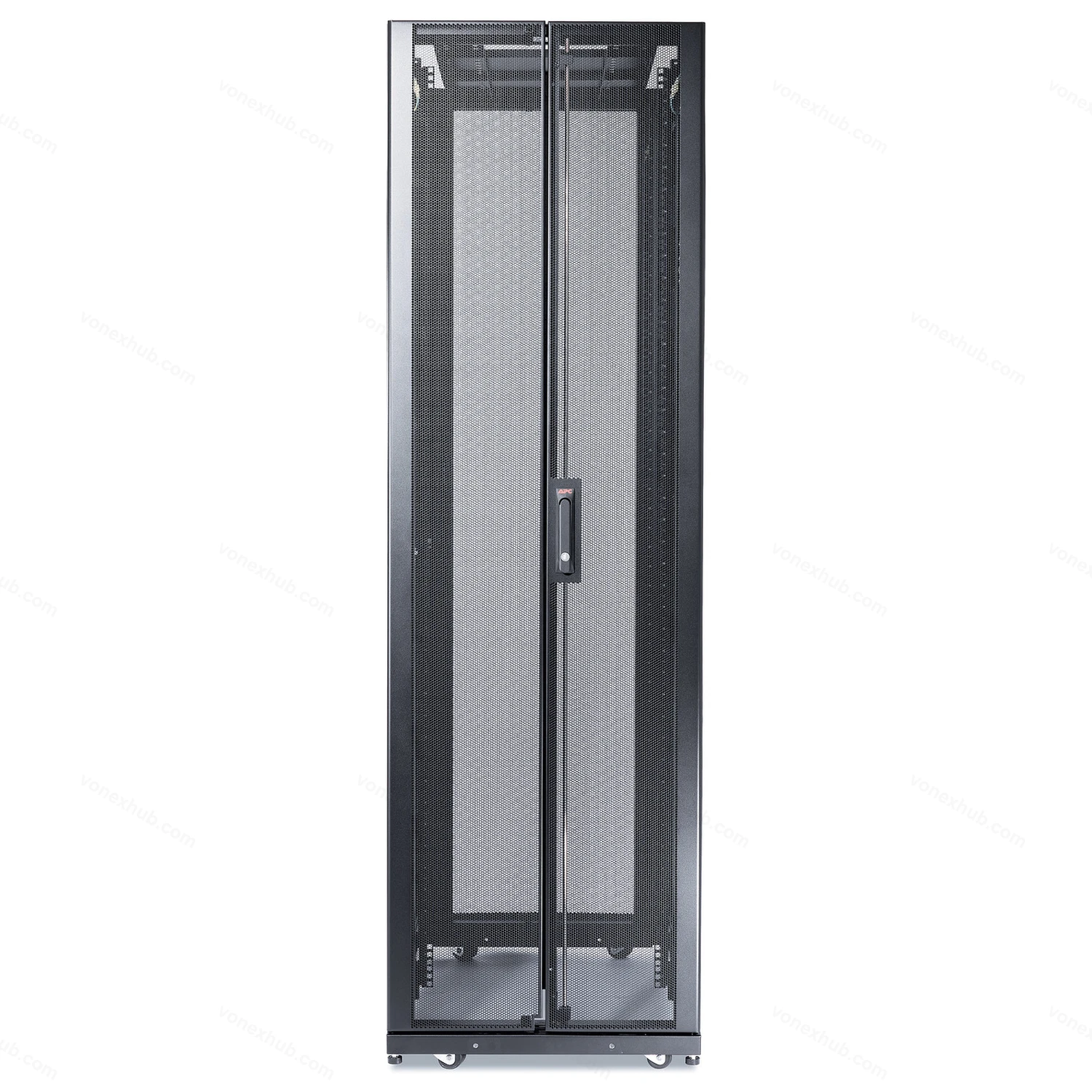

APC AR3305 NetShelter SX Front View

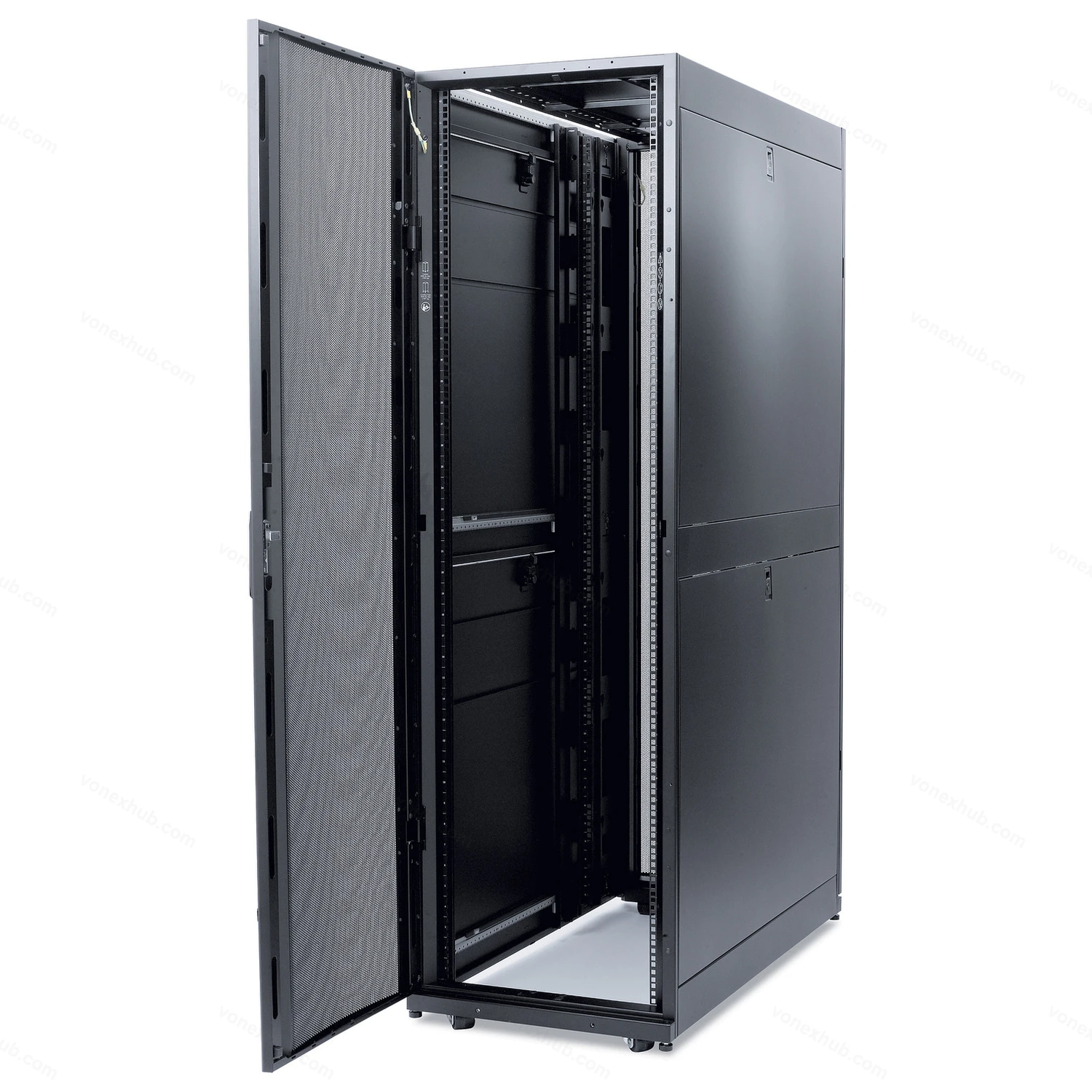

APC AR3305 NetShelter SX Interior with Door Open

APC AR3305 NetShelter SX Server Rack, 45U, 600x1200mm

$4,299.00

APC AR3305 NetShelter SX Server Rack Enclosure is ideal for medium to high-density environments and easily fits through standard doorways. The 45U height allows for an additional 3U of rack mounting space, with plenty of room for vertically mounting Rack PDUs and cable management. The wide rack design provides space for passing cabling from front-to-back.

💬 Check availability & delivery time — WhatsApp us before ordering.

SKU: AR3305 Category: Brand:

APC AR3305 NetShelter SX, Server Rack Enclosure, 45U, 2124H x 600W x 1200D mm, Black
Model: AR3305

Warranty: 60 months

Download Datasheet

APC AR3305 Specifications

Main

Product or component type Rack enclosure
Number of rack unit 45U
Provided equipment Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters
Side panels

Physical

Height 2124 mm
Width 600 mm
Depth 1200 mm
Product weight 141 kg
Colour Black
Mounting preference No preference
Mounting mode Not rack-mountable
Maximum mounting depth 1048 mm
Minimum mounting depth 190.5 mm
Rack width 19″
Marking 14 gauge EIA mounting rail
16 gauge front door
16 gauge post
18 gauge rear door
18 gauge roof
18 gauge side panels
Permanent permissible load 1020.6 kg dynamic
1701.0 kg static

Conformance

Standards UL 2416
UL 60950-1
EIA-310E

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 224 cm
Package 1 Width 133.4 cm
Package 1 Length 74.6 cm
Package 1 Weight 158.4 kg
