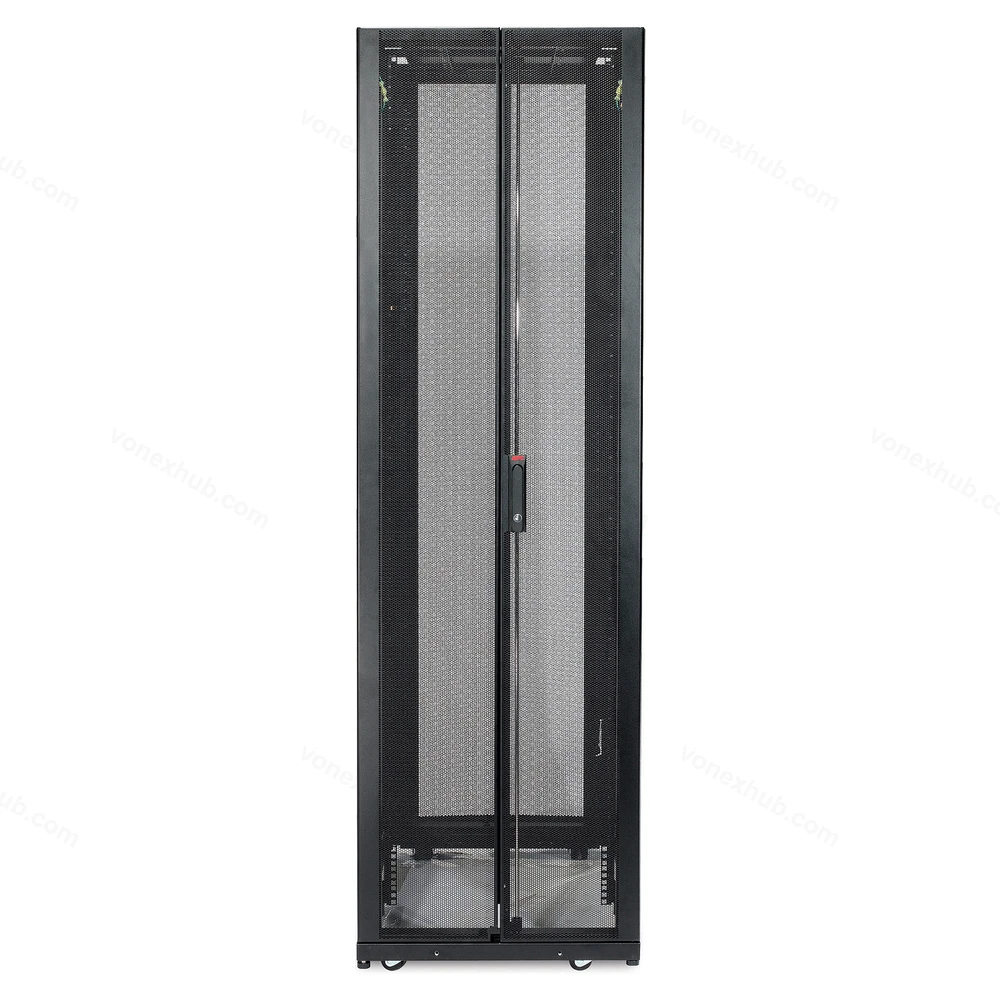

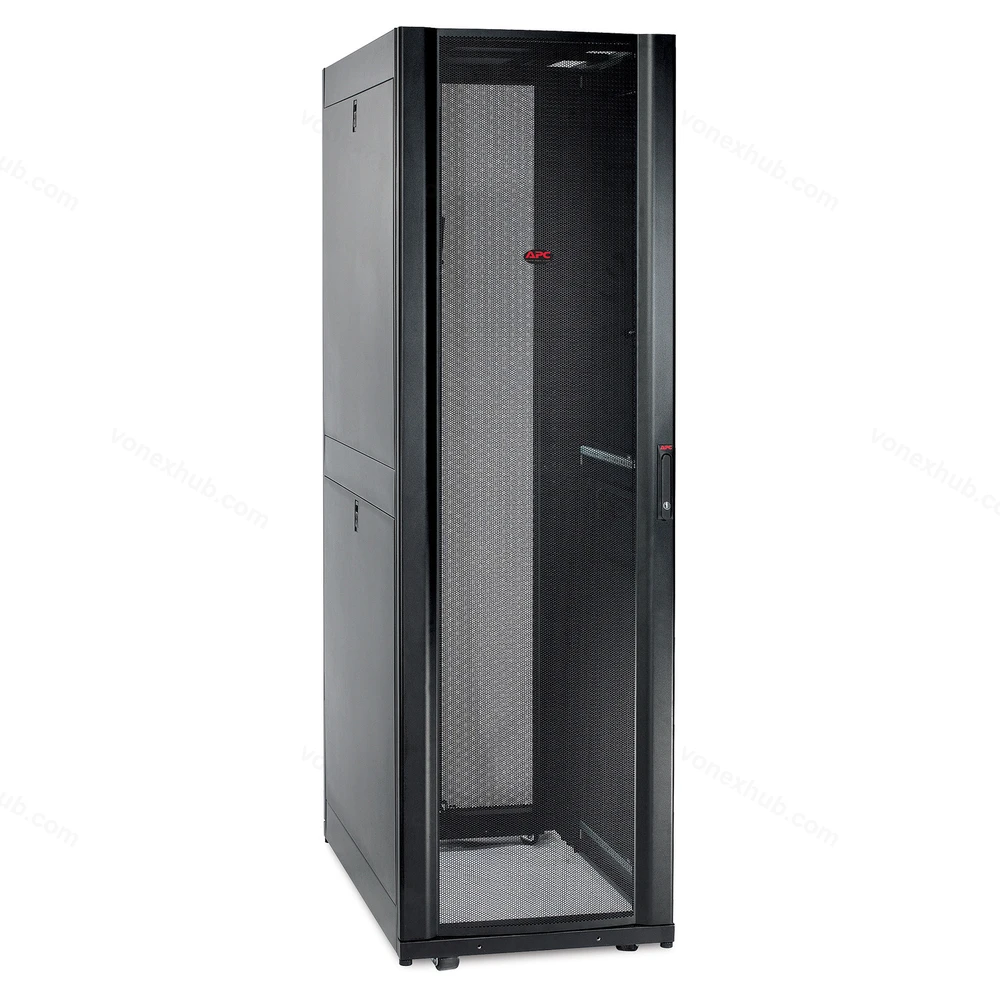

APC AR3100 NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H x 600W x 1070D mm
Model: AR3100
Warranty: 60 months
APC AR3100 Specifications
Main
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 42U |
| Provided equipment | Baying hardware Key(s) Keyed-alike doors and side panels Leveling feet Mounting hardware Pre-installed casters Side panels |
Physical
| Height | 1991 mm |
|---|---|
| Width | 600 mm |
| Depth | 1070 mm |
| Product weight | 125.09 kg |
| Colour | Black |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Maximum mounting depth | 914.9 mm |
| Minimum mounting depth | 190.5 mm |
| Rack width | 19″ |
| Marking | 14 gauge EIA mounting rail 16 gauge front door 16 gauge post 18 gauge rear door 18 gauge roof 18 gauge side panels |
| Permanent permissible load | 1020.6 kg dynamic 1701.0 kg static |
Conformance
| Standards | UL 2416 UL 60950-1 EIA-310E |
|---|
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 75.200 cm |
| Package 1 Width | 115.600 cm |
| Package 1 Length | 211.800 cm |
| Package 1 Weight | 144.550 kg |
