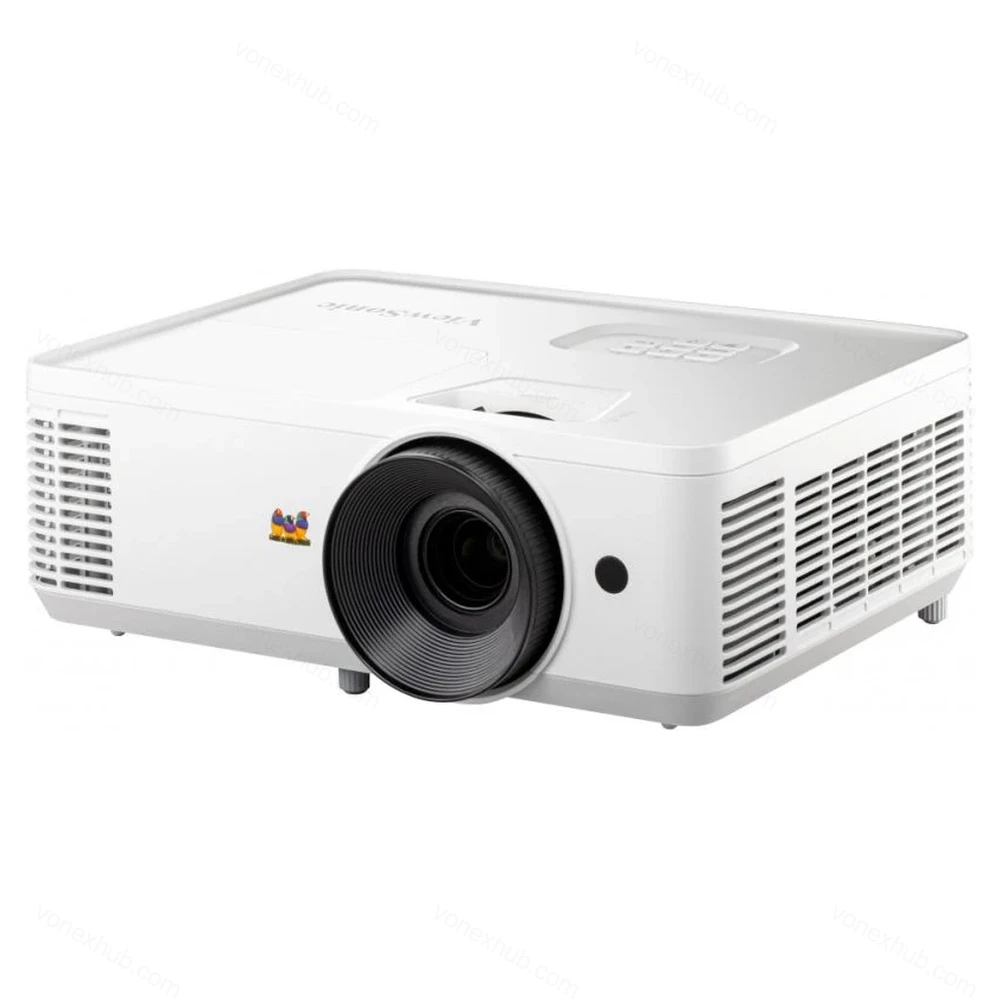

ViewSonic PX704HD Home & Business Projector 4000 Lumens 1080p
Model: PX704HD
Warranty: 3 years on-site (parts and labour), lamp 1 year or 1,000 hours, whichever comes first
“On-site” warranty means on-site pick and drop service only. It is not applicable to locations out of Singapore’s main island.
Please note: the ViewSonic PX704HD is supplied without a carrying case as standard. An optional ViewSonic Carrying Case (PJ-CASE-008) is available as an add-on above for safer transport and storage.
Quick Specs:
- Brightness: 4,000 ANSI Lumens
- Resolution: 1080p (1920 x 1080)
- Contrast Ratio: 22,000:1 (SuperEco Mode)
- Light Source: 240W UHP Lamp
- Light Source Life: up to 15,000 hours (SuperEco Mode)
- Weight: 2.7 kg (net)
The ViewSonic PX704HD is a 4,000 ANSI Lumens lamp projector ideal for home and business use. Featuring a 1080p FHD resolution and up to 300” ultra-large projection, it showcases clear and vivid visuals for home entertainment and presentations. With a high native contrast ratio achieved through its 0.65” DMD chip, this projector showcases captivating visuals even with low-light movie scenes.
It offers two HDMI ports for easy multimedia connectivity. Designed for enhanced functionality, the ViewSonic PX704HD includes a USB-A output to power HDMI wireless dongles, eliminating the need for extra adapters. Whether tilted up or down, the auto V keystone feature ensures automatic image correction, keeping perfectly-aligned visuals. Maintenance is hassle-free – simply use a laptop and USB cable for software updates.
Key Features
Bright Images Anytime
Featuring 4,000 ANSI Lumens of brightness, you’re guaranteed clear and vibrant visuals, making the PX704HD a perfect fit for both home spaces and business environments with ambient light.
Immerse in Crystal Clear Visuals
Experience every detail with ultra-sharp image quality delivered in Full HD 1080p resolution for a visual spectacle wherever you are.
Unveil Hidden Details
Immerse in a new realm of visual depth and vibrancy with the high native contrast ratio delivered by the Texas Instrument 0.65″ DMD chip. Every dark and brightly colored scene is displayed with unparalleled clarity, ensuring that no detail goes unnoticed.
Captivating Larger-than-Life Images
The PX704HD delivers images up to 300″ in size, surpassing the capabilities of TVs, laptops, and phones, and delivering an immersive viewing experience in the comfort of your home.

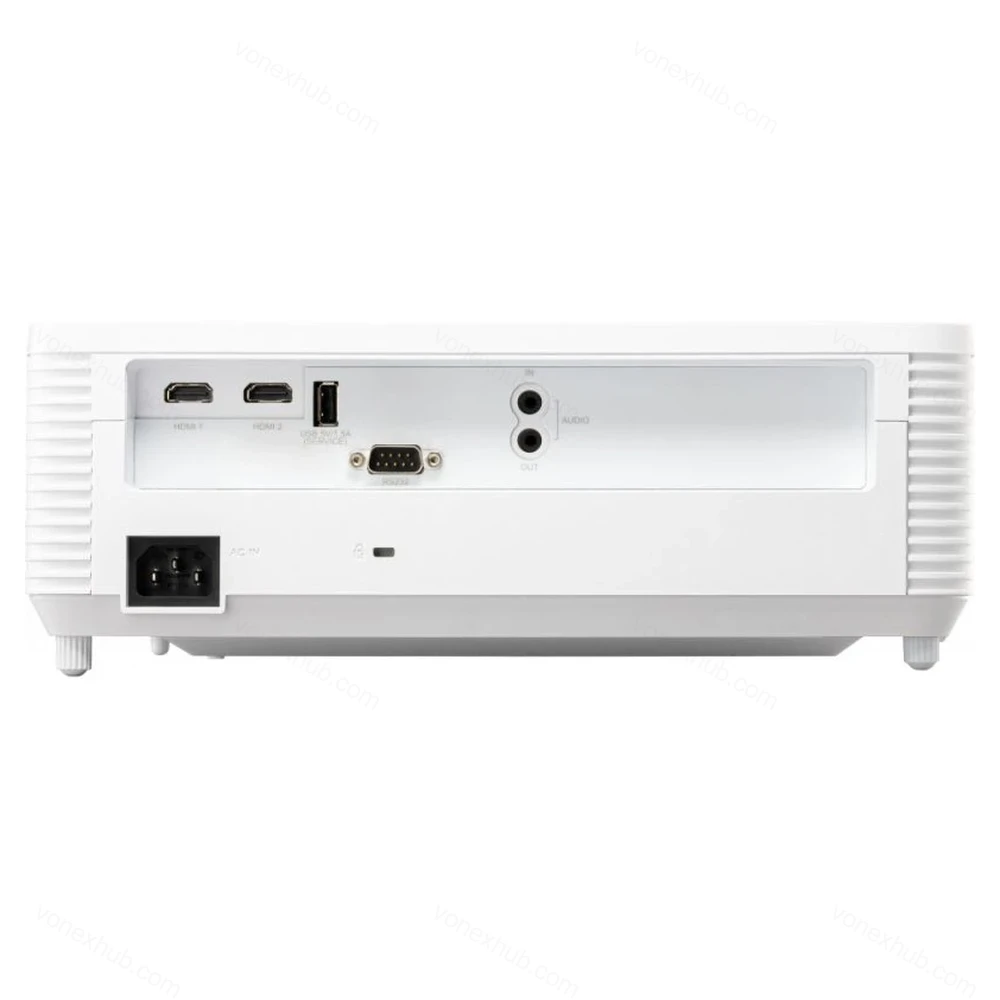

Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source. For buyers who need a higher-brightness WXGA business option, Vonexhub also carries the ViewSonic PA700W.
USB-A Power Supply
A built-in 5V/1.5A USB port serves as a charging hub for HDMI wireless dongles such as Chromecast, Apple TV, Fire TV, and Roku, eliminating the need for separate power adapters when streaming multimedia content.
Perfectly Proportioned Images Every Time
Say goodbye to distorted images for good. Thanks to the auto vertical keystone feature that corrects images automatically, the PX704HD projects perfectly proportioned images, even if you tilt the projector up or down.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop.
ViewSonic PX704HD Specifications
| Display/Image | |
|---|---|
| Projection System | 0.65″ 1080p |
| Native Resolution | 1920 x 1080 |
| Brightness | 4,000 ANSI Lumens |
| Contrast Ratio (SuperEco Mode) | 22,000:1 |
| Display Color | 1.07 Billion Colors |
| Resolution Support | VGA (640 x 480) to WUXGA_RB (1920 x 1200) *RB-Reduced Blanking |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15K – 102KHz |
| Vertical Scan Rate | 23 – 120Hz |
| Light Source | |
| Light Source Type | 240W UHP Lamp |
| Light Source Life (Normal Mode) | 4,000 hours |
| Light Source Life (SuperEco Mode) | 15,000 hours |
| Optical | |
| Lens | F=2.5-2.67, f=21.8-24.0mm |
| Projection Offset | 132% ±10% |
| Throw Ratio | 1.48 – 1.62 |
| Optical Zoom | 1.1x |
| Digital Zoom | 0.8x – 2.0x |
| Image Size | 30″ – 300″ |
| Throw Distance | 1 – 10m (100” @ 3.28m) |
| Keystone | ± 40° (V) |
| Auto Keystone | ± 40° (V) |
| Connectivity | |
| Input | HDMI: 2 (HDMI 1.4, HDCP 1.4), Audio-in (3.5mm): 1 |
| Output | Audio-out (3.5mm): 1, Speaker: 3W, USB Type A (Power): 1 (5V/1.5A) |
| Control | RS232 (DB 9-pin male): 1, USB Type A (Services): 1 (share with USB A Output) |
| General | |
| Audible Noise (Normal) | 34dB |
| Audible Noise (Eco) | 25dB |
| Input Lag | 16ms |
| OSD Language | 23 languages, including English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S. Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Japanese |
| Power | |
| Power Supply Voltage | 100 – 240V ±10%, 50/60Hz (AC in) |
| Power Consumption | Normal: 295W, Standby: <0.5W |
| Operating Temperature | 0 – 40°C |
| Weight and Dimensions | |
| Net Weight | 2.7kg (5.95 lbs) |
| Gross Weight | 3.8kg (8.38 lbs) |
| Dimensions (W x D x H, with Adjustment Foot) | 309 x 234 x 115mm (12.2 x 9.2 x 4.5 in) |
| Packing Dimensions | 400 x 337 x 168mm (15.7 x 13.3 x 6.6 in) |
| Standard Accessory | |
| Included | Power Cord, Remote Control, Quick Start Guide |
| Optional Accessory | |
| Lamp/Light Source | RLC-129 |
| Air Filter | RSPL |
| Wall/Ceiling Mount | PJ-WMK-007 |
| Carry Bag | PJ-CASE-008 |
