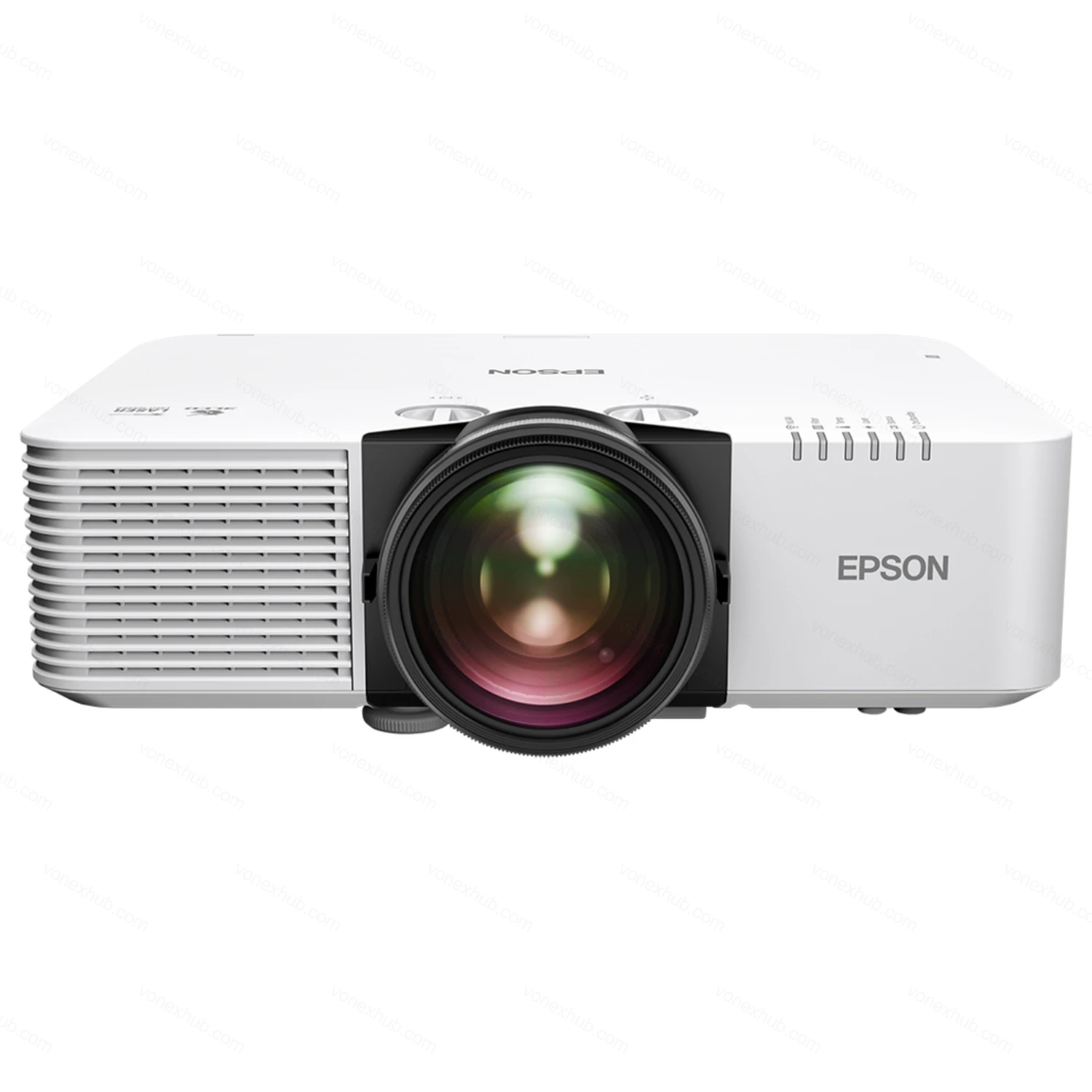

Epson EB-L690E Laser 3LCD Projector 6500 Lumens WUXGA
Model: EB-L690E
Warranty: 3 years Parts & Labor Carry-In
View full Epson warranty terms
Quick Specs:
- Brightness: 6,500 lm Colour Light Output / 6,500 lm White Light Output
- Resolution: WUXGA (1920 x 1200)
- Projection Technology: 3LCD
- Contrast Ratio: Over 5,000,000:1
- Light Source: Laser Diode, 20,000 hours (Normal) / 30,000 hours (Extended)
- Weight: Approx. 8.2kg
Epson EB-L690E Overview
The Epson EB-L690E adds pro features to the compact and versatile Epson business projector family. Featuring 6,500-lumens of color and white brightness, it is ideal for classrooms and lecture halls, conference rooms, hybrid workspaces and more.
The Epson EB-L690E displays double HD resolution on-screen with 4K Enhancement Technology for sharp, detailed images—even up close. This powerful projector produces exceptionally vibrant, high-resolution images up to 500″ in 16:10, plus is capable of projecting in a variety of other aspect ratios, including ultra wide 16:6 and 21:9.
Designed with convenience in mind, the Epson EB-L690E features an up to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode. And for simple, seamless installation, this versatile solution offers a variety of powerful features, such as optical zoom, wide lens shift, geometric correction tools and more.

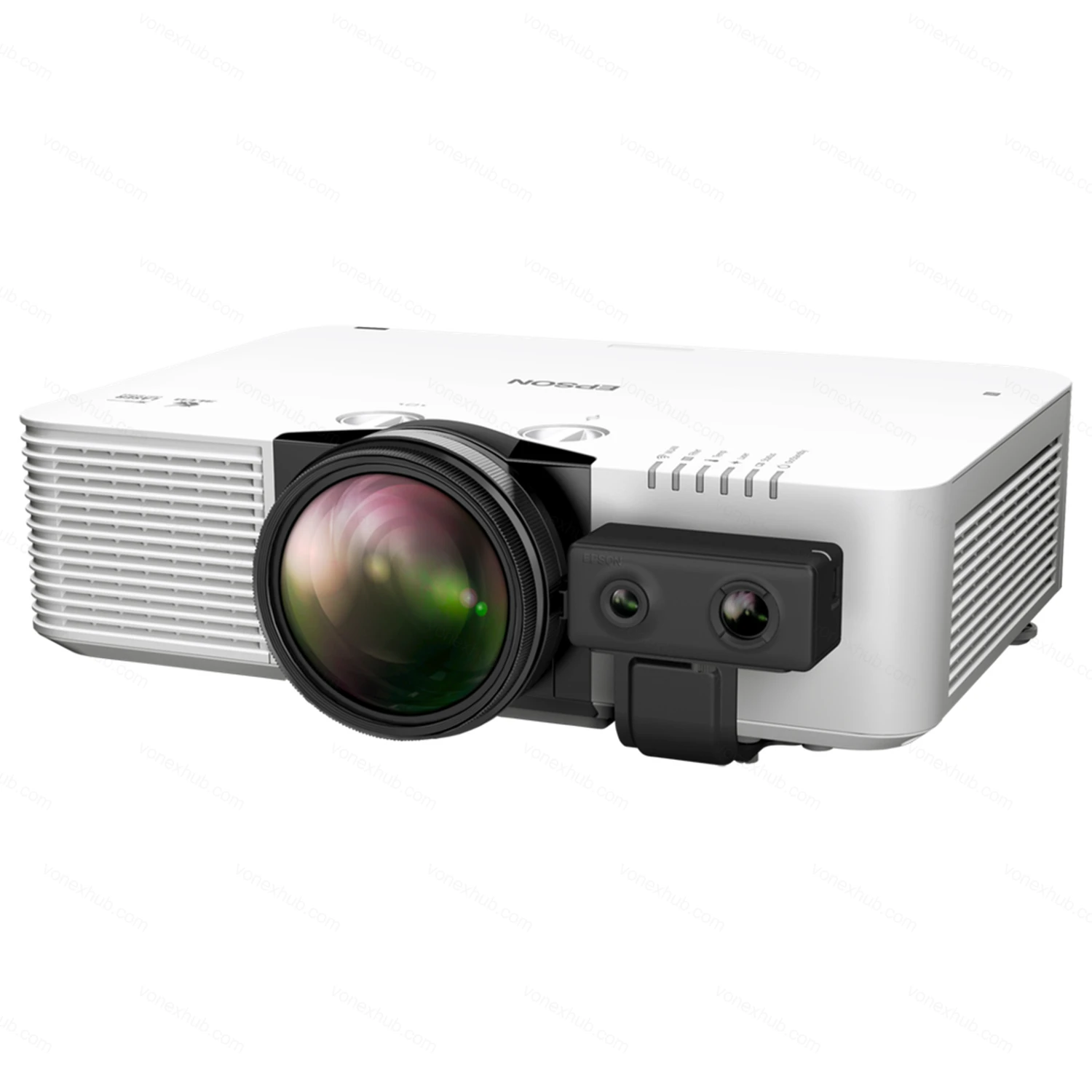

With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection and Miracast. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.
Epson EB-L690E Key Features
- 6,500 lumens color/white brightness
- WUXGA with 4K Enhancement for clear, detailed images
- Display up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9
- Lightweight, compact design allows for easy installation
- Up to 30,000-hour laser light source and air filter
- AirPlay 2 supported
Epson EB-L690E Specifications
Projection Technology
RGB liquid crystal shutter projection system (3LCD)
Brightness
Light Output (Center): 7,100 lm
White Light Output (Normal/Eco): 6,500lm / 4,550lm
Colour Light Output: 6,500lm

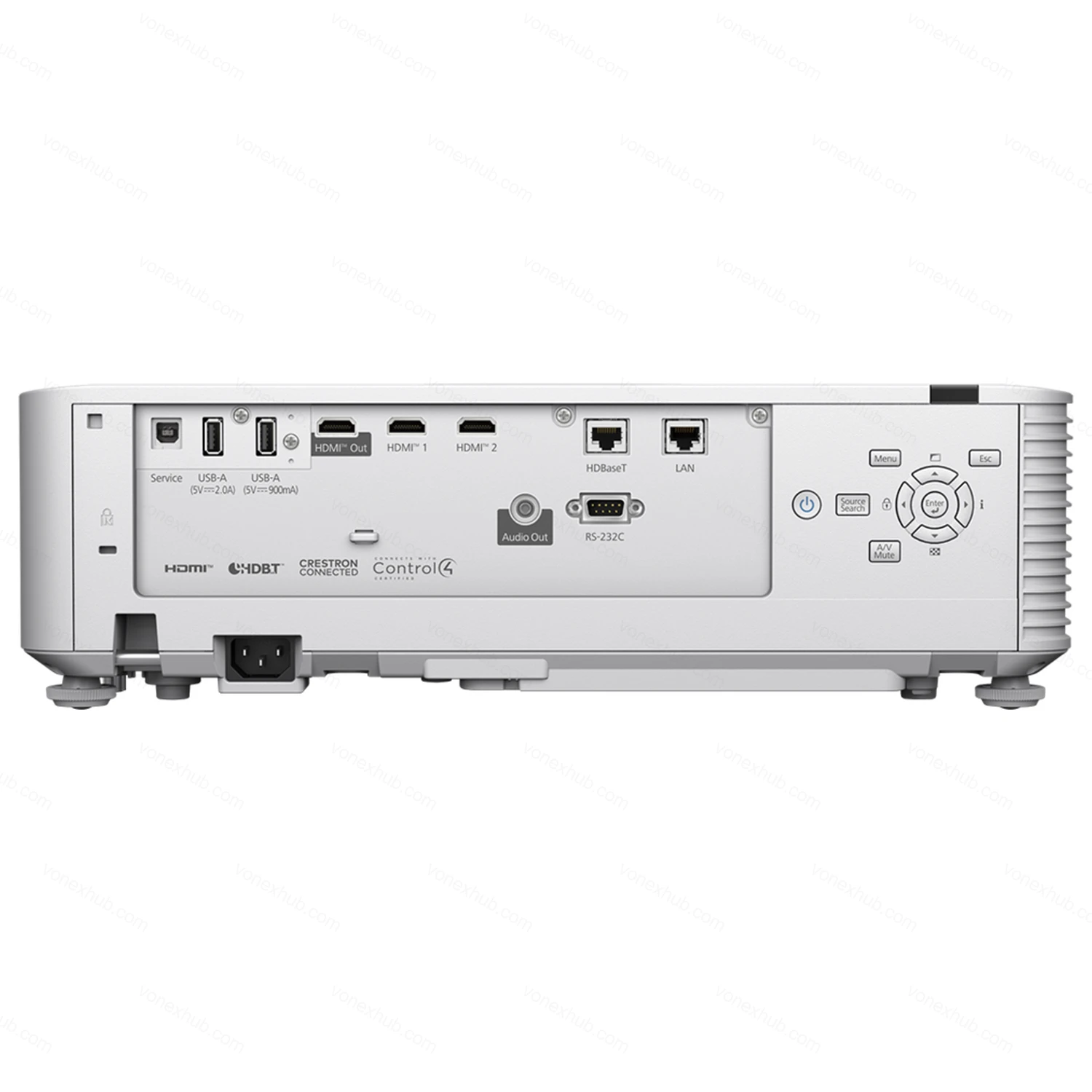

Connectivity
USB: USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, 5V/0.9A Power Supply), USB Type B: 1 (For Firmware Update, Copy OSD Settings)
Network: Wired LAN: RJ45 x 1 (100Mbps), Wireless LAN: Built-in
Digital Input: HDMI: 2 (HDCP 2.3), HDBaseT: 1 (HDCP 2.3)
Audio Output: Stereo Mini: 1
Control I/O: RS-232C: 1 (D-Sub 9pin)
Digital Output: HDMI Out: 1 (HDCP2.3, supports only HDMI1 input)
Contrast Ratio
Over 5,000,000:1
Screen Size (Projected Distance)
Standard Size: 80″ diagonal 2.39m – 3.90m
Zoom: Wide: 50″ – 500″ (1.49m – 14.94m)
Zoom: Tele: 50″ – 500″ (2.44m – 24.35m)
Geometric Correction
Vertical/Horizontal Keystone: ±30° / ±30°
Projection Orientation: 360º Free
Operating Temperature
Single Use: Low Altitude (0 – 2,286m/7,500ft): 0 – 45°C (32 – 113°F); High Altitude (Over 2,286m/7,500ft): 0 – 40°C (32 – 104°F); 20% – 80% Humidity, No Condensation
Multi-projection Use: Low Altitude (0 – 2,286m/7,500ft): 0 – 40°C (32 – 104°F); High Altitude (Over 2,286m/7,500ft): 0 – 35°C (32 – 95°F); 20% – 80% Humidity, No Condensation
Operating Altitude
Over 1,500m/4,921ft with High Altitude Mode: 0 – 3,048m (0 -10,000ft)
Start-Up Period
12 seconds (Epson Logo); Warm-up Period: 30 seconds
Quick Start-Up: Less than 8 seconds (Display)
Cool Down Period
Instant Off
Internal Speaker(s)
Sound Output: 10 W Monaural
Direct Power On/Off
Yes
Dimension Excluding Feet (W x H x D)
440 x 122 x 304mm
Weight
Approx. 8.2kg
Air Filter
Type: Electrostatic Filter
Maintenance Cycle: 20,000 hours (Normal) / 30,000 hours (Extended)
Fan Noise
Fan Noise (Normal / Eco): 32dB / 25dB
Power
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (Normal/Extended): 399W / 295W
Standby (Network On / Off): 2.4W / 0.4W
Colour Mode
Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema
Miracast
Certification: Wi-Fi CERTIFIED Miracast R2
Supported Codec: H.264 (AVC)
Wireless Specification (In-built Wireless LAN and Screen Mirroring)
Supported Mode: Infrastructure, Simple AP (Wi-Fi Direct)
Supported Speed: IEEE 802.11a/b/g/n/ac/ax
Security Type: Infrastructure: Open, WPA2 / WPA3-PSK, WPA2/WPA3-EAP, Supported EAP Type: PEAP, EAP-TLS; Simple AP (Wi-Fi Direct): WPA2-PSK (AES)
AirPlay 2
Supported Codec: H.264 (AVC), H.265 (HEVC), AV1, VP9, MPEG-2, MPEG-4
Main Parts Specification
LCD: Size: 0.67″ (C2 Fine), Driving Method: Poly-silicon TFT active matrix, Pixel Number: 2,304,000 dots (1920 x 1200) x 3, Native Resolution: WUXGA, Aspect Ratio: 16:10, Pixel Arrangement: Cross stripe
Light Source: Type: Laser Diode, Life (Normal / Extended): 20,000 hours / 30,000 hours
Resolution: WUXGA with 4K Enhancement, Pixel Number: 4.6M pixels (1920 x 1200 x 2)
Projection Lens: Type: Optical Zoom (Manual) / Focus (Manual), F-Number: 1.5 – 1.7, Focal Length: 20.0 – 31.8mm, Zoom Ratio: 1.0 – 1.60, Throw Ratio: 1.35 – 2.20
Lens Shift: Vertical: ±50% (Manual), Horizontal: ±20% (Manual)
Adjustment Functions
Aspect Mode: Auto, 4:3, 16:9, Full, H-zoom, V-zoom, Native
Frame Interpolation: N/A
