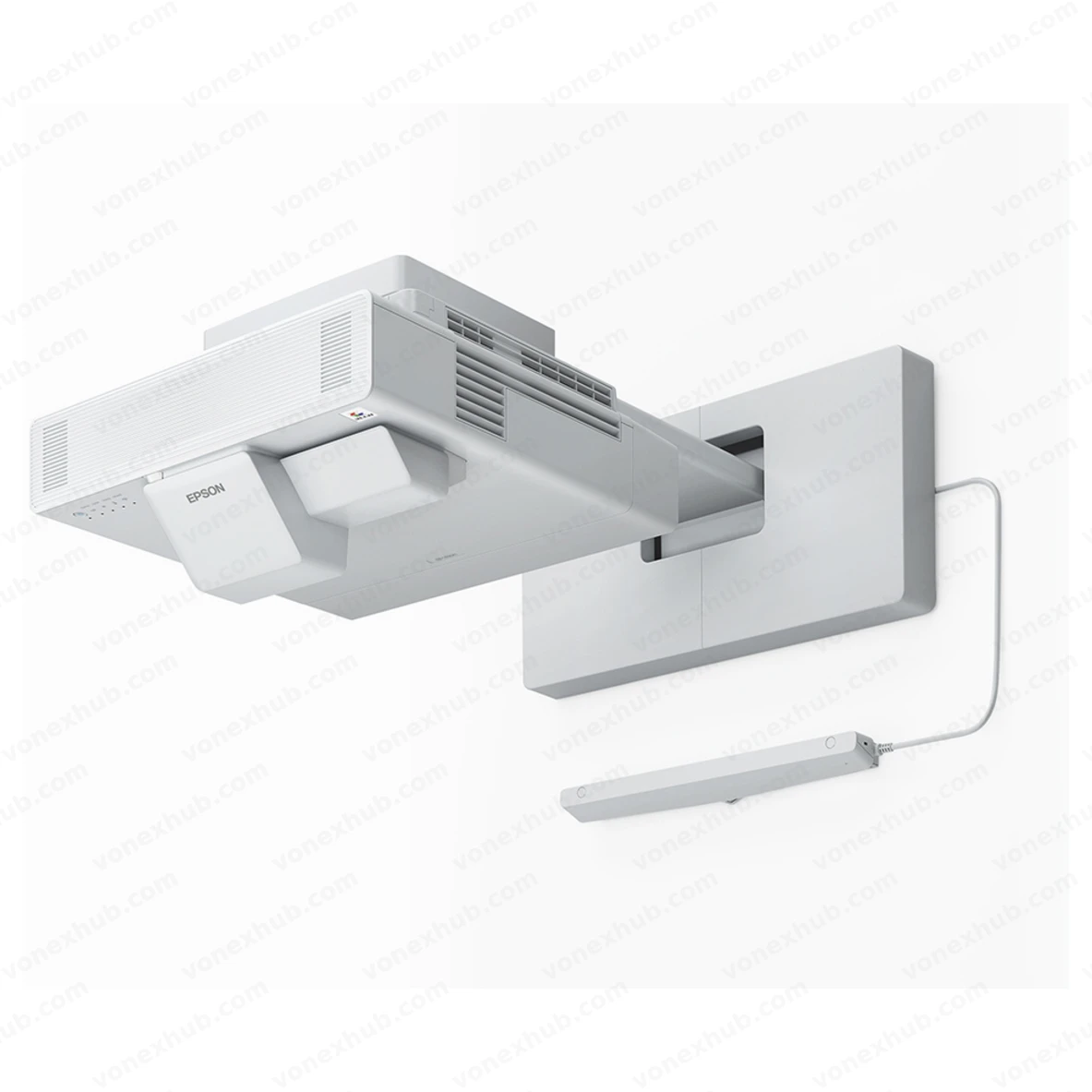

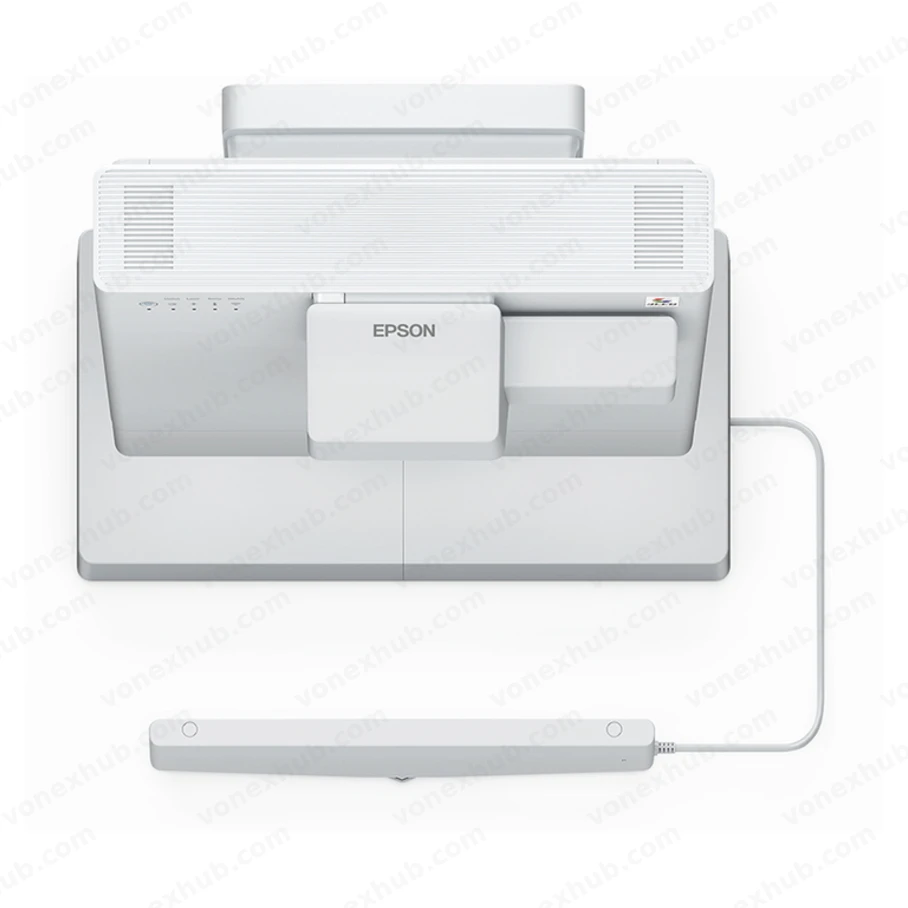

Epson EB-1485Fi Interactive Ultra Short Throw Laser Projector 5000 Lumens 1080p
Model: EB-1485Fi
Warranty: 36 months On-Site Service
View full Epson warranty terms
Quick Specs:
- Brightness: 5,000 lm Colour Light Output / 5,000 lm White Light Output
- Resolution: Full HD (1080p)
- Projection Technology: 3LCD (RGB liquid crystal shutter projection system)
- Contrast Ratio: Over 5,000,000:1
- Light Source: Laser Diode, 20,000 hours (Normal/Quiet) / 30,000 hours (Extended)
- Weight: Approx. 9.8kg
Epson EB-1485Fi Overview
Up your game and bring your presentations and learning experiences to life with the Epson EB-1485Fi projector. Designed for meeting spaces and educational purposes, the ultra wide, super bright Full HD laser display allows image projection of up to 120″ diagonal at the 16:6 ratio. A true PC-free digital whiteboard, the Epson EB-1485Fi projector allows you to draw, save, print, and even email without a computer.
The master of collaborative devices, the Epson EB-1485Fi integrates the functions of a projector, whiteboard, and interactive display, transforming any flat surface into an interactive virtual space. Without using an additional computer or software, the projector allows users to turn it on and start writing or presenting immediately.
Offering 5,000 lumens of equal colour and white brightness, the Epson EB-1485Fi presents a choice of either 100-inch 16:9 display or the new ultra-wide 120-inch 16:6 display. Delivering bright, true-to-life images to impactful presentations, the EB-1485Fi works splendidly even in well-lit rooms.
Imagine a classroom with a giant, interactive, and immersive digital drawing board instead of the traditional whiteboard. Operated by either a six-point multi-touch or two interactive pens, the Epson EB-1485Fi enhances the education experience by allowing end users the direct control of the education software that is projected on the screen. Users can now create immediate drawings, add on annotations, and share information onto other devices instantly.
When educators and students alike are given the opportunity to co-create and interact simultaneously on this large digital canvas, the lesson becomes enriching, stimulating, and fun.
The Epson EB-1485Fi connects people with technology, providing platforms for creative ideas, knowledge exchange, and collaborations across a wide variety of sectors where long life, minimal maintenance, and low cost of operation hold significant importance. In addition to an enterprise-level security via integrated wireless networking, users can save, print, and email content directly from the interactive laser display. Wirelessly sharing content simultaneously from multiple devices with Miracast is also part of the Epson EB-1485Fi’s charm.
Epson EB-1485Fi Key Features
Ultra Bright Image Quality
An impressive 5,000 lumens of color/white brightness with laser light source.
Wireless Integration
Wireless connectivity with Wi-Fi and Miracast support.
Lower Total-Cost-of-Ownership
Maintenance free Laser Light Source with up to 20,000 light hours.
Dual Screen Seamless Interactivity
Ultra wide screen enabling user to present one panoramic image. Two Epson EB-1485Fi projectors can be installed side by side to create an ultra-wide interactive panoramic screen of up to 180 inches diagonal.
Quick & Easy Installation
Wall mount compatibility with HDBaseT connectivity via simple, intuitive user’s interface.
Superior Image Quality
Enjoy a dynamic viewing experience with Full HD resolution on screen with laser light source. Deliver vibrant and sharp high-resolution image displays from PCs, tablets and smartphones and watch your photos, 3D CAD, Blu-ray and online videos come to life in Full HD. Data figures on spreadsheets and charts will also be displayed clearly for everyone to read accurately.
Seamless Edge Blending
Engage your audience in compelling and fascinating presentations on a larger seamless screen with two Epson EB-1485Fi projectors (with interactivity), or up to four (without interactivity) at any one time. With the Epson EB-1485Fi’s built-in edge blending function, you can now interact, control, and present immersive content seamlessly over one large panoramic screen.
Ultra-short Throw Advantage
As light is not blocked by the presenter, less shadow is formed on the screen, allowing the audience to clearly see the information projected at all times. With a wide projection screen size of up to 120 inches 16:6, you enjoy bigger image projection for greater visibility. The projection screen is not glossy and does not cause glaring reflections of ambient light like florescent lamps and sunlight from windows.
Wide Range of Connectivity
With the rich input-output options provided by the smart interactive projector platform, you can enjoy great flexibility of importing information from various sources and sharing the meeting results in multiple ways, saving you precious time and increasing productivity.
Laser Light Technology
Blue light from the laser is projected through a beam splitter, which divides the light into two beams. One beam is reflected by a phosphor wheel, changing it into yellow, while the other beam remains blue. The two beams are then recombined into white light and separated into red, green and blue through dichroic mirrors. Each of the three colours passes through LCD panels, producing three individual images, which are transmitted through a prism and combined into the final full-colour image. Engineered with inorganic LCD panels and an inorganic phosphor wheel, this newly designed laser light source delivers 20,000 hours of maintenance-free use, cutting down on the frequency of lamp replacements and lowering the total cost of ownership.
Epson EB-1485Fi Specifications
Projection Technology
RGB liquid crystal shutter projection system
Brightness
White Light Output (Normal / Eco): 5,000lm / 3,500lm
Colour Light Output: 5,000lm / 3,500lm
Contrast Ratio
Over 5,000,000 : 1
Connectivity
Analog Input: D-Sub 15Pin: 2 (Blue, Black)
Composite: RCA x 1 (Yellow)
Digital Input: HDMI: 3 (HDCP2.3)
HDBaseT: 1 (HDCP2.3)
Analog Output Terminal: D-Sub 15Pin: 1 (Black) (in common with Computer 2)
Digital Output Terminal: HDMI: 1
Audio Input: Stereo Mini Jack: 3
Audio Output: Stereo Mini Jack: 1
Mic I/O: Stereo Mini x 1
Control I/O: RS-232C: D-Sub 9pin x 1, Interactive Sync: In x 1, Out x 1, Touch Unit Control: Mini DIN 8pin x 1
USB: Type A: 2 (for USB Memory, Printer, USB Document Camera, Firmware Update, Copy OSD Settings), Type B: 2 (for USB Display, Mouse, K/B, Control, Interactive, Saving Data File to PC via Cable)
Network: Wireless: Built-in (Screen Mirroring or WLAN Switchable Usage) x 1; USB Type A (In common with Memory I/O) x 1 using Optional Wireless LAN Unit
Screen Size (Projected Distance)
65″ – 100″ [39.2 – 61.3 cm] @ 16:9 ; 61″ – 120″ [66.5 – 80.1 cm] @ 16:6
Geometric Correction
Vertical/Horizontal Keystone: ±3° / ±3°
Quick Corner: Yes
Operating Temperature
Single Use: 0 m to 2,286 m (0 ft to 7,500 ft): 0°C to 40°C [41°F to 104°F]; 20% to 80% Humidity, No Condensation. Over 2,286 m to 3,048 m (7,500 ft to 10,000 ft): 0°C to 35°C [41°F to 95°F]; 20%-80% Humidity, No Condensation
Multi-projection Use: 0 m to 2,286 m (0 ft to 7,500 ft): 0°C to 35°C [41°F to 95°F]; 20% to 80% Humidity, No Condensation. Over 2,286 m to 3,048 m (7,500 ft to 10,000 ft): 0°C to 30°C [41°F to 86°F]; 20%-80% Humidity, No Condensation
Operating Altitude
Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 m to 3,048 m (0 ft to 10,000 ft)
Start-Up Period
Less than 8 seconds, Warm-up Period: 30 seconds
Cool Down Period
Instant Off
Internal Speaker(s)
Sound Output: 8W x 8W Stereo
Direct Power On/Off
Yes
Dimension Excluding Feet (W x H x D)
Fan Noise (Normal / Extended / Quiet): 37dB / 37dB / 28dB
Dimension: 458 x 209.5 x 375 mm
Weight
Approx. 9.8 kg
Air Filter
Type: Electrostatic Filter
Maintenance Cycle: 20,000 hours
Wireless LAN – Built-In
Supported Speed For Each Mode Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps, IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps
Access Point: IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps
Supported Mode: Infrastructure, Access Point (Wifi Direct)
Wireless LAN Security: Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EA; Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Miracast
Supported Speed For Each Mode Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps, IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps
Access Point: IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps
Supported Mode: Infrastructure, Access Point (Wifi Direct)
Specifications of Main Parts
LCD: Size: 0.62″ (C2fine), Resolution: 1080p (1366 x 768 x 2)
Light Source: Type: Laser Diode, Life (Normal / Eco / Extended): 20,000 / N/A / 30,000 hrs
Projection Lens: Type: No optical zoom / Focus (Manual), F-Number: 1.50, Focal Length: 3.9mm, Zoom Ratio: 1.0 – 1.35 (Digital Zoom), Throw Ratio: 0.27 – 0.37 (Wide to Tele)
Power
Power Consumption (Normal / Eco): 366W / 262W
Standby (Network On / Off): 2.0W / 0.5W
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Interactive Input Device
Interactive Pen Dimensions: 161 x 24 mm (diameter) maximum
Interactive Pen Weight: 30g (Excluding a battery)
Input Devices
Interactive Pen: Digital Pen (Easy Interactive Pen A & B)
Fingers: Yes (Up to 6 Fingers)
Touch Unit
Maximum Dimension (D x W x H): 422 x 40 x 65 mm
Weight: 620g
Interactive Unit
Technology: Infrared
Input Devices: Interactive Pen: Digital Pen (Easy Interactive Pen A & B), Finger: Yes (Up to 6 Fingers)
Connection To Computer: USB, Network
Calibration: Pen: Auto / Manual (25 Points)
Functions: Hover, Right Click, Auto Adjust Pen Area
Wireless Specifications (Screen Mirroring)
Supported Speed: Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps, IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps; Access Point (Wifi Direct): IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps
Supported Connection Mode: Infrastructure, Access Point (Wifi Direct)
Supplied Accessories
Power Cable: 1.8m x 1
HCB (HDBaseT Connection and Control Box)
AC Cable for HCB: 1.8m x 1
USB Cable for HCB: 1.8m x 1
Remote Control with Battery Attached
Interactive Pens: 2 pens with AA Battery
Pen Stand: 1
Setting Plate (Wall Mount): ELPMB62 (Included)
Pen Tip (Felt): 4
Pen Tip (Teflon): 2
Finger Touch Unit: 1
Corner Marker for Automatic Geometry Adjustment: 4
Lens Cap
Password Protect Sticker
Cable Cover
Optional Accessories
Air Filter: ELPAF56
Remote Control Cable Set: ELPKC28 (10m x 2) (for synchronization of Interactive IR)
Wall Mount for FTU: ELPMB63
Easy Interactive Pen 1 (Orange): ELPPN05A
Easy Interactive Pen 2 (Blue): ELPPN05B
Replacement Hard Pen Tips: ELPPS03 (for ELPPN05)
Replacement Soft Pen Tips: ELPPS04 (for ELPPN05)
Wireless LAN unit: ELPAP11
HDBaseT Connection and Control Box: ELPHD02
