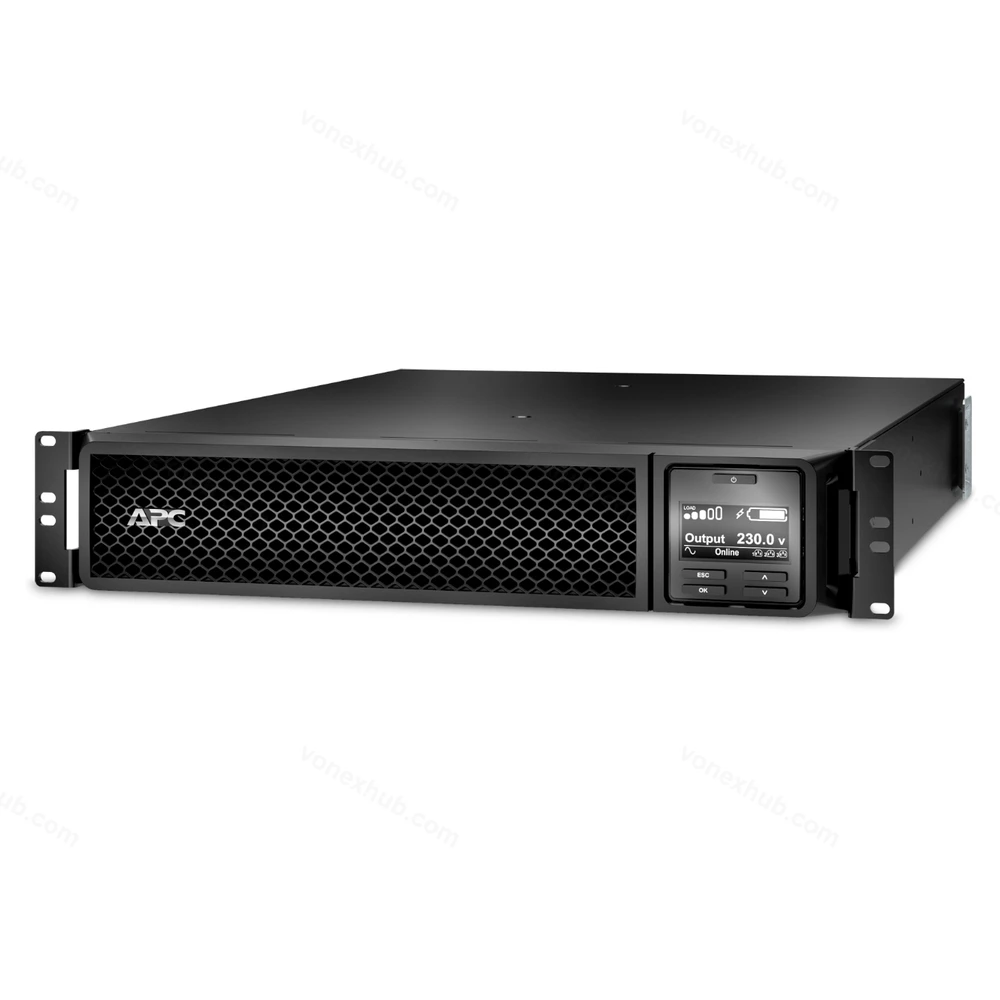

APC SRT1500RMXLI Smart-UPS On-Line, 1500VA/1500W, Rackmount 2U, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit
Model: SRT1500RMXLI
Warranty: 24 Battery|36 UPS
1500VA/1500W double-conversion on-line pure sine wave 2U rackmount UPS. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
Rack/Tower convertible (rail kit included). Delivers clean power with zero transfer time for critical or sensitive devices.
Add up to 10 external battery packs (SRT48BP) for extended runtime.
See the full APC Smart-UPS range for other capacities and form factors.
APC SRT1500RMXLI Specifications
Main
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 220 V 240 V |
| Input connection | IEC 60320 C14 |
| Efficiency at full load | 100…275 V 40% load 176…275 V full load |
| Input frequency | 40…70 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 1500 W |
| Rated power in VA | 1500 VA |
| Output connection | 6 IEC 60320 C13 |
| Bypass type | Built-in bypass |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 2 % |
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 1500 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery | APCRBC155 |
Graphs
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
Complementary
| Battery type | Lead-acid internal included |
|---|---|
| Emergency power off | Yes |
| Free slot | 1 |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port USB port |
| Surge energy rating | 432 J |
| Number of rack unit | 2U |
| Cable length | 1.8 m |
| Number of cables | 1 |
| Color | Black |
| Height | 85 mm |
| Width | 432 mm |
| Depth | 505 mm |
| Product weight | 21 kg |
| Mounting location | Rack |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Mounting mode | Rack-mounted with included kit |
| Provided equipment | CD with software Communication cable Documentation CD Installation guide Rack mounting hardware Rack mounting brackets Rack mounting support rails USB cable Warranty card |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | High density |
| Redundant | No |
| Range of product | Smart-UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
Environment
| Product certification | CE EAC UK PSTI |
|---|---|
| Marking | CE Mark |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15240 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 317 Btu/h |
| Operating altitude | 0…10000 ft |
Batteries & Runtime
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 48 V |
| Extendable runtime | 1 |
| Included battery module | 1 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 108 W rated |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.5 cm |
| Package 1 Width | 69 cm |
| Package 1 Length | 59.5 cm |
| Package 1 Weight | 32.58 kg |
