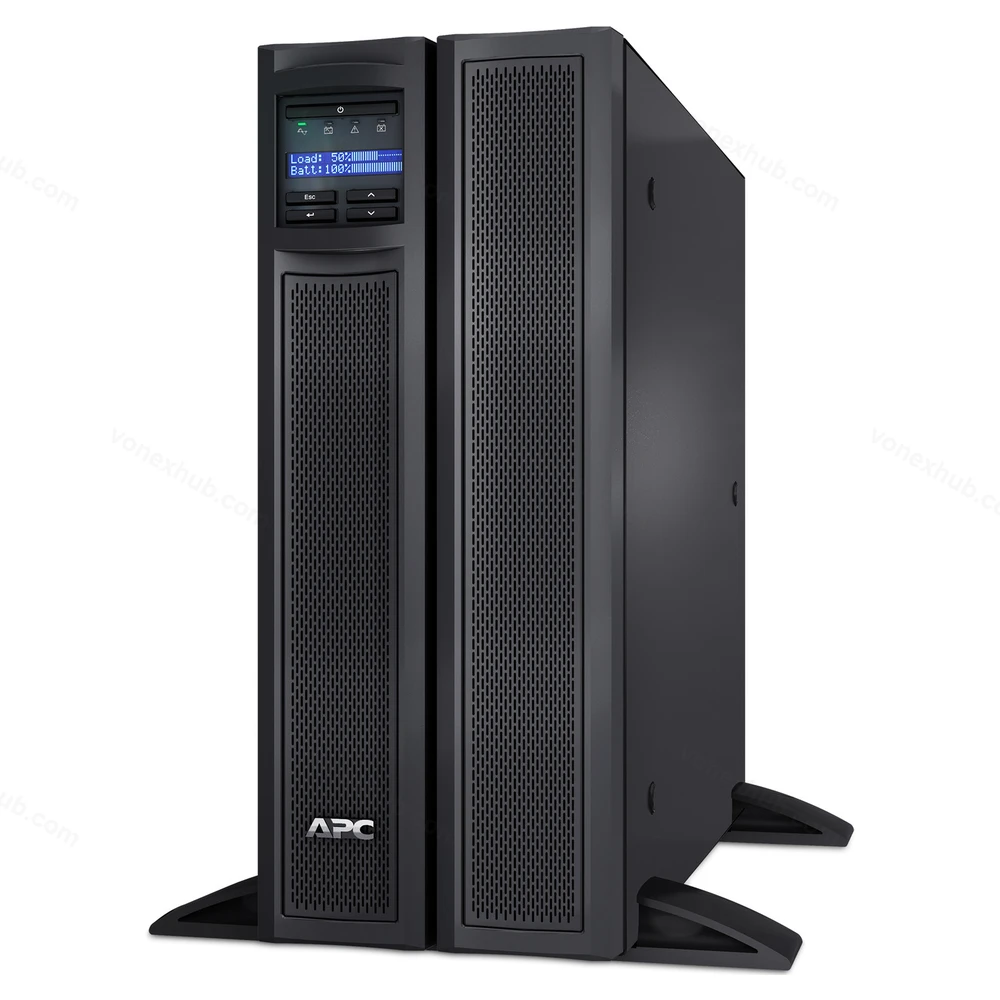

APC SMX3000HV Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth
Model: SMX3000HV
Warranty: 24 Battery|36 UPS
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
See the full APC Smart-UPS range for other capacities and form factors.
APC SMX3000HV Specifications
Main
| Main input voltage | 208 V AC 230 V AC |
| Other input voltage | 220 V 240 V |
| Input connection | IEC 320 C20 Schuko CEE 7 / EU1-16P BS1363A British |
| Efficiency at full load | 140…280 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 208 V AC 1 phase 230 V AC 1 phase |
| Other output voltage | 208 V 220 V 240 V |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |

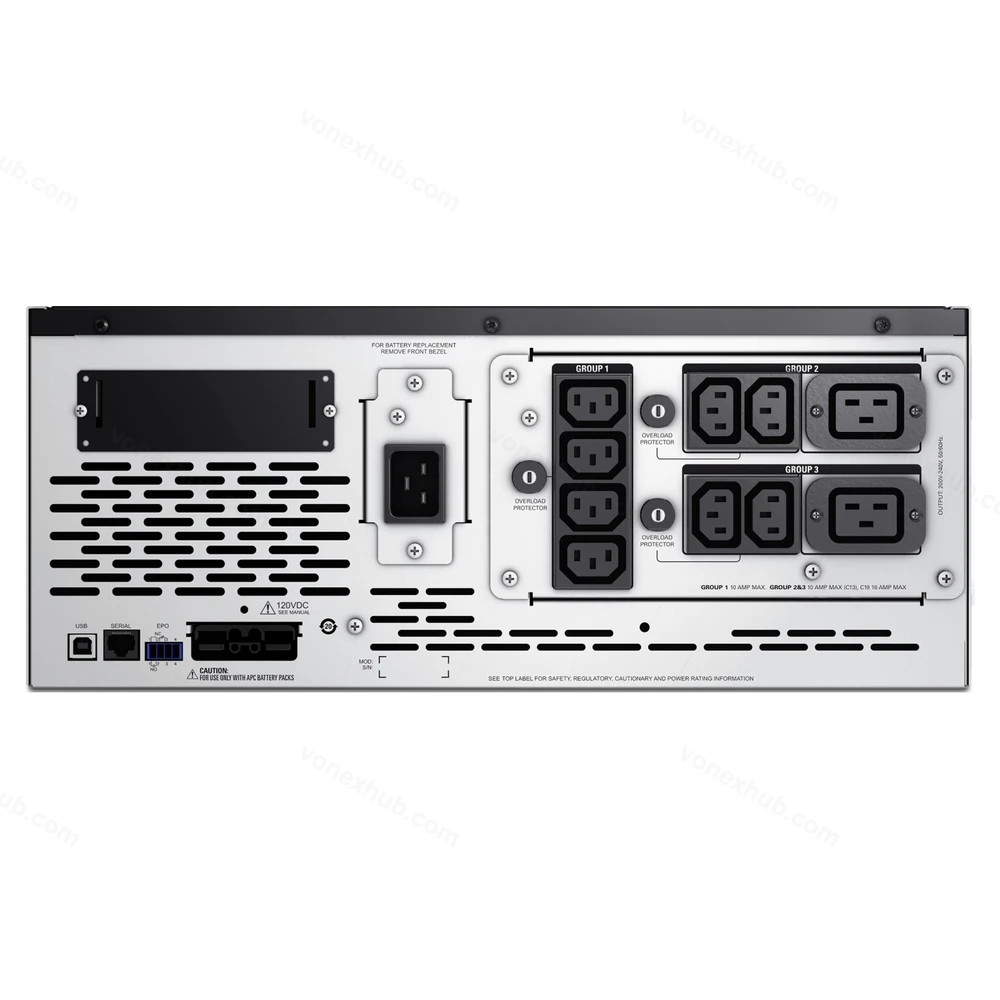

| Output connection | 8 IEC 320 C13 2 IEC Jumpers 2 IEC 320 C19 |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery | APCRBC143 |
Graphs
| Run Time | View Runtime Graph |
Complementary
| Battery type | Lead-acid internal included |
| Control panel | Multifunction LCD status and control console LED status display with on line : on battery : replace battery and overload indicators |
| Emergency power off | Yes |
| Free slot | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| UPS connectivity | Serial port USB port Available expansion slot |
| Surge energy rating | 645 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 4U |
| Cable length | 1.8 m |
| Number of cables | 1 |
| Color | Black |
| Height | 432 mm |
| Width | 178 mm |
| Depth | 483 mm |
| Product weight | 38.64 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted Tower |
| Two post mountable | 1 |
| USB compatible | Yes |
| Provided equipment | CD with software Documentation CD Smart UPS signalling RS-232 cable User manual USB cable Rack mounting brackets |
| Number of power modules | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Extended run |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
Environment
| Product certification | CE EAC IRAM RCM TISI VDE UK PSTI |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 55 dBA |
| Heat dissipation | 184 Btu/h |
| Operating altitude | 0…10000 ft |
Batteries & Runtime
| Battery type | Lead-acid battery |
| Extendable runtime | 1 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 245 W rated |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 33.000 cm |
| Package 1 Width | 59.500 cm |
| Package 1 Length | 64.500 cm |
| Package 1 Weight | 47.630 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 114.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 297.780 kg |
| Pallet unit layers | 2 |
| Pallet layers | 4 |
