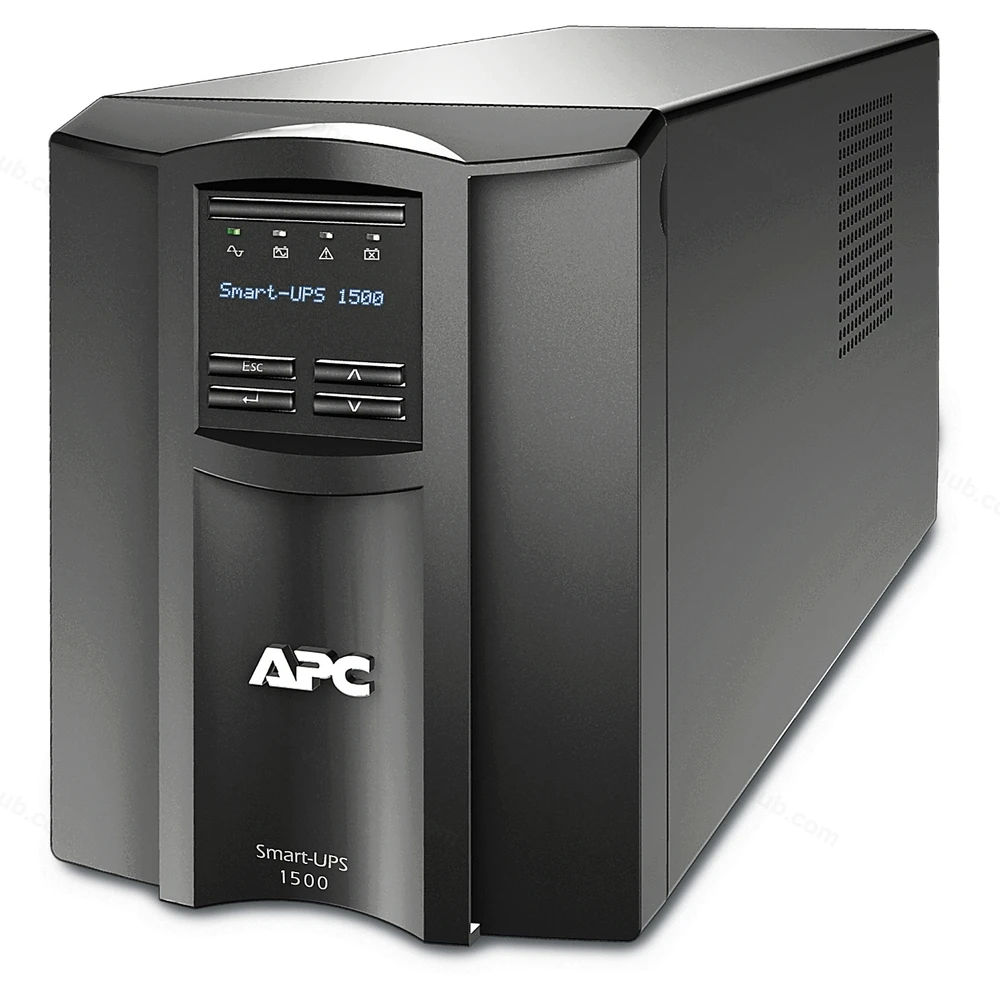

APC SMT1500IC Smart-UPS 1500VA LCD 230V with SmartConnect

APC SMT1500IC Smart-UPS, Line Interactive, 1500VA, Tower, 230V, 8x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD
Model: SMT1500IC

Warranty: 36 UPS|24 Battery

Download Datasheet

1500VA/1000W line interactive pure sine wave tower UPS. Ideal for servers, storage, network closets, business VoIP & desktops, retail POS.

Automatic Voltage Regulation helps correct utility voltage. Cloud-based remote power monitoring via SmartConnect Ethernet Port.

See the full APC Smart-UPS range for other capacities and form factors.

APC SMT1500IC Specifications

Batteries & Runtime

Battery type	Lead-acid battery
Extendable runtime	0
Included battery module	0
Empty battery slot	0
Typical recharge time	3 h
RBC quantity	1
Battery life	3…5 year(s)
Battery charging power	136 W rated

Environment

Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage relative humidity	0…95 %
Acoustic level	45 dBA
Heat dissipation	135 Btu/h
Operating altitude	0…10000 ft
Standard	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Product certification	CE, EAC, RCM, VDE, UK PSTI

General

Product or component type	Uninterruptible power supply (UPS)
Range of product	Smart-UPS
Redundant	No
Additional specification	Cloud-enabled monitoring
Additional information	Configurable for 220, 230 or 240 nominal output voltage
Number of power modules	0
Number of power module filled slots	0
Number of power module free slots	0
Provided equipment	Installation guide, USB cable

Physical

Mounting mode	Tower (Not rack-mountable)
Mounting preference	No preference
Mounting location	Front
Two post mountable	0
USB compatible	No
Product weight	24.09 kg
Depth	439 mm
Width	171 mm
Height	219 mm
Color	Black
Cable length	1.8 m
Number of cables	1

Communications & Management

UPS connectivity	Serial port, USB port, SmartConnect port, Available expansion slot
Free slot	1
Communication port support	SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Software package	SmartConnect software for remote power monitoring feature availability varies by terms of use
Control panel	Multifunction LCD status and control console
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating	459 J
Noise filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Output

Output voltage	230 V AC 1 phase
Other output voltage	220 V, 240 V
Rated power in W	1000 W
Rated power in VA	1500 VA
Output connection	8 IEC 320 C13, 2 IEC Jumpers
Harmonic distortion	Less than 5 %
Maximum configurable power in VA	1500 VA
Maximum configurable power in W	1000 W
Transfer time	6 ms typical : 10 ms maximum
UPS topology	Line interactive
Waveform type	Sine wave
Output frequency	50/60 Hz +/- 3 Hz sync to mains
Replacement battery	RBC7

Input

Main input voltage	230 V AC 1 phase
Other input voltage	220 V, 240 V
Input connection	IEC 320 C14
Efficiency at full load	151…302 V adjustable, 160…286 V
Input frequency	50/60 Hz +/- 3 Hz auto-sensing

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	32.800 cm
Package 1 Width	32.500 cm
Package 1 Length	59.000 cm
Package 1 Weight	26.718 kg
Unit Type of Package 2	P12
Number of Units in Package 2	12
Package 2 Height	112.500 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	332.616 kg
