APC AP8653 Rack PDU 2G Switched Plus 32A 230V

$3,799.00

APC AP8653 Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

💬 Check availability & delivery time — WhatsApp us before ordering.

SKU: AP8653 Category: Brand:

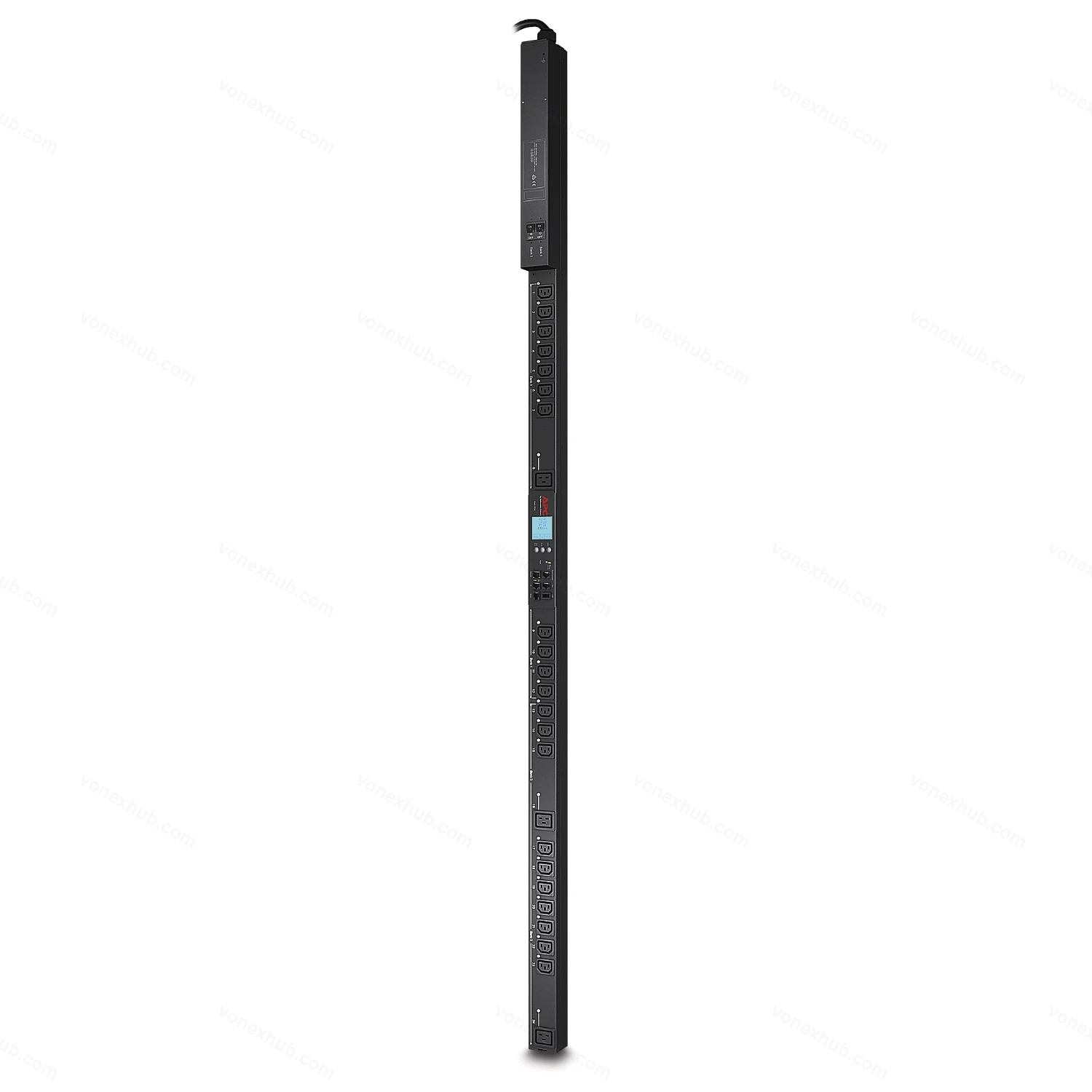

APC AP8653 NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 32A, 230V, 21 C13 and 3 C19 outlet
Model: AP8653

Warranty: 24 Months

Download Datasheet

Main

Colour Black
Product or component type PDU
PDU type Metered outlet
Cord length 2.9 m
Number of cables 1
Provided equipment CAN port terminator
Installation guide
Rack mounting brackets
Safety guide
Serial configuration cable

Complementary

Input Voltage 200 V
208 V
230 V
Height 1829 mm
Width 56 mm
Output Voltage 230 V
Depth 51 mm
Product weight 8.23 kg
Mounting location Side
Mounting preference No preference

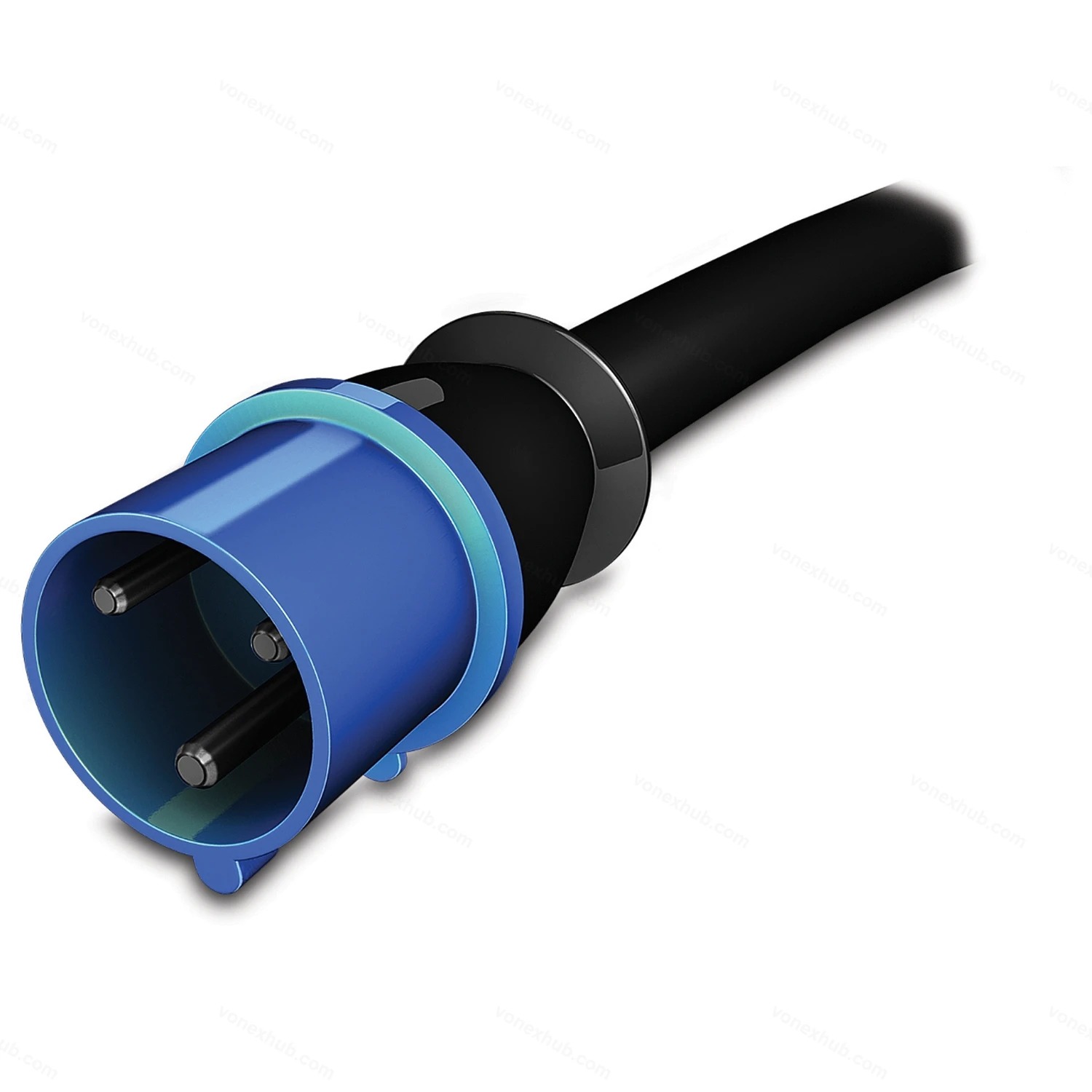

Input Plug Type IEC 60309 32 A 2P + E
Mounting mode Rack-mounted
Rack units 0U
USB compatible No
Mounting position Vertical
Permissible voltage 220…240 V
Max line current 32 A
Input current limits 32 A
Load capacity 7400 VA
Network frequency 50/60 Hz
Outlet type and quantity 21 IEC 60320 C13
3 IEC 60320 C19

Environment

Product certifications VDE
Standards EN 55022 class A
EN 55024
EN 61000-3-2
EN 61000-3-3
Ambient air temperature for operation -5…60 °C
Relative humidity 5…95 %
Operating altitude 0…10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0…15240 m

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 203.8 cm
Package 1 Width 16.2 cm
Package 1 Length 11.8 cm
Package 1 Weight 10.5 kg
Amperage

Outlet Count

Outlet Type

,

Rack Mountable
