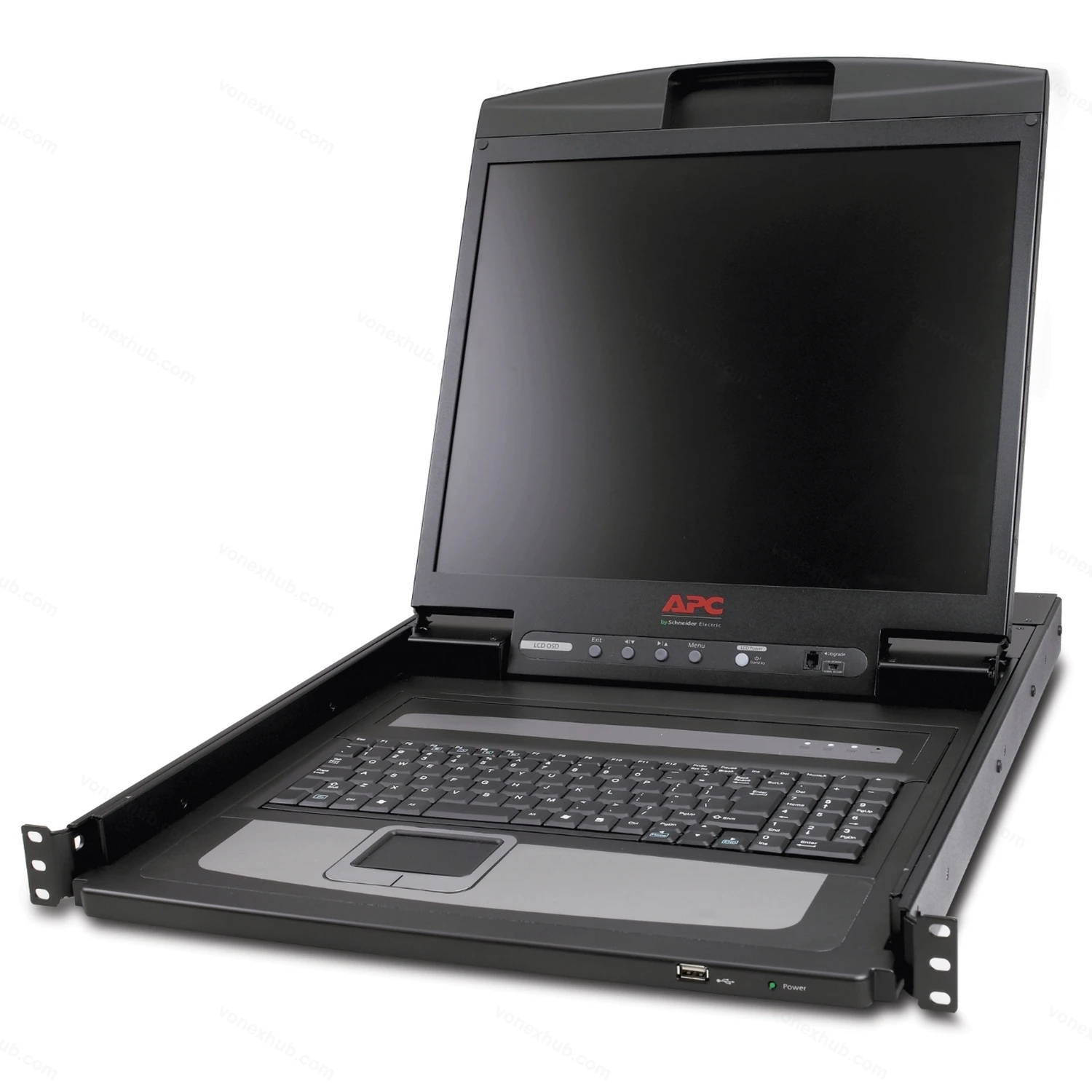

APC AP5719 19″ Rack LCD Console
Model: AP5719
Warranty: 24 months
Download Datasheet
The APC AP5719 is a 19″ Rack LCD Console that is 1U rack-mountable, featuring a keyboard, mouse, and LCD console with a US English keyboard layout. It supports input voltages of 100-240V and operates at 50 and 60 Hz. It is CE, VDE and TAA compliant.
- Features a 19-inch LCD monitor
- Occupies only 1U of rack space, conserving valuable space in the data center
- Compatible with Windows, Sun, Unix, and Linux systems, providing flexibility for various IT environments
- LCD provides a larger viewing area for improved visibility and ease of use
APC AP5719 Specifications
Main
| Main Input Voltage | 100 V 240 V |
|---|---|
| Number of rack unit | 1U |
| Provided equipment | C13-C14 power cord Documentation CD Firmware upgrade cable Installation guide NEMA 5-15 power cord PS2 KVM cable Rack mounting hardware Single user rack mount kit USB cable USB KVM cable |
| Product or component type | Console |
Physical
| Colour | Black |
|---|---|
| Height | 44 mm |
| Width | 482 mm |
| Depth | 665 mm |
| Product weight | 17.4 kg |
| Mounting location | Front Rear |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Maximum mounting depth | 1049.8 mm |
| Minimum mounting depth | 680 mm |
Input
| Network frequency | 50/60 Hz |
|---|
Conformance
| Product certifications | C-Tick CE Industry Canada KCC NOM UL listed VCCI class A VDE TAA compliance |
|---|---|
| Standards | EN 55022 class A EN 55024 EN 60950 FCC part 15 class A IEC 60950 |
Environmental
| Ambient air temperature for operation | 0…40 °C |
|---|
Supported Hardware
| Display size | 19 inch |
|---|---|
| Trackball type | PS/2 touchpad USB mouse |
| Display type | LCD display |
| Display power consumption | 19 W |
| Pixel size | 0.26 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.2 cm |
| Package 1 Width | 82.6 cm |
| Package 1 Length | 67.3 cm |
| Package 1 Weight | 20.99 kg |
Environmental Data
| Total lifecycle Carbon footprint | 61 kg CO2 eq. |
|---|---|
| EU RoHS Directive | Compliant By Exemption |
| Recyclability potential, in % | 95 |
